Goodrive880 Series Inverter Unit Hardware Manual
When transported with a forklift, the inverter unit must be fixed to the pallets and transported together,
which means you are not allowed to remove the pallets to transport the inverter unit. If the forklift's fork
tines are too short, it may cause the unit/cabinet to tip over, resulting in serious injury, property damage or
even death.
Note: When transported with a crane, the inverter unit must be fixed to the pallets and lifted together.

3.3.3 Unpacking

The unit is delivered in the wooden box padded with EPE.
To remove the packing, do as follows:
Step 1 Place the well-packed unit in an empty and flat place.
Step 2 Use tools such as a pry bar or large one-piece screwdriver to remove the wooden box cover and the
steel tongue nails of the surrounding boards.
Step 3 Remove the surrounding boards and EPE filling materials from the wooden box.
Step 4 Cut off the plastic windings.
Step 5 Take out of the unit.
Step 6 Ensure that the unit is intact without any damage.
Note: Dispose of or recycle packaging in accordance with local regulations.
202311 (V1.0)

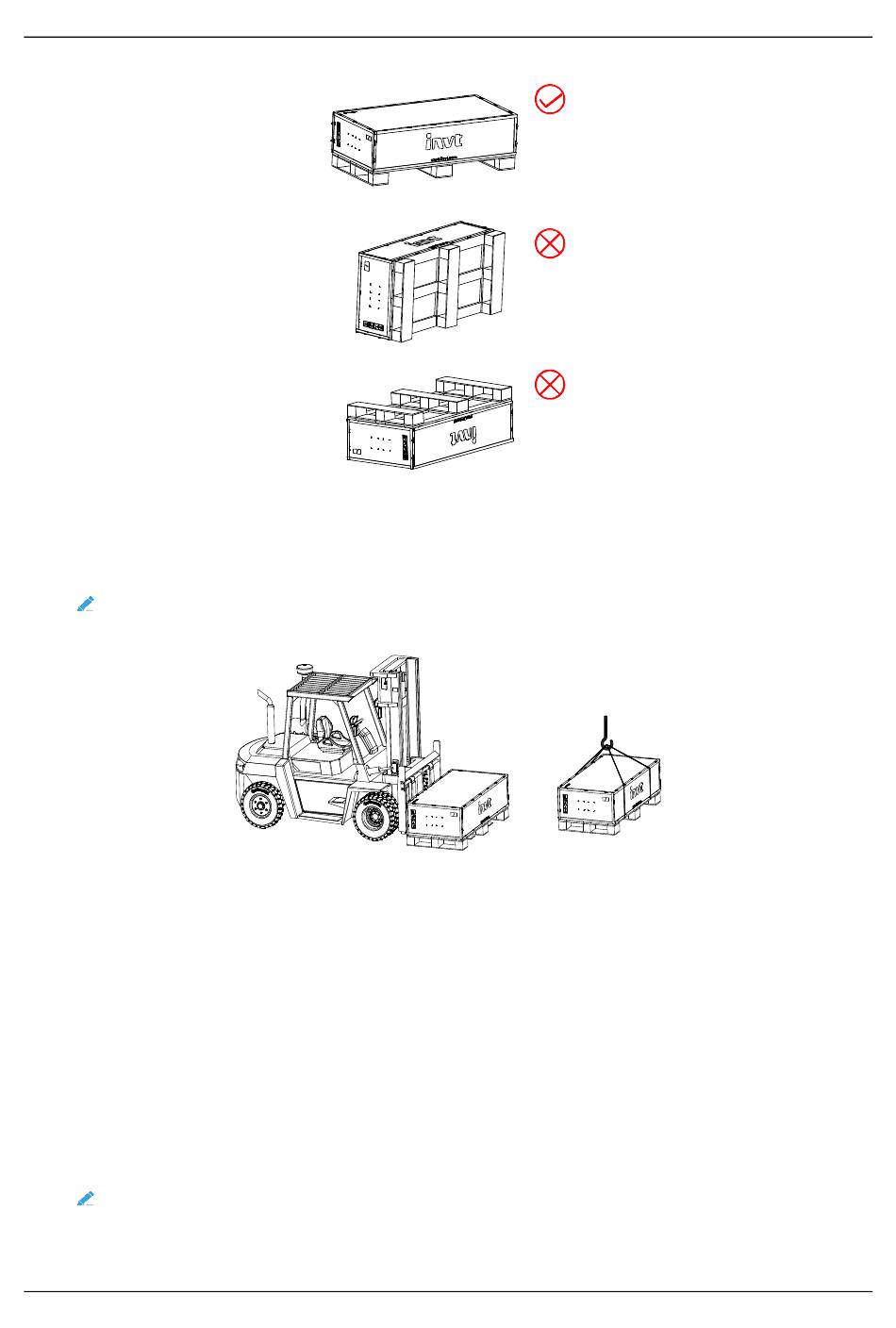

Figure 3-1 Transportation requirements
Figure 3-2 Transportation means
Mechanical installation
27
