Goodrive880 Series Active Rectifier Hardware Manual
Environ
ment
Vibration

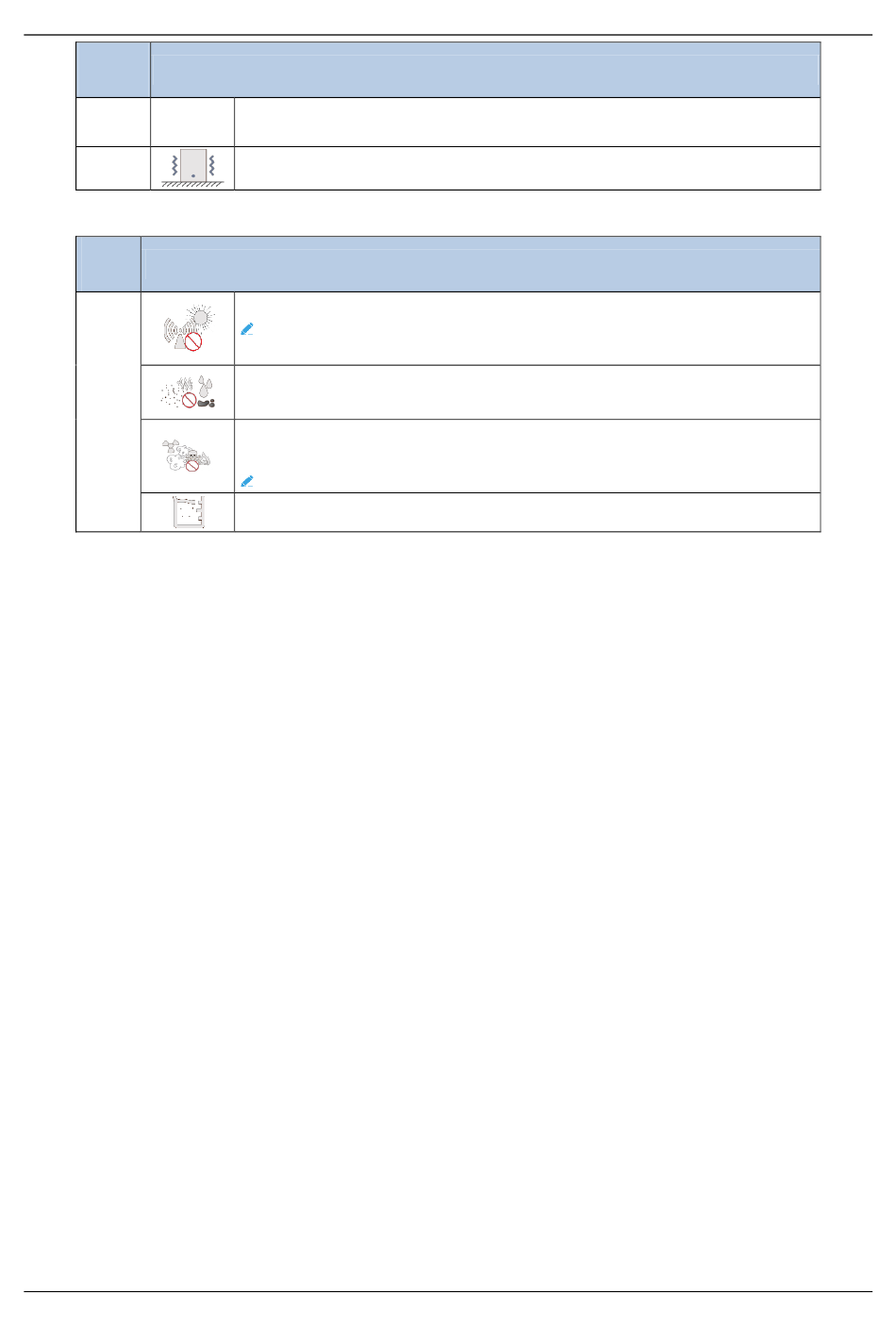

Location requirement

Locati
on
Indoor

3.3 Installation procedure

The installation procedures are as follows:
Step 1 Perform unpacking inspection. For details, see section 3.3.1 Unpacking inspection.
Step 2 Transport before unpacking. For details, see section 3.3.2 Transportation.
Step 3 Unpack. For details, see section 3.3.3 Unpacking.
Step 4 Lift the modules. For details, see section 3.3.4 Lifting.
Step 5 Install the modules. For details, see section 3.3.5 Installation space and heat dissipation.

3.3.1 Unpacking inspection

After receiving the product, perform the following steps to ensure the product use safety.
1. Before unpacking, check whether the product package is intact–whether the package is damaged,
dampened, soaked, or deformed.
2. Check whether the nameplate and label on the product body are consistent with the model ordered.
3. After unpacking, check whether the interior surface of the packing box is abnormal, for example, in wet
condition, and whether the equipment enclosure is damaged or cracked.
4. Check whether the parts (including the complete equipment of active rectifier, keypad, and manual)
inside the packing box are complete.

3.3.2 Transportation

The GD880 series active rectifier is shipped in a wooden box with pallets, which are heavy as a whole and
must be carried with a lifting tool, such as a forklift and crane; operators must be professionally trained; the
regenerative rectifier must be transported in strict accordance with the allowed ways marked on the box,
and not allowed to be transported upside down or on the sides.
202401 (V1.0)
When the altitude exceeds 3000m, consult our local dealer or office for

details.
Max. vibration ACC: 5.8m/s
Without electromagnetic radiation sources and direct sunlight.
Note: The VFD must be installed in a clean and well-ventilated environment
based on the housing IP rating.
Without foreign objects such as oil mist, metal powder, conductive dust, and
water.
Without radioactive, corrosive, hazard, and combustible and explosive
substances.
Note: Do not install the VFD onto combustible objects.
With low salt content
Requirement
(0.6g)
2
Requirement
Mechanical installation
