3.3 Installation procedure

The installation procedure is as follows:
Step 1 Perform unpacking inspection. For details, see section 3.3.1.
Step 2 Transport before unpacking. For details, see section 3.3.2.
Step 3 Unpack. For details, see section 3.3.3.
Step 4 Lift the modules. For details, see section 3.3.4.
Step 5 Install the modules. For details, see section 3.3.5.

3.3.1 Unpacking inspection

After receiving the product, perform the following steps to ensure the product use safety.
1. Before unpacking, check whether the product package is intact–whether the package is damaged,
dampened, soaked, or deformed.
2. Check whether the nameplate and label on the product body are consistent with the model ordered.
3. After unpacking, check whether the interior surface of the packing box is abnormal, for example, in wet
202212 (V1.0)

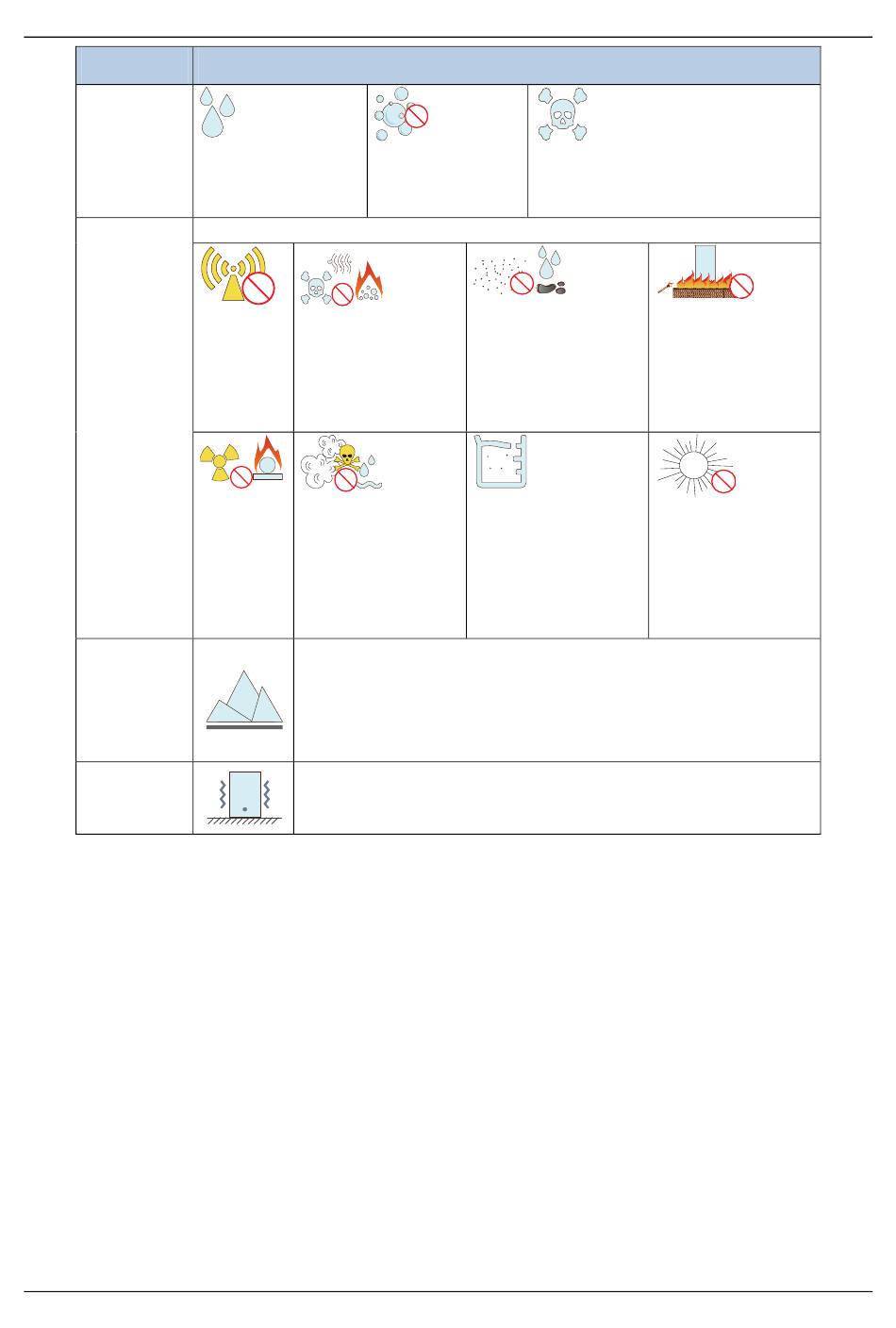

RH: less than 90%
Install the inverter unit in a place:
Away from Away from oil mist,
electromag corrosive gases, or
netic combustible gases
radiation
sources
Without
Without hazard gases
radioactive
and liquids
substances
or
combustibl
e objects
Lower than 1000 meters

When the altitude exceeds 1000m, derate by 1% for every

additional 100m.
When the installation site altitude exceeds 3000m, consult the

local INVT dealer or office.
The max. ACC speed cannot exceed 5.8m/s
Condition
Condensation is not The max. RH cannot exceed 60% in
allowed. the environment where there are
corrosive gases.
Without the chance for
foreign objects such as
metal powder, dust, oil
and water to fall into
the inverter unit
With low salt content
Mechanical installation
Do not install the
inverter unit onto
combustible objects.
Without direct
sunlight
(0.6g).
