Data Movement Instructions
3-8-9

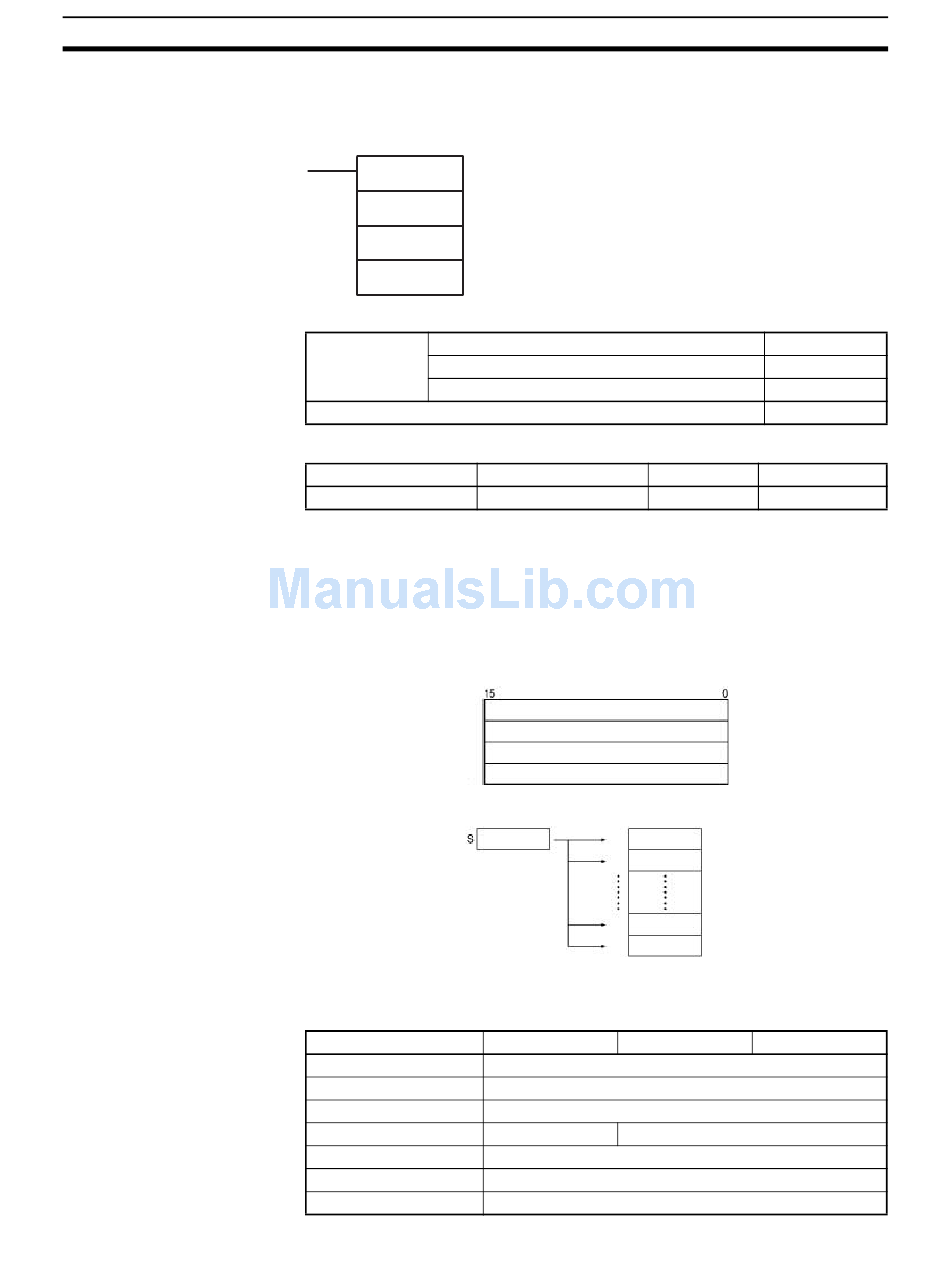

BLOCK SET: BSET(071)

Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operands
Operand Specifications
348
Copies the same word to a range of consecutive words.
BSET(071)
S
St
E
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification
Block program areas
OK
S: Source Word
Specifies the source data or the word containing the source data.
St: Starting Word
Specifies the first word in the destination range.
E: End Word
Specifies the last word in the destination range.
Note St and E must be in the same data area.
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
S: Source word
St: Starting word
E: End word
Step program areas
OK
St
to
E
Source data Destination range
St
E
S
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A000 to A959 A448 to A959
T0000 to T4095
C0000 to C4095
D00000 to D32767
Section 3-8
BSET(071)
@BSET(071)
Not supported
Subroutines Interrupt tasks
OK OK
St E
