Conditional Jump: Cjp(510)/Cjpn(511 - Omron SYSMAC CJ - REFERENCE MANUAL 01-2008 Reference Manual

Sequence Control Instructions
3-5-7

CONDITIONAL JUMP: CJP(510)/CJPN(511)

Purpose
Ladder Symbols
Variations
232

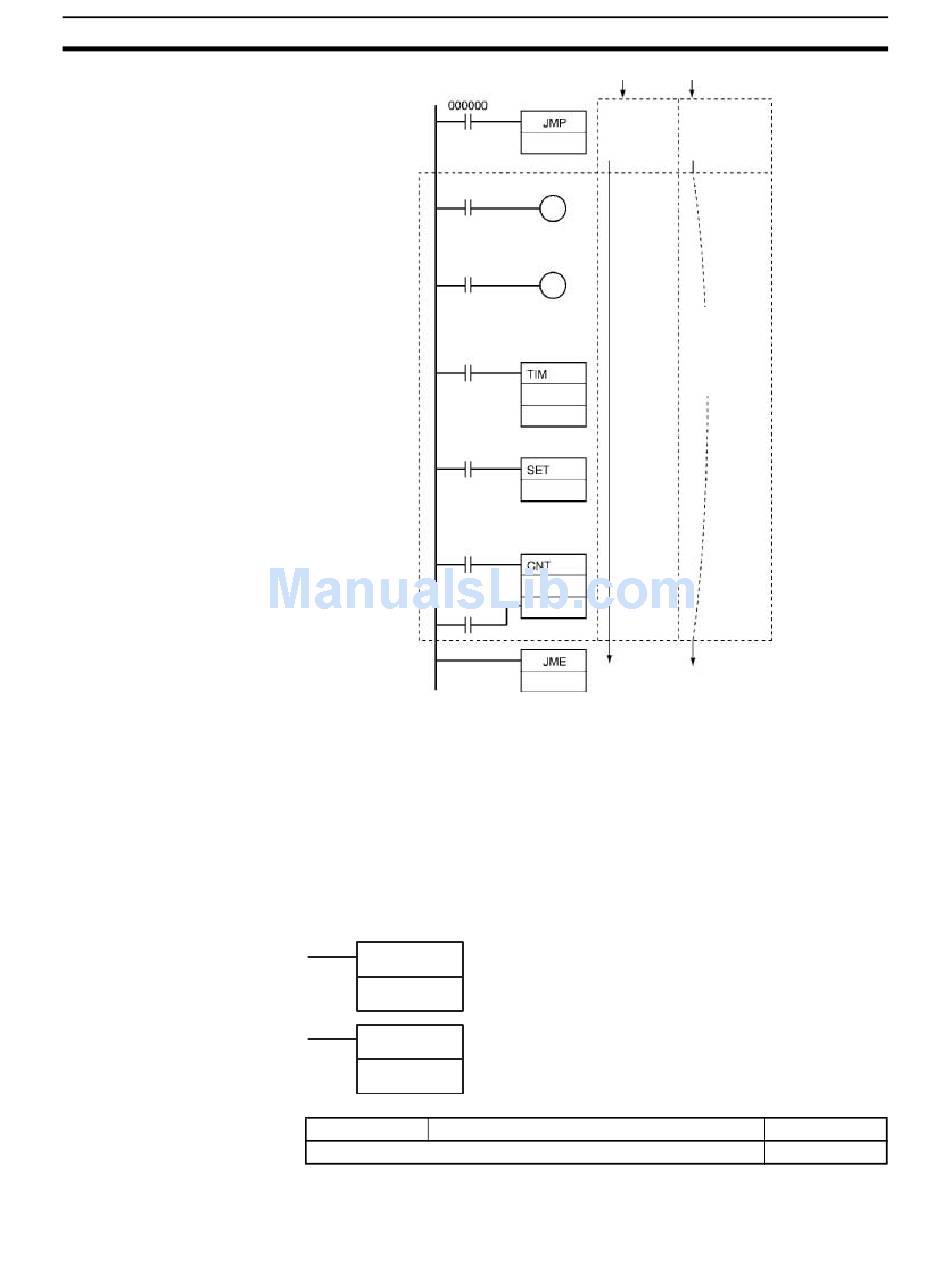

The operation of CJP(510) is the basically the opposite of JMP(004). When
the execution condition for CJP(510) is ON, program execution jumps directly
to the first JME(005) in the program with the same jump number. CJP(510)
and JME(005) are used in pairs.
The operation of CJPN(511) is almost identical to JMP(004). When the execu-
tion condition for CJP(004) is OFF, program execution jumps directly to the
first JME(005) in the program with the same jump number. CJPN(511) and
JME(005) are used in pairs.
CJP(510)
N
CJPN(511)
N
Variations Jumps when ON/Does Not Jump when OFF
Immediate Refreshing Specification
CIO 000000
ON
&1
Normal
execution
&1
N: Jump number
N: Jump number
Section 3-5
CIO 000000
OFF
Instructions
not executed.
(Outputs re-
main un-
changed.)
CJP(510)
Not supported
