Sequence Control Instructions

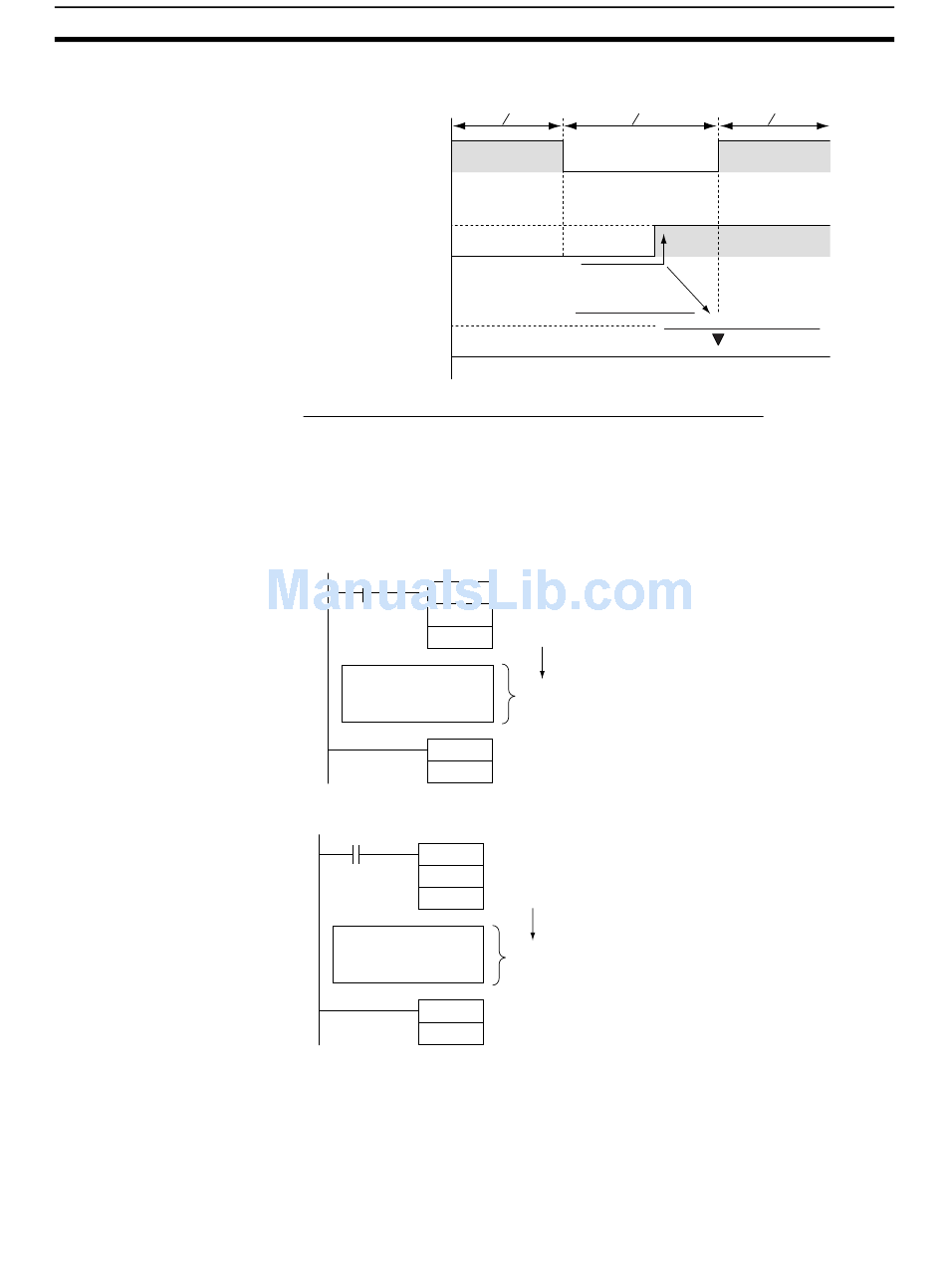

Timing Chart
000000
000001
001000
Controlling Interlock Status from a Programming Device
An interlock can be engaged or released manually by force-resetting or force-
setting the Interlock Status Bit (specified with operand D of MILH(517) and
MILR(518)) from a Programming Device. The forced status of the Interlock
Status Bit has priority and overrides the interlock status calculated by program
execution.
Force-set: Releases the interlock.
OFF
Program section
controlled by interlock
Force-reset: Engages the interlock.
ON
Program section
controlled by interlock
Note Program operation can be switched more efficiently by using interlocks with
MILH(517) or MILR(518).
Instead of switching processing with compound conditions, insert an
MILH(517) or MILR(518) instruction before each process and an MILC(519)
instruction after each process.
Not interlocked
ON
OFF
ON
OFF
OFF
MILR(518) interlock
ON
OFF
MILH
n
010000
CIO 010000 is OFF when the interlock is engaged.
If CIO 010000 is force-set (ON), the interlock is released.
MILC
n
MILH
n
010000
CIO 010000 is ON when the interlock is not engaged.
If CIO 010000 is force-reset (OFF), the interlock is engaged.
MILC
n
Section 3-5
Interlocked Not interlocked
ON
DIFU(013) is not executed.
