Floating-point Math Instructions
Description
Flags
Area
Index Registers
Indirect addressing
using Index Registers
ASIN(463) computes the angle (in radians) for a sine value expressed as a
32-bit floating-point number in S+1 and S and places the result in R+1 and R.
(The floating point source data must be in IEEE754 format.)
–1
S+1
SIN
R+1
The source data must be between –1.0 and 1.0. If the absolute value of the
source data exceeds 1.0, an error will occur and the instruction will not be
executed.
The result is output to words R+1 and R as an angle (in radians) within the
range of – /2 to /2.

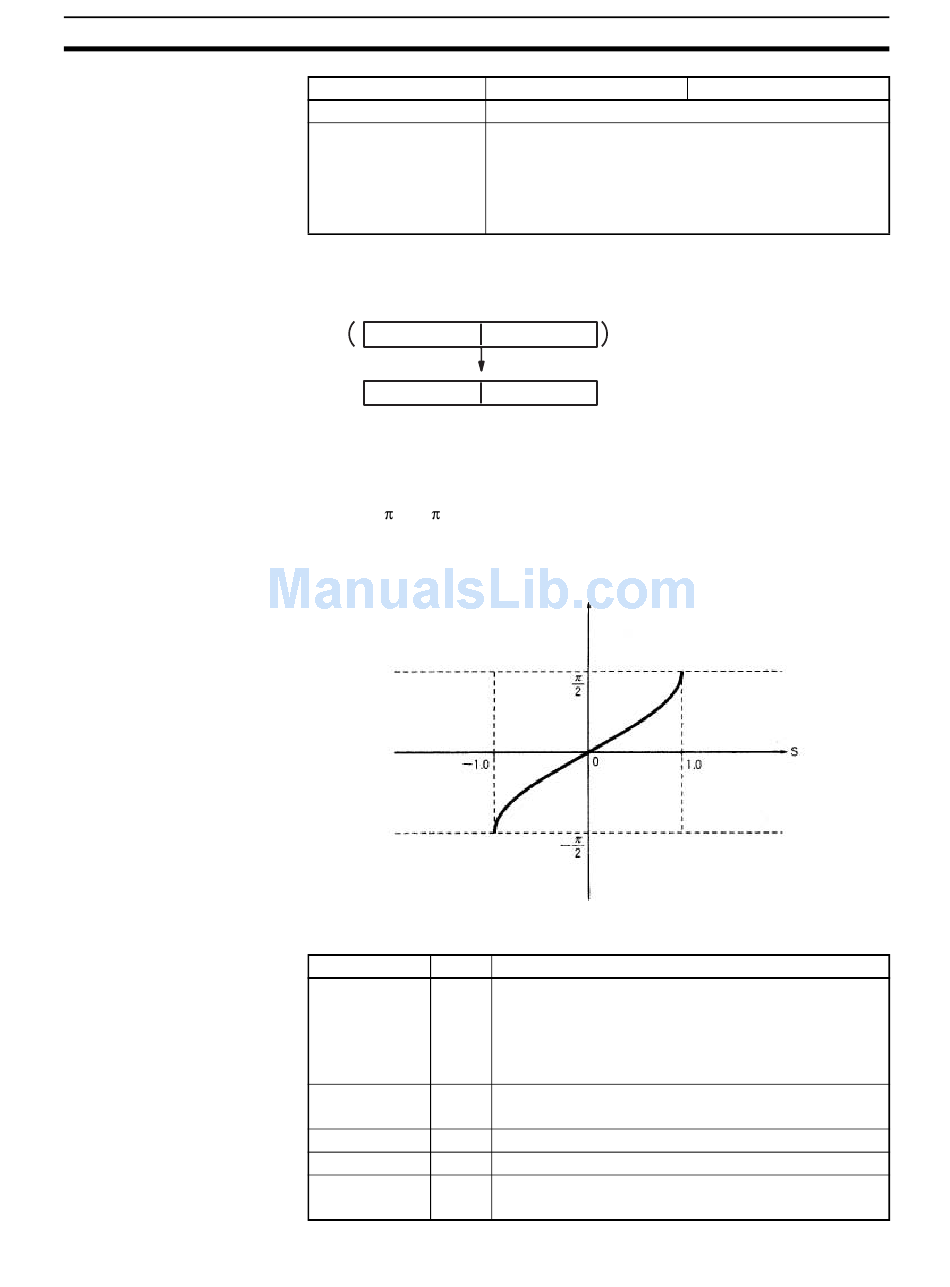

The following diagram shows the relationship between the input data and
result.
Name Label
Error Flag ER
Equals Flag =
Overflow Flag OF
Underflow Flag UF
Negative Flag N
S
---
,IR0 to ,IR15
–2048 to +2047 ,IR0 to –2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Source (32-bit floating-point data)
S
Result (32-bit floating-point data)
R
R
S: Input data (sine value)
R: Result (radians)
Operation
ON if the source data is not recognized as floating-point
data.
ON if the source data is not a number (NaN).
ON if the absolute value of the source data exceeds 1.0.
OFF in all other cases.
ON if both the exponent and mantissa of the result are 0.
OFF in all other cases.
OFF
OFF
ON if the result is negative.
OFF in all other cases.
Section 3-15
R
625
