Floating-point Math Instructions

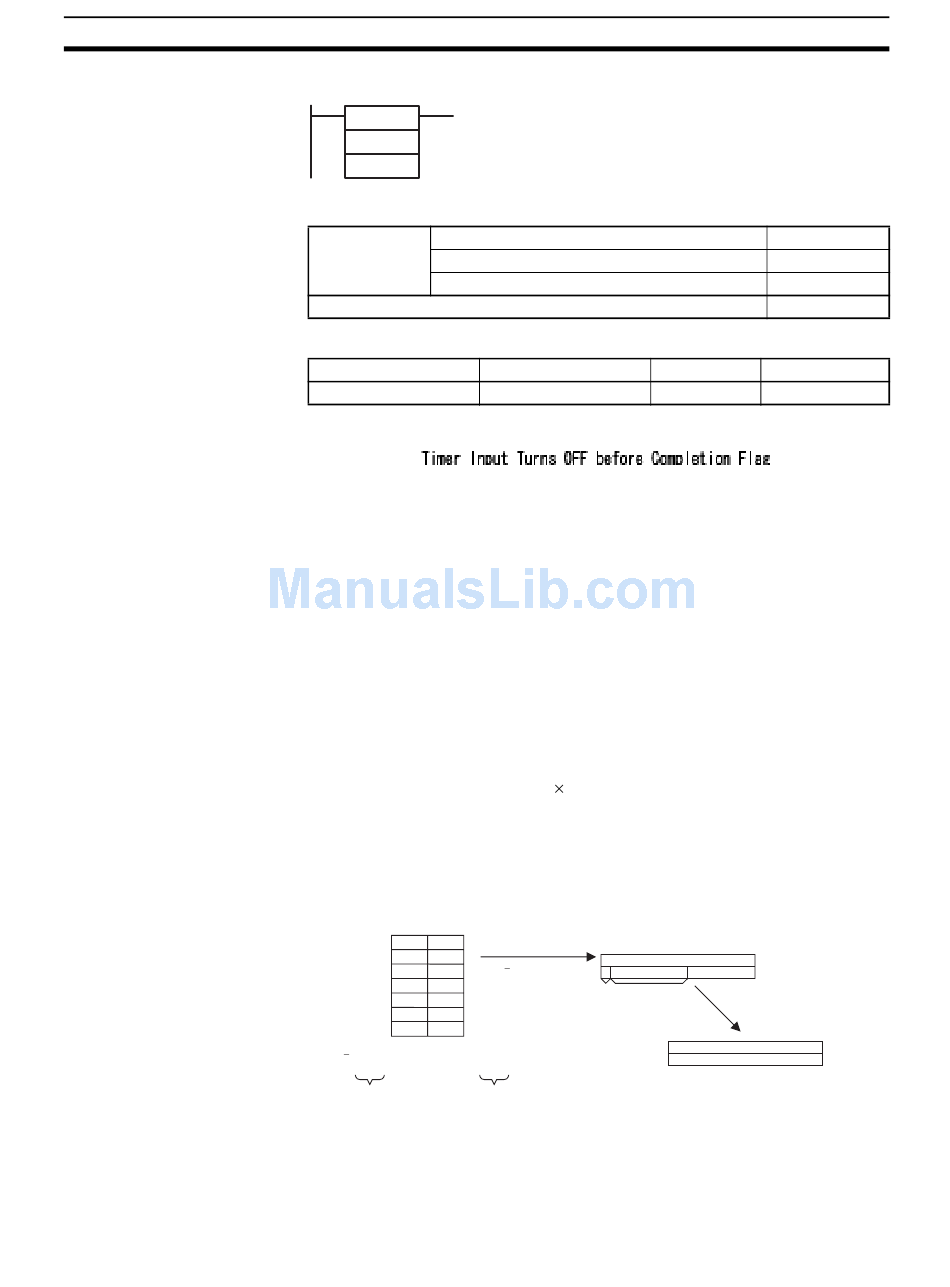

Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
Description
FVAL(449)
S: First source word
S
D: First destination word
D
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification
Block program areas
OK OK
FVAL(449) converts the specified ASCII text number (starting at word S) to a
32-bit floating-point number (IEEE754-format) and outputs the result to the
destination words starting at D.
FVAL(449) can convert ASCII text in decimal or scientific notation if it meets
the following conditions:
Up to 6 characters are valid, excluding the sign, decimal point, and exponent.
Any characters beyond the 6th character will be ignored.
• Decimal Notation
Real numbers expressed with an integer and fractional part.
Example: 124.56
• Scientific Notation
Real numbers expressed as an integer part, fractional part, and exponent
part.
Example: 1.2456E-2 (1.2456 10
The data format (decimal or scientific notation) is detected automatically.
The ASCII text must be stored in S and subsequent words in the following
order: leftmost byte of S, rightmost byte of S, leftmost byte of S+1, rightmost
byte of S+1, etc.
Decimal notation
Conversion of ASCII text number to
15 87 0
32-bit floating-point data
2D 20
20 31
32 33
2E 34
35 36
37 38
00 00
SP SP 1 2 3 . 4 5 6 7 8
(2D)(20)(20)(31)(32)(33)(2E)(34)(35)(36)(37)(38)
If there are more than 6 digits, the 7th
Spaces are
and higher digits are ignored.
ignored during
(Digits do not include the sign, decimal
conversion
point, and exponent characters.)
Step program areas Subroutines
OK
-2
)
32-bit floating-point data
1 1 1 0 1 0 0 1 0 1 1 1 1 0 0 1
123.456
1 1 0 0 0 0 1 0 1 1 1 1 0 1 1 0
Sign Exponent
15
D 1 1 1 0 1 0 0 1 0 1 1 1 1 0 0 1
D+1 1 1 0 0 0 0 1 0 1 1 1 1 0 1 1 0
Section 3-15
FVAL(449)
@FVAL(449)
Not supported.
Interrupt tasks
OK
Stored in D and D+1.
0
647
