Sequence Output Instructions
Description
Flags
Precautions

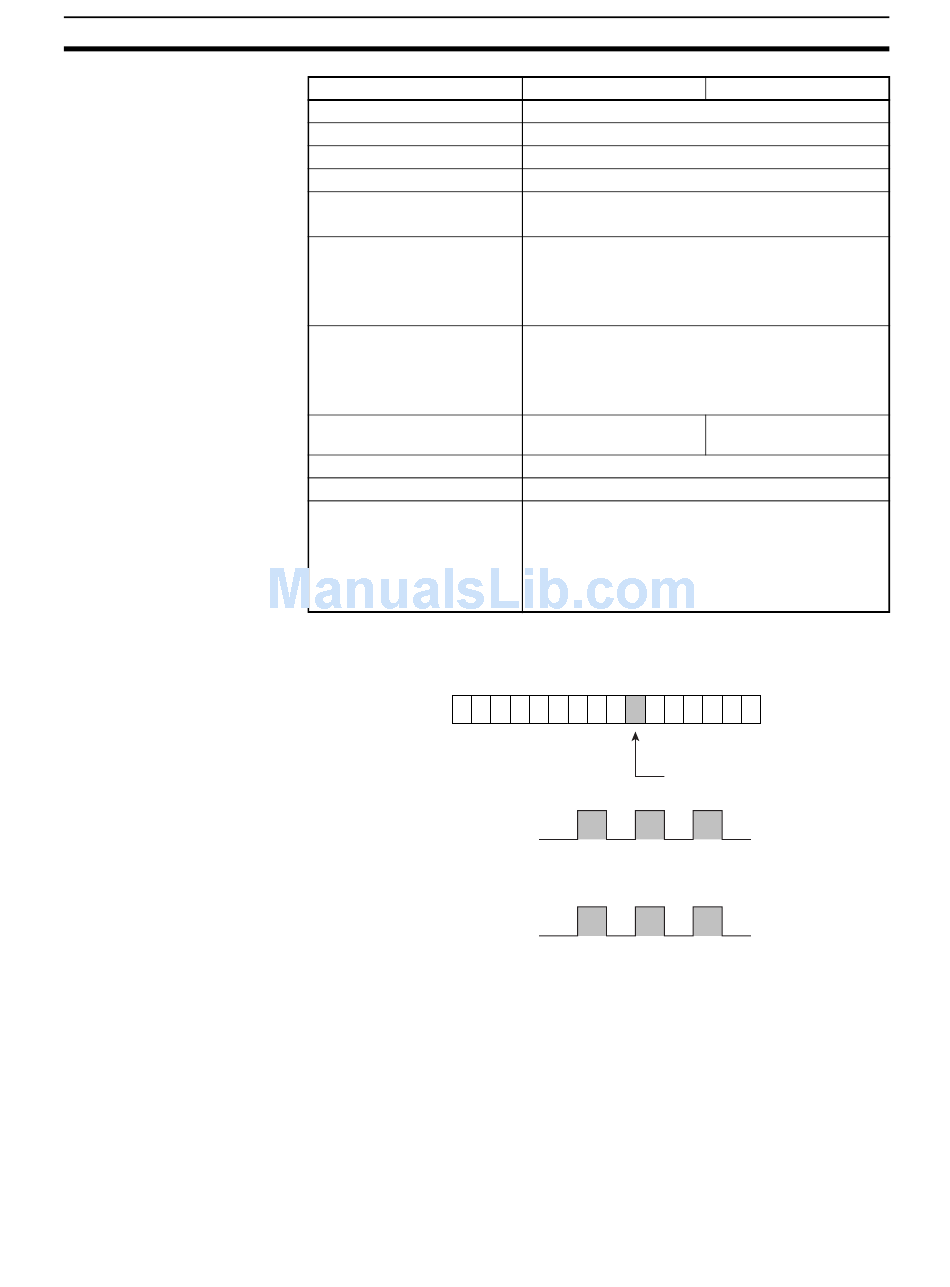

Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM addresses in
binary
Indirect DM/EM addresses in
BCD
Constants
Data Registers
Index Registers
Indirect addressing using
Index Registers
When the execution condition is ON, OUTB(534) turns ON bit N of word D.
When the execution condition is OFF, OUTB(534) turns OFF bit N of word D.
15
D
Execution condition
Bit N of word D
If the immediate refreshing version is not used, the status of the execution
condition (power flow) is written to the specified bit in I/O memory. If the imme-
diate refreshing version is used, the status of the execution condition (power
flow) is written to the Basic Output Unit's output terminal as well as the output
bit in I/O memory.
OUTB(534) is supported by CS1-H, CJ1-H, and CJ1M CPU Units only.
There are no flags affected by this instruction.
Immediate refreshing (!OUTB(534)) can be specified. An immediate refresh
instruction updates the status of the output terminal just after the instruction is
executed on an output bit allocated to a Basic Output Unit (but not for C200H
Group 2 Multi-point Output Units or Basic Output Units on Slave Racks), at
D
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
---
DR0 to DR15
---
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –) IR0 to, –(– –) IR15
N
This bit is turned OFF.
ON
OFF
ON
OFF
Section 3-4
N
#0000 to #000F (binary)
or &0 to &15
