Sequence Control Instructions

Overview of Interlock Instructions

Interlock Instructions

Differences between

Interlocks and Multiple

NOP(000) can only be used with mnemonic displays, not with ladder pro-

The following instruction combinations can be used to interlock outputs in a

program section.

• INTERLOCK and INTERLOCK CLEAR (IL(002) and IL(003))

• MULTI-INTERLOCK DIFFERENTIATION HOLD and MULTI-INTERLOCK

CLEAR (MILH(517) and MILC(519))*

Note MILH(517) holds the status of the Differentiation Flag, so differentiat-

ed instructions that were interlocked are executed after the interlock

• MULTI-INTERLOCK DIFFERENTIATION RELEASE and MULTI-INTER-

LOCK CLEAR (MILR(518) and MILC(519))*

Note MILR(518) does not hold the status of the Differentiation Flag, so dif-

ferentiated instructions that were interlocked are not executed after

the interlock is cleared.

* These instructions are supported only by CS/CJ-series CPU Unit Ver. 2.0

Regular interlocks (IL(002) and IL(003)) cannot be nested, but multiple inter-

locks (MILH(517), MILR(518), and MILC(519)) can be nested. Ladder pro-

gramming can be simplified by nesting multiple interlocks, as shown in the

following diagram.

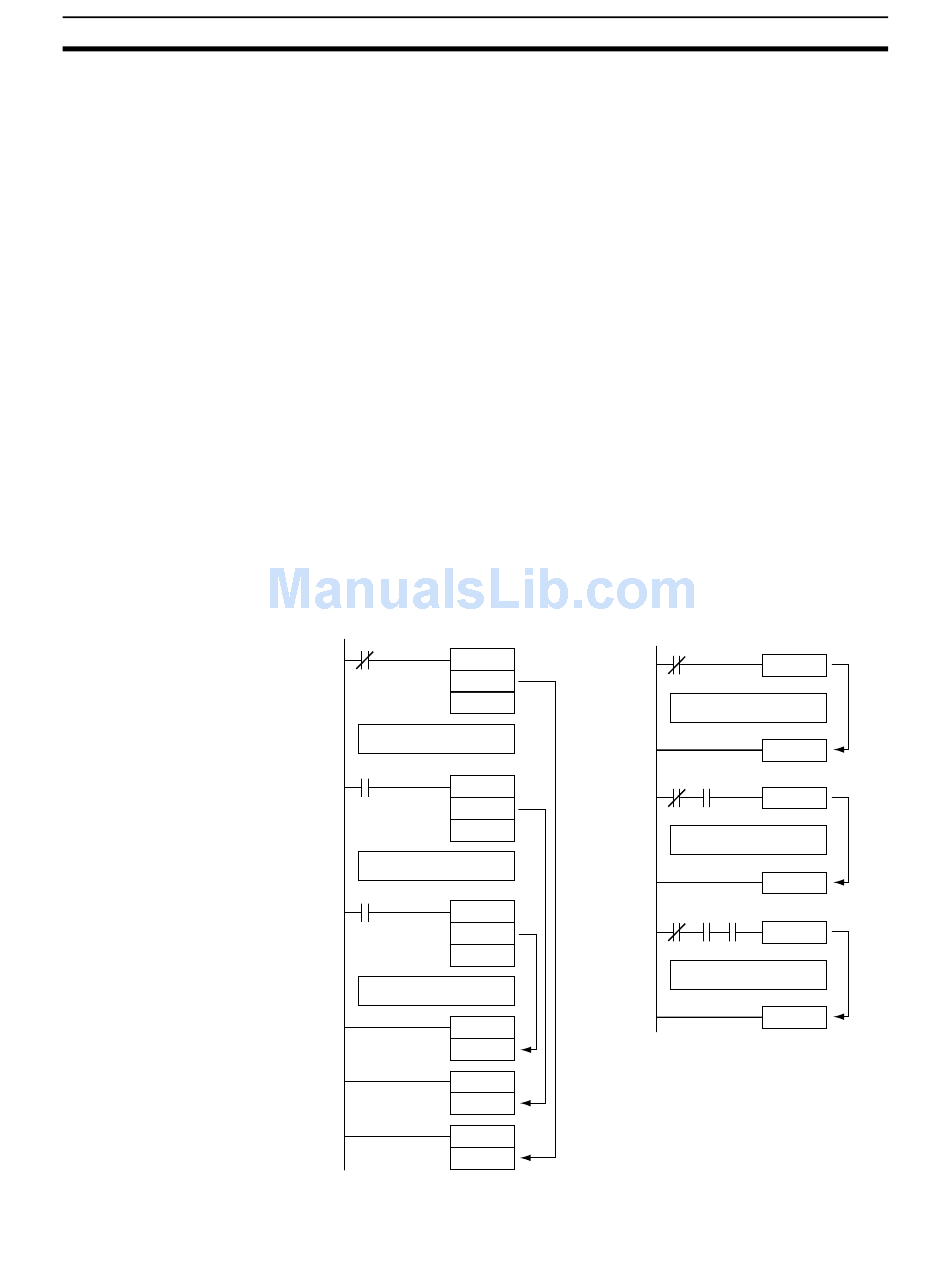

Interlocks with MILH and MILC

Interlocks with IL and ILC
