Unsigned Binary Divide: /U(432) - Omron SYSMAC CJ - REFERENCE MANUAL 01-2008 Reference Manual

Symbol Math Instructions

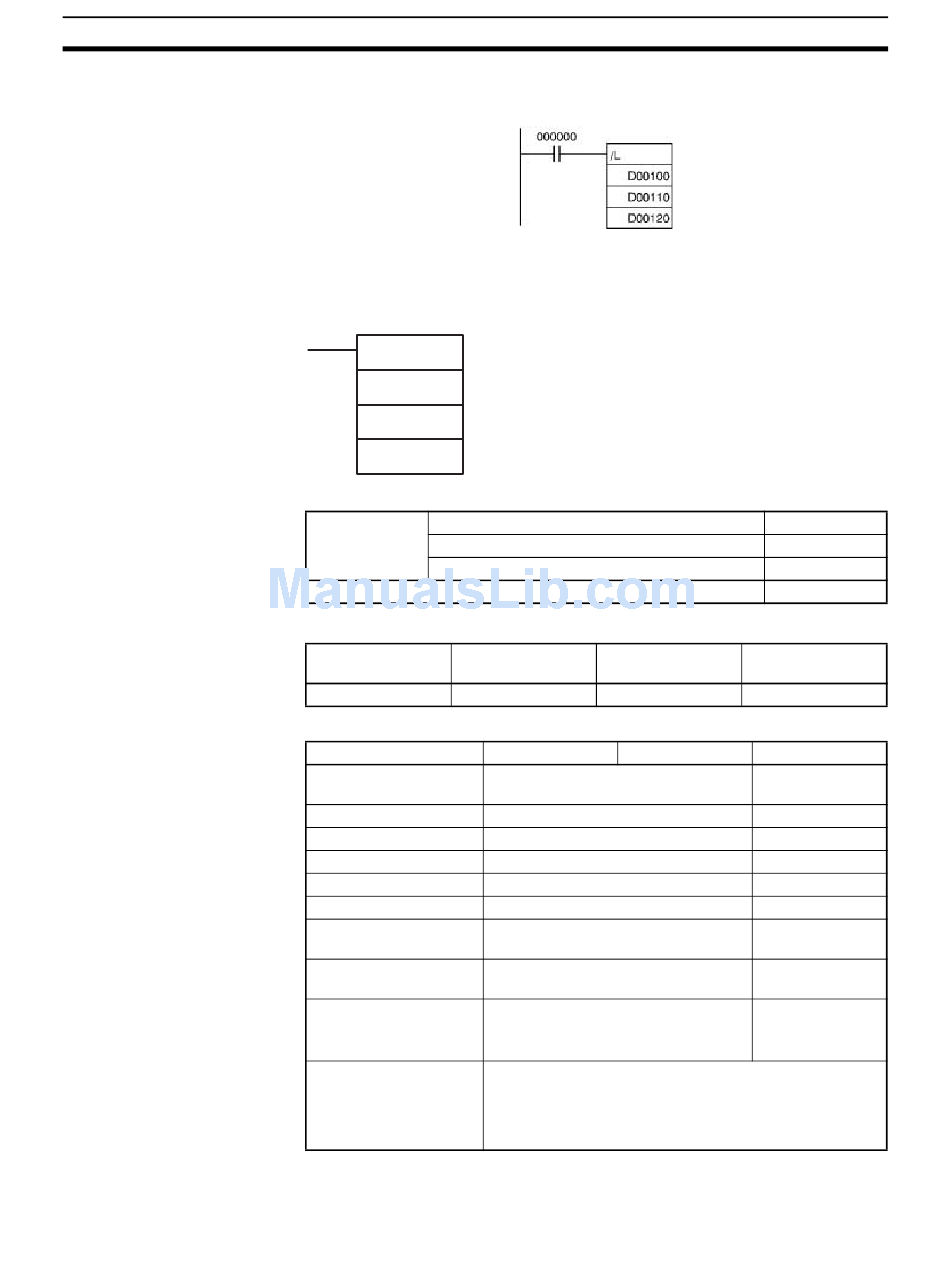

3-11-25 UNSIGNED BINARY DIVIDE: /U(432)

Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications
476
quotient will be output to D00121 and D00120 and the remainder to D00123
and D00122.
Divides 4-digit (single-word) unsigned hexadecimal data and/or constants.
/U(432)
Dd Dd: Dividend word
Dr: Divisor word
Dr
R: Result word
R
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported.
Immediate Refreshing Specification
Block program Step program
areas
OK OK
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Subroutines
areas
OK
Dd
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A000 to A959
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Section 3-11
/U(432)
@/U(432)
Not supported.
Interrupt tasks
OK
Dr R
CIO 0000 to
CIO 6142
W000 to W510
H000 to H510
A448 to A958
T0000 to T4094
C0000 to C4094
D00000 to
D32766
E00000 to
E32766
En_00000 to
En_32766
(n = 0 to C)
