Data Movement Instructions
Example
3-8-4

DOUBLE MOVE NOT: MVNL(499)

Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operand Specifications

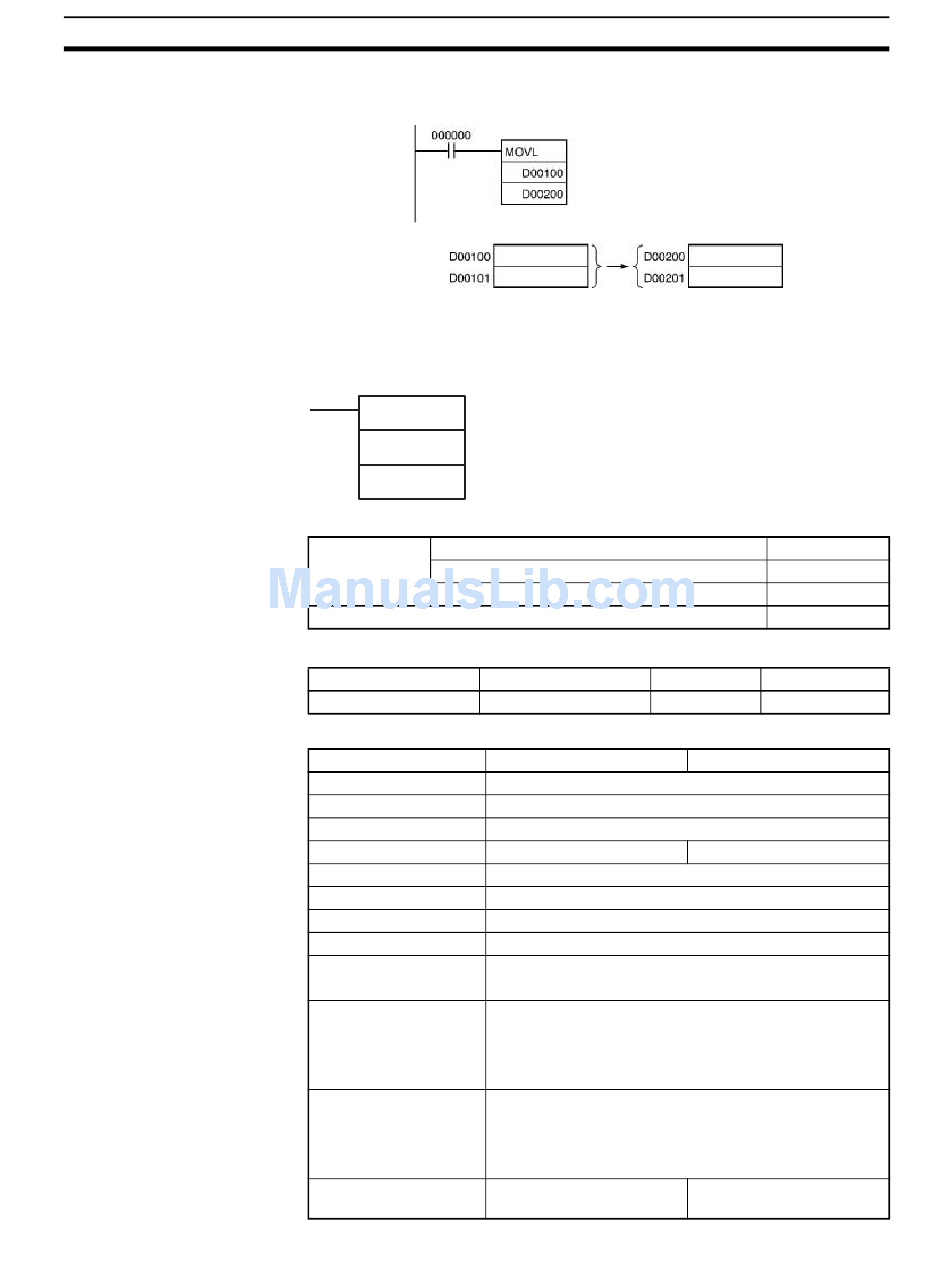

When CIO 000000 is ON in the following example, the content of D00101 and
D00100 are copied to D00201 and D00200.
Transfers the complement of two words of data to the specified words.
MVNL(499)
S
D
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification
Block program areas
OK OK
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
S: First source word
D: First destination word
Step program areas Subroutines
OK
S
CIO 0000 to CIO 6142
W000 to W510
H000 to H510
A000 to A958
T0000 to T4094
C0000 to C4094
D00000 to D32766
E00000 to E32766
En_00000 to En_32766
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
#00000000 to #FFFFFFFF
(binary)
Section 3-8
MVNL(499)
@MVNL(499)
Not supported
Interrupt tasks
OK
D
A448 to A958
---
337
