Conversion Instructions

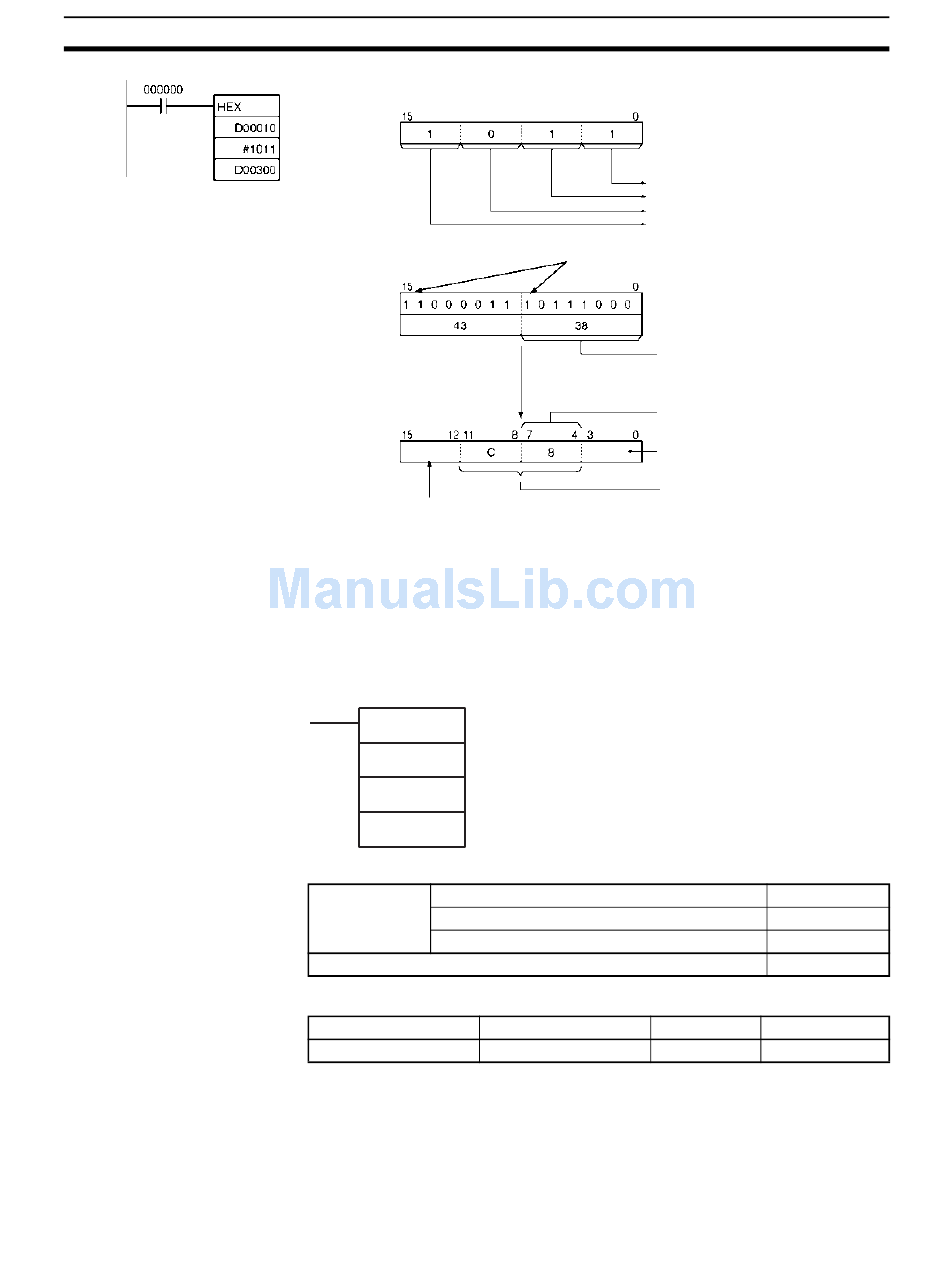

3-12-12 COLUMN TO LINE: LINE(063)

Purpose
Ladder Symbol
Variations
Applicable Program Areas
Operands
Parity bits: Result in even parity
S: D00100
D: D00300
Not changed
With CPU Units with unit version 4.0 of later, there are instructions to convert
ASCII to 4, 8, and 16 digits of numeric data (NUM4(517), NUM8(520), and
NUM16(522)).
Converts a column of bits from a 16-word range (the same bit number in 16
consecutive words) to the 16 bits of the destination word.
LINE(063)
S
N
D
Variations Executed Each Cycle for ON Condition
Executed Once for Upward Differentiation
Executed Once for Downward Differentiation Not supported
Immediate Refreshing Specification
Block program areas
OK OK
S: First Source Word
Specifies the first source word. S and S+15 must be in the same data area.
N: Bit Number
Specifies the bit number (0000 to 000F or &0 to &15) to be copied from the
source words.
Starting digit in D: Digit 1
Number of bytes: 2
Starting byte in S: Rightmost
Parity: Even
Starting byte: rightmost
Conversion
Starting digit (digit 1)
Not changed
Number of bytes (2 bytes)
S: First source word
N: Bit number
D: Destination word
Step program areas Subroutines
OK
Section 3-12
LINE(063)
@LINE(063)
Not supported
Interrupt tasks
OK
513
