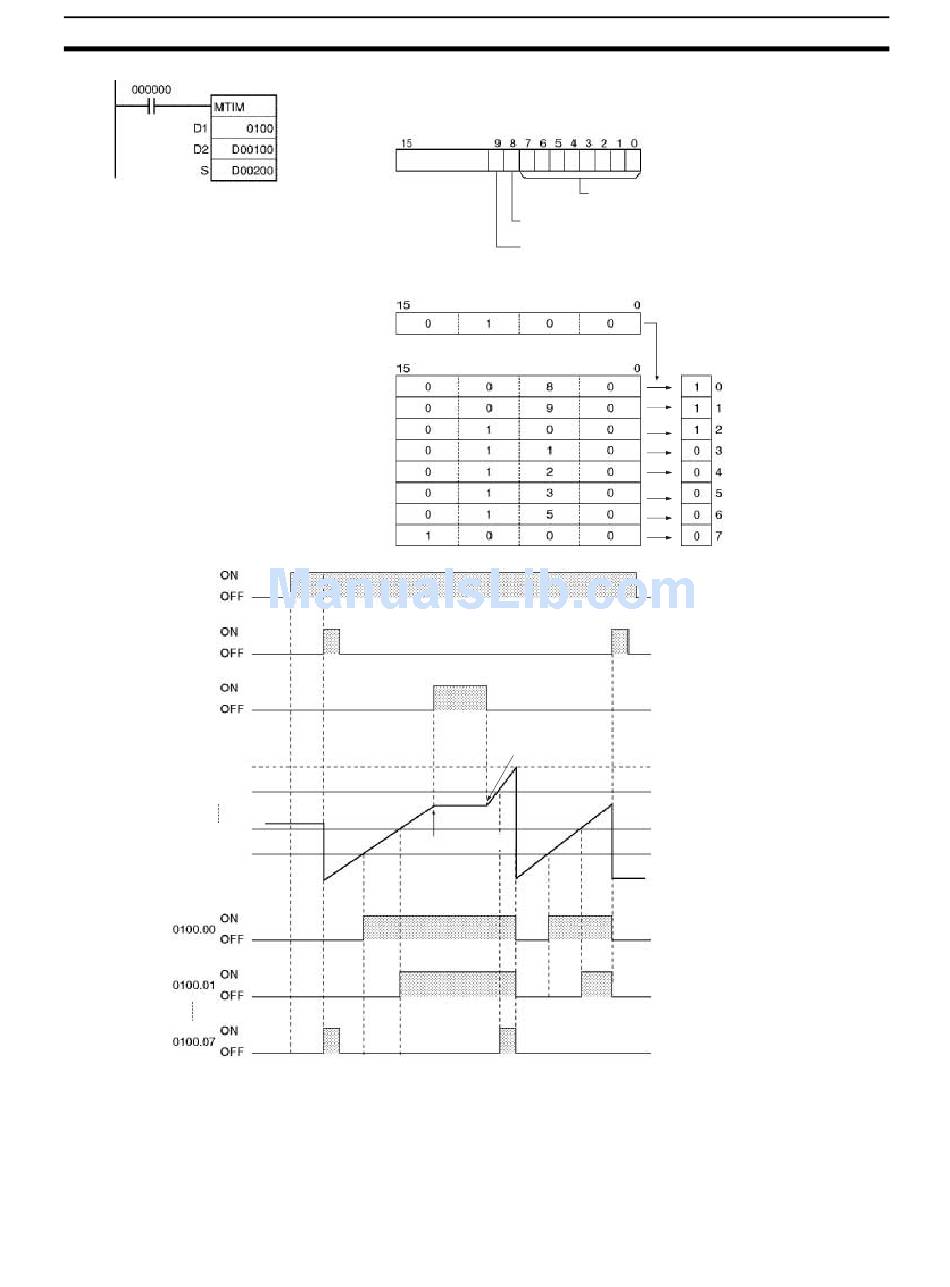

Timer and Counter Instructions
Timer input
CIO 000000
Reset bit
CIO 010008
Pause bit
CIO 010009
Max. PV = 9999
Timer SVs
SV 7
SV 1
SV 0
Completion Flags
D1: 0100CH
Timer PV
D2: D00100
Timer SVs
S: D00200
S+1: D00201
S+2: D00202
S+3: D00203
S+4: D00204
S+5: D00205
S+6: D00206
S+7: D00207
PV maintained.
Completion Flags
Reset bit
Pause bit
(Incrementing)
Corresponding completion
flag ON when SV ≤ PV.
Timer input must remain ON
while the timer is timing.
Timing resumes.
