Mounting | Preliminary Remarks
4.

Mounting

4.1

Preliminary Remarks

The optical sensors/measuring systems of the confocalDT IFD2410/2411/2415 series measure in the nanometer range.
Observe the maximum tilt between sensor and target.
i
Ensure careful handling during installation and operation!
4.2

confocalDT IFD2410/2415

4.2.1

Circumferential Clamping

Mount the IFD241x using a mounting adapter.

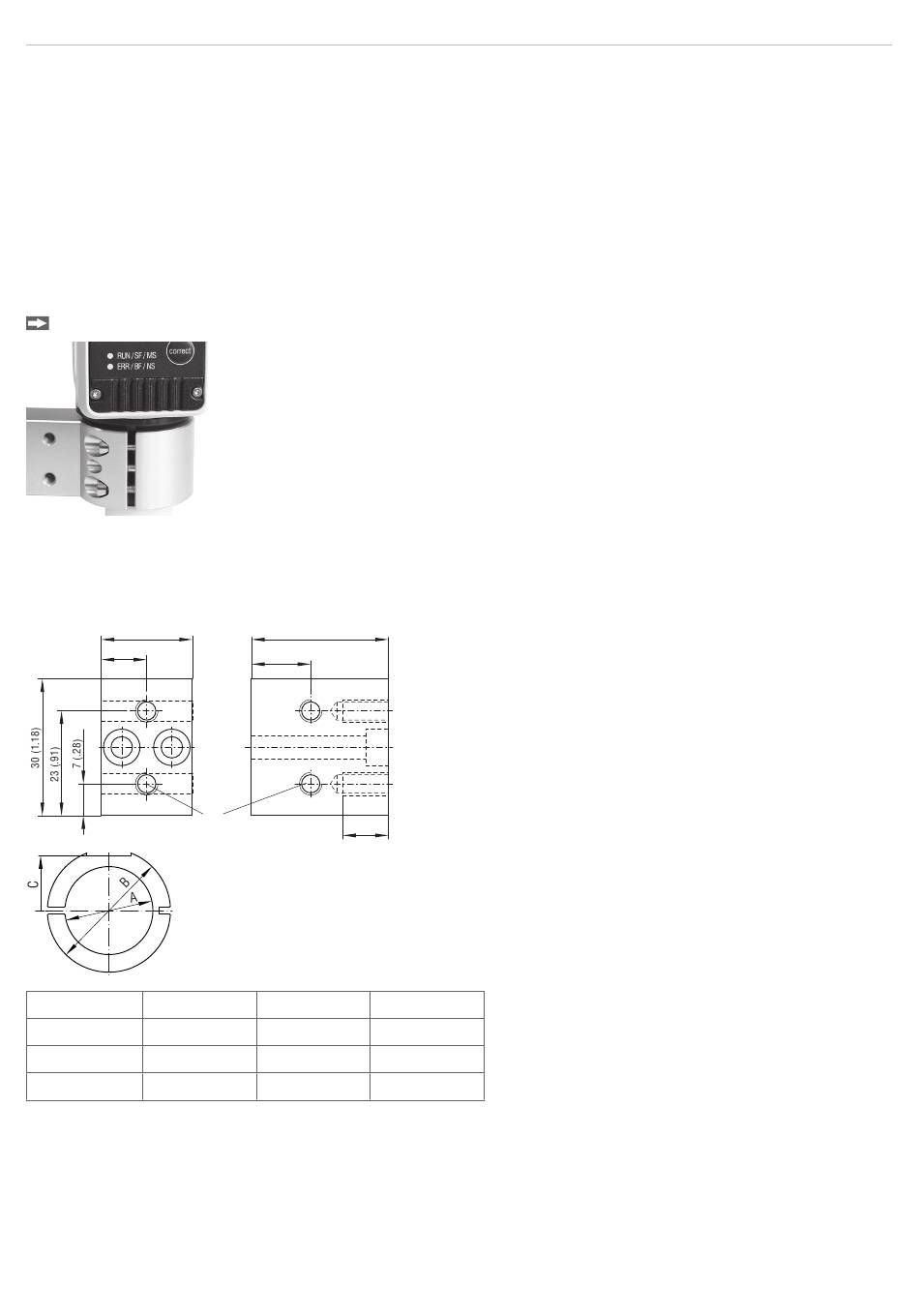

Fig. 2 Circumferential clamping with MA240x mounting ring, consisting of mounting block and mounting ring
i
Micro-Epsilon recommends using the circumferential clamping.
20 (.79)
10 (.39)
Mounting ring Dimension A Dimension B Dimension C
MA2400-27 ø27
MA2405-34 ø34
MA2405-54 ø54
Fig. 3 Mounting block and mounting ring MA240x
confocalDT 2410/2411/2415
30 (1.18)
13 (.51)
M5
10 (.39)
ø46
ø50
ø70
19.75
22
32
