Mounting | confocalDT 2411
20 (.79) 30 (1.18)
10 (.39) 13 (.51)
M5
10 (.39)

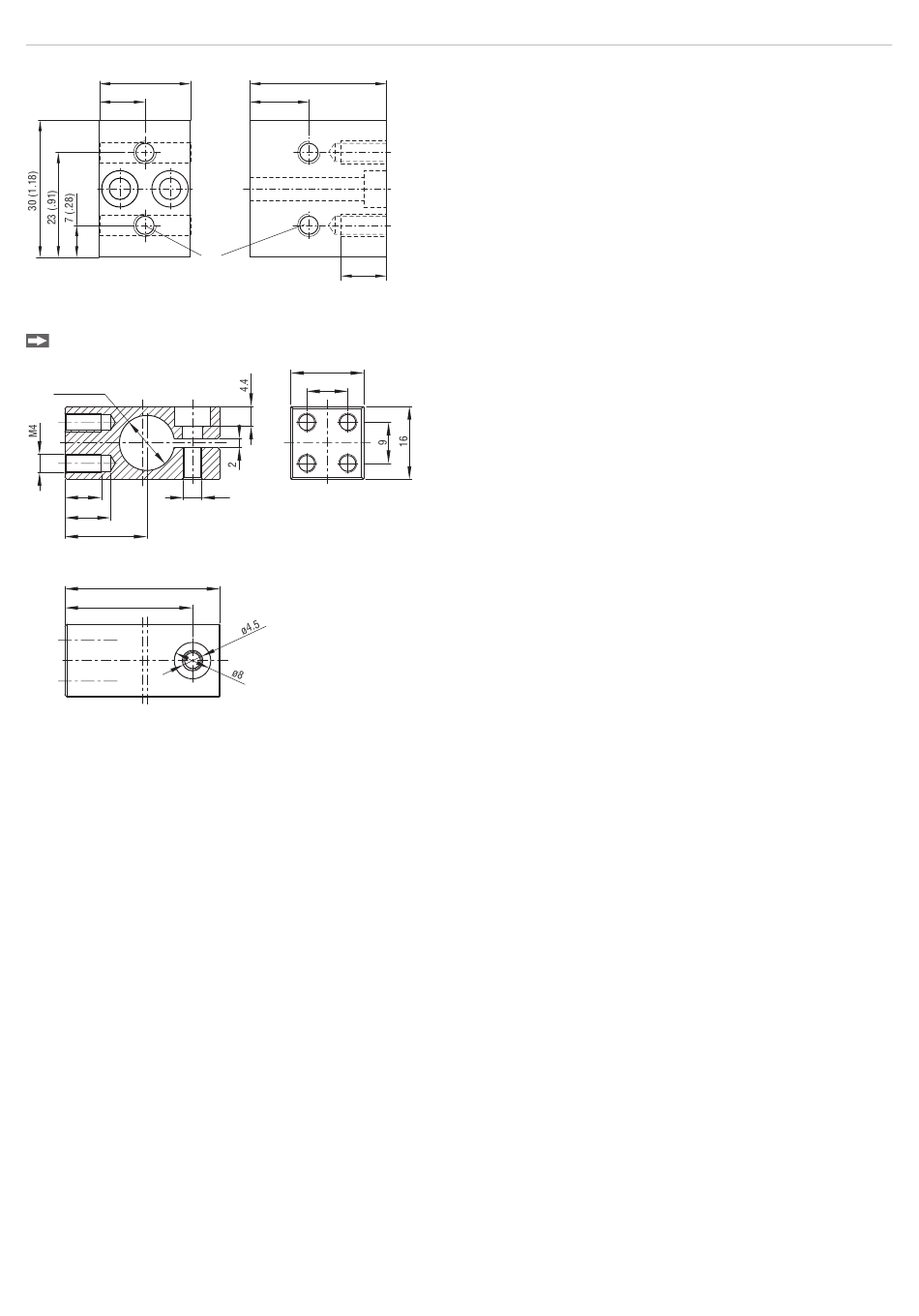

Fig. 22 Mounting block MA240x
Mount the IFS2404-2 (IFD2411-2) sensors using an MA2404-12 mounting adapter.
16
9
ø 12,1 H7
8 M4
10
18
34
28
Fig. 23 Mounting block MA2404-12
