Thickness Measurement, One-Sided, Transparent Target
7.6
Measurement Chart
Measurement chart
Mess
Switch to the
tab and select
as the chart type.

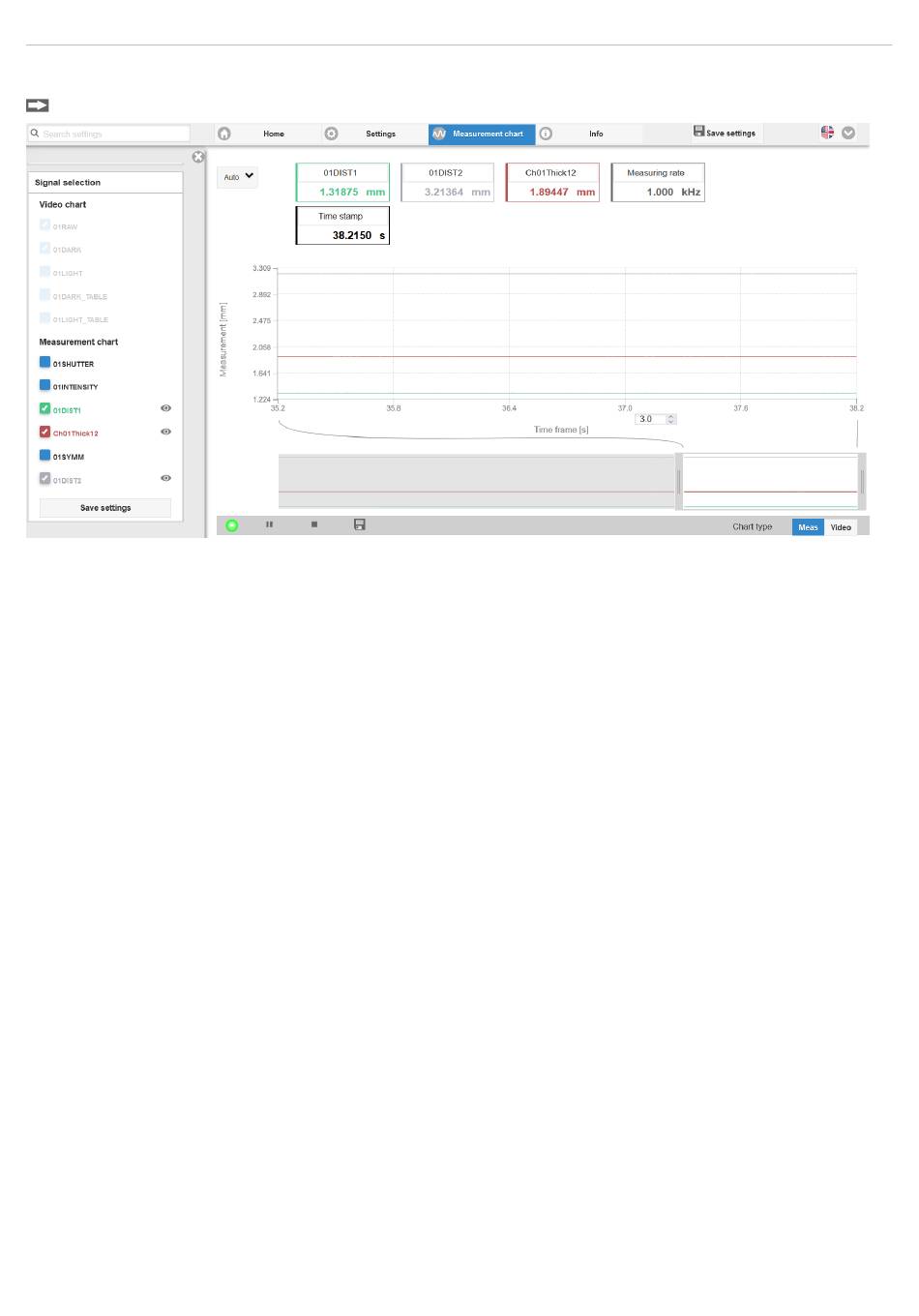

Fig. 73 Measured thickness results based on a one-sided thickness measurement with one sensor
01DIST2
01DIST1
The web page shows the two distances and the thickness (difference between
and
) graphically and
numerically. Optionally, the intensities of both peaks (Peak 1 = near, Peak 2 = far) can also be displayed.
confocalDT IFD2410/2411/2415
Page 77
