A 4.4 Interface between Controller and Sensor Cable
Disconnect the sensor cable (fiber optic cable) from the controller.
Remove the protective cap of the One-Click™ cleaner.
Put the One-Click™ cleaner into the fiber optic connector of the controller, see figure.
Press the outer sleeve of the One-Click™ cleaner onto the fiber optic connector until a click noise signalizes the end
of cleaning.

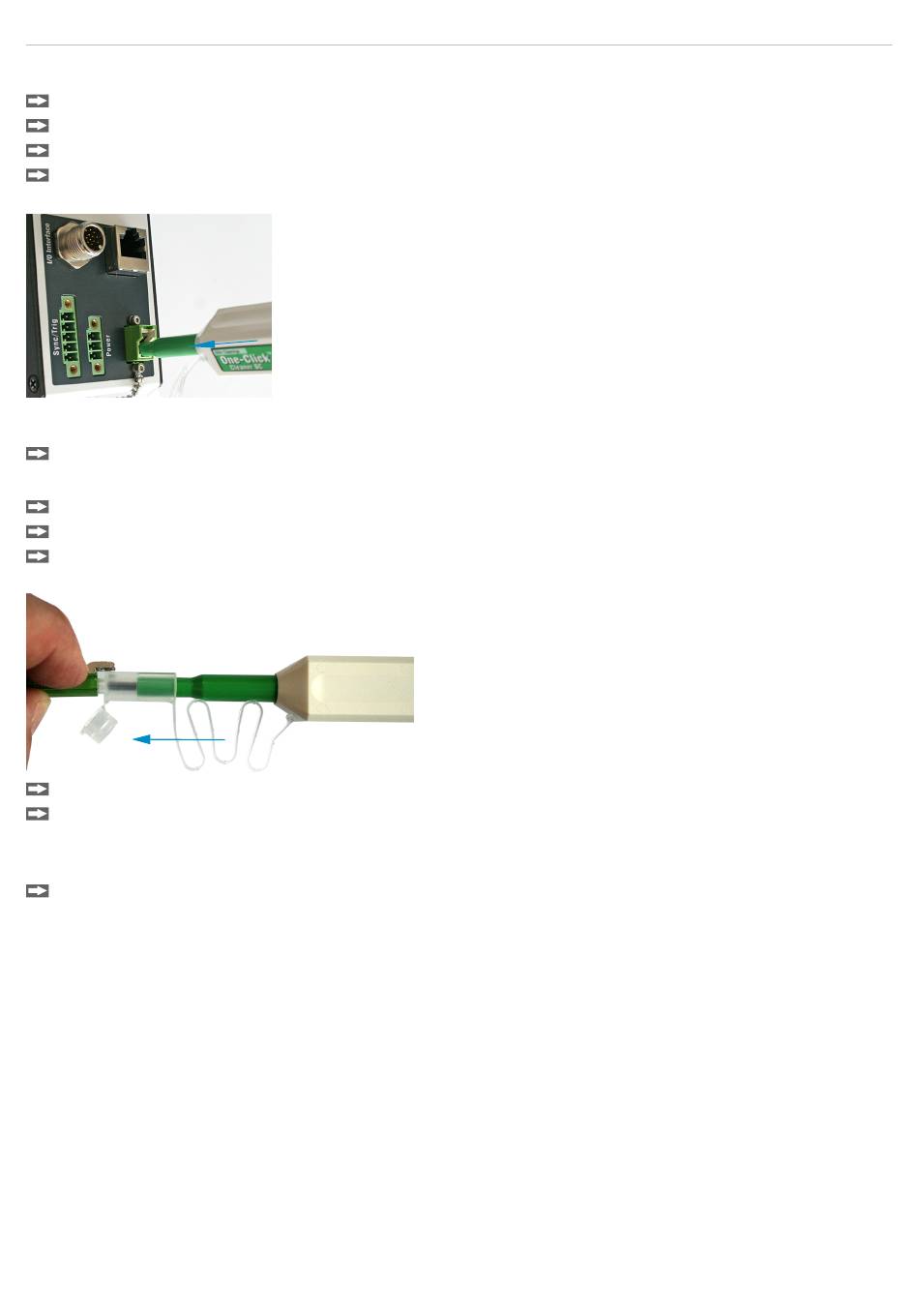

Fig. 128 One-Click™ Cleaner for cleaning E2000 optical fiber transitions
Plug the protective front cap on the controller into the optical fiber connection.
Remove the front protective cap of the One-Click™ cleaner.
Put the One-Click™ cleaner into the optical fiber, see figure.
Press the outer sleeve of the One-Click™ cleaner onto the fiber optic connector until a click noise signalizes the end
of cleaning.
Plug the sensor cable into the controller.
Conduct a dark correction.
If the video signal corresponds to the condition before the dark correction, you must clean the boundary surfaces within
the measuring system.
Continue with the section
confocalDT 2410/2411/2415
Interface between Sensor Cable and Sensor
.
