Definitions - MICRO-EPSILON confocalDT IFD2410 Series Operating Instructions Manual

Set Sensor Parameters, Web Interface
6.3.2

Definitions

Distance value(s)
Max. 10 calculation blocks per channel/sensor. The calculation
blocks are processed sequentially.

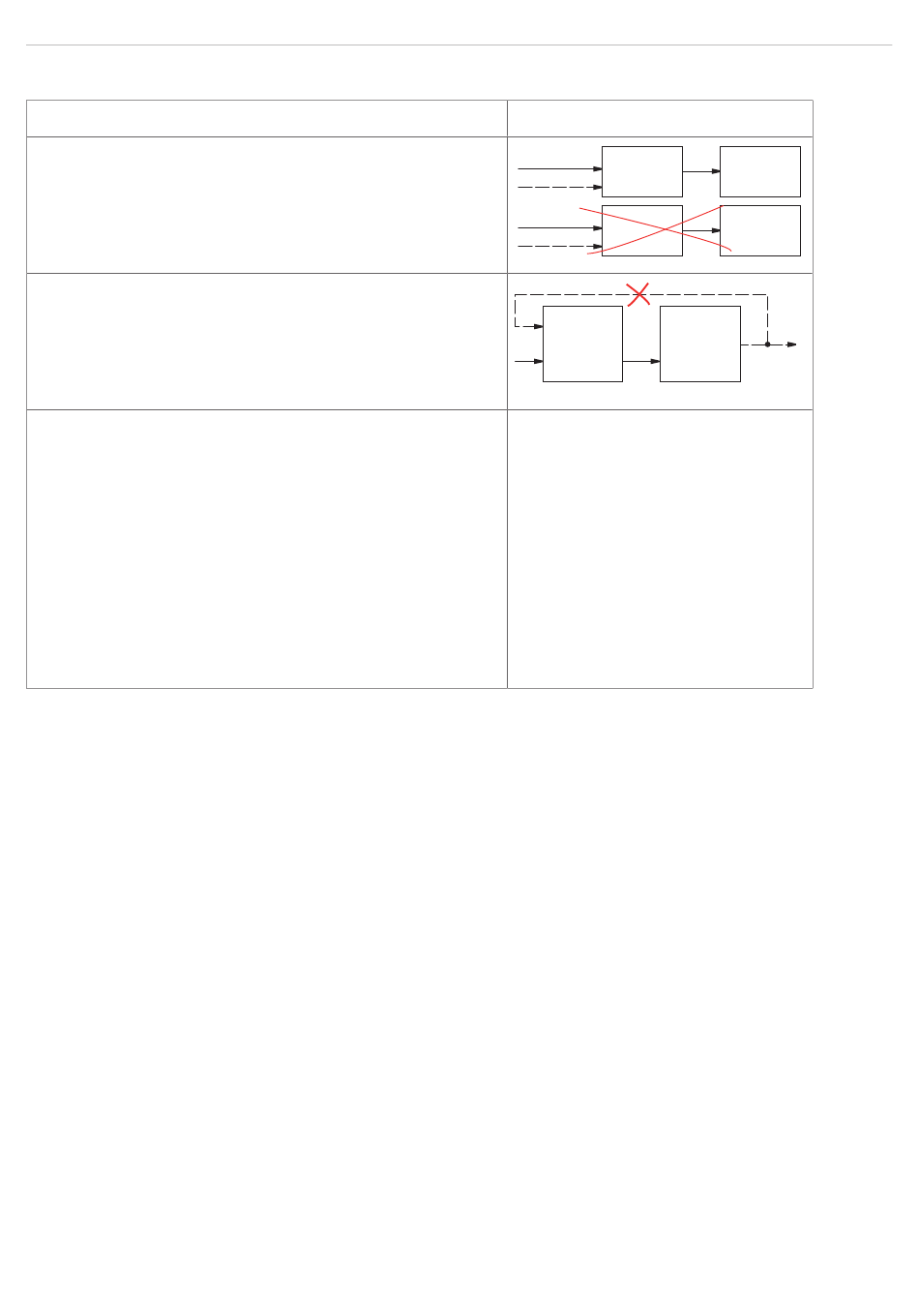

Feedback couplings (algebraic loops) over one or several
blocks are not possible. Only the distance values or the calcu-
lated results from the previous calculation blocks can be used
as data sources.
Processing sequence:
1. Unlinearized distances
2. Linearization of distances
3. Refractivity correction of distances
4. Error handling in the case of no valid measured value
5. Spike correction of distances
6. Calculation blocks
7. Statistics
confocalDT IFD2410/2411/2415
01DIST1, 01DIST2, ... 01DIST6
0xDISTn
Block 1
0xDISTn
Block 2
Block 2
Calculation
Block 1
Calculation
Block 2
Block 1
Page 62
