Mounting
4.
Mounting
4.1
Sensor, Sensor Cable
The sensor features an M5 x 0.8 thread, which can be used to install it.
40
0.0
0.8
-0.1
Cable length 1.0 m ±10 mm
42
(1.65)
±1
10 (.39)

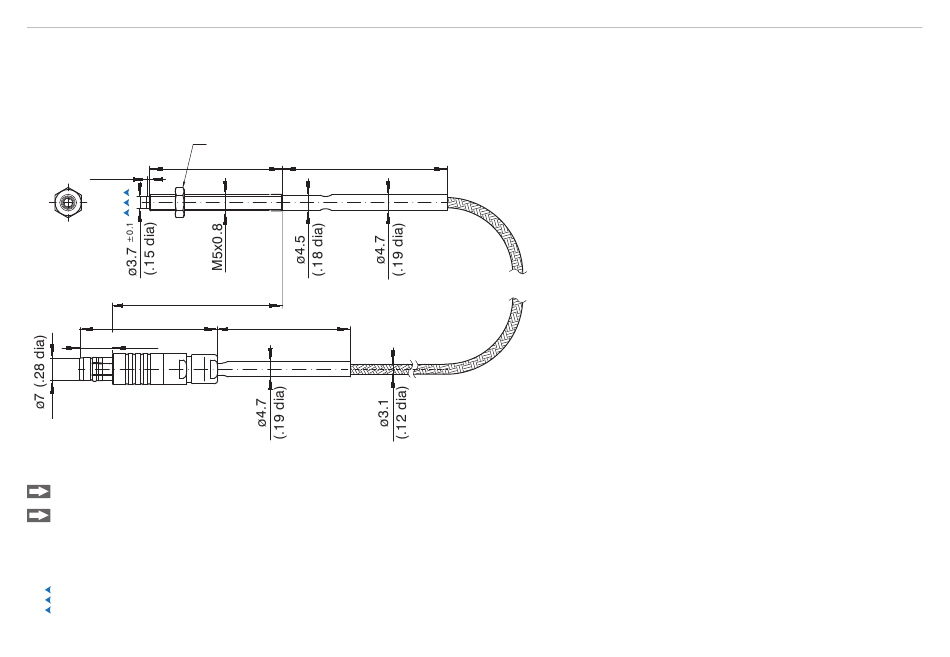

Fig. 2 CSE025 sensor featuring integrated cable with thermal protection sleeve
Lay the sensor cable in such a way that no sharp or heavy objects affect the cable sheath. Do not kink the cable.
Always fasten the sensor position with a locknut.
Active measuring surface
capaNCDT CST6110
M5 DIN439
(1.57)
50
(1.97)
±0.3
±2
40
(1.57)
±5
i
Never bend the sensor cable more tightly than
the permitted bending radius:
10 x diameter for dynamic use,
5 x
diameter for static use
i
The calibrated sensor cables must not be short-
ened, because this changes the calibration of
the measuring system.
