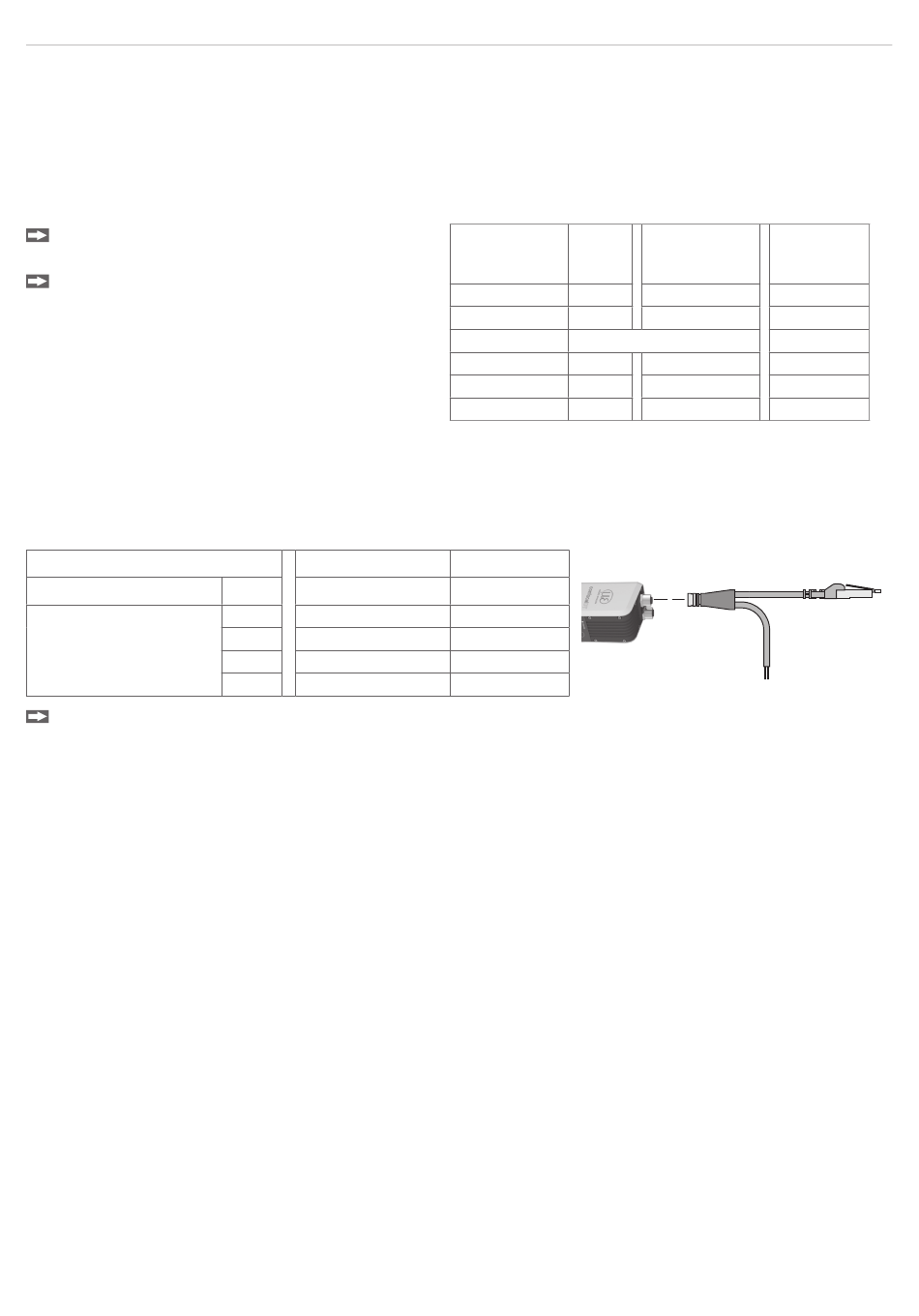

Mounting | confocalDT IFD2410/2415
4.2.6

RS422

In addition to Industrial Ethernet, the IFD2410/2415 also supports serial communication via RS422. The PC2415-1/Y or
PC2415-x/OE cables enable serial communication. The IF2001/USB RS422-to-USB converter is available as an optional
accessory.
- Differential signals to EIA-422, galvanically connected to supply voltage.
- Receiver Rx with 120 Ohm internal terminating resistor.
Use a shielded cable with twisted wires.
Cable length less than 30 m.
Connect the ground connections.
4.2.7

Ethernet, EtherCAT

Connection
- with an Ethernet network (PC) or
- with the EtherCAT bus system (IN port).
IFD2410/2415, 12-pin connector
Signal
Industrial Ethernet
Connect the IFD2410/2415 and network with a shielded Ethernet cable (Cat5E, 2 m patch cable from the scope of
delivery, total cable length shorter than 100 m).
RUN ERR
The two LEDs and
The measuring device can be configured via SDOs (EtherCAT), the web interface or by ASCII commands at command
level (e.g. Telnet).
confocalDT 2410/2411/2415
PC2415-x/OE
Pin Wire color
9 White/green
10 Green
11 White/orange
12 Orange
indicate that the connection was successful and is active.
IFD2410/2415 Signal
12-pin connec-
tor
3 RX +
4 RX -
2 Supply GND (blue)
5 TX +
6 TX -
Housing Shield
PC2415-1/Y
RJ45, pin
3
6
1
2
PC2415-1/Y IF2001/USB
PC2415-x/OE
Brown
TX +
White TX -
GND
Green
RX +
Yellow
RX -
Cable shield
12-pin connector PC2415-1/Y
---
