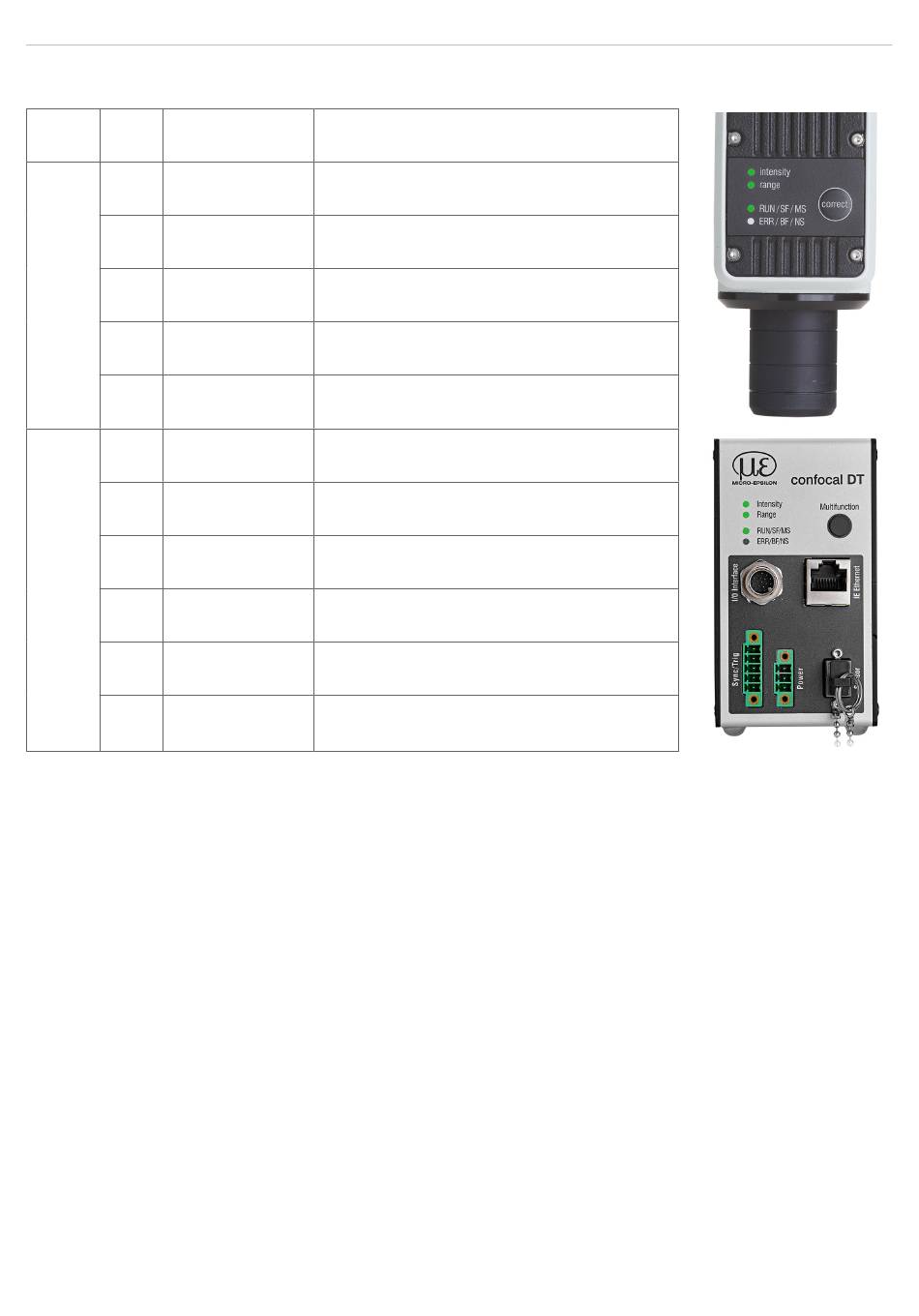

Meaning of LEDs in EtherCAT Operation

LED Color Status
RUN
Green Off
Green flashes uniformly
Green flashes briefly
Green flashes rapidly
Green illuminated
ERR
Red Off
Red flashes uniformly
Red flashes briefly
Red flashes twice
Red flickers
Red illuminated
confocalDT IFD2410/2411/2415
Meaning
Slave is in "Init" status
Slave is in "Pre-Operational" status
Slave is in "Safe-Operational" status
Slave is in "Initialization"
or "Bootstrap" status
Slave is in "Operational" status
no error
invalid configuration
Unintentional change in status
Application watchdog timeout
Boot error
PDI watchdog timeout
Page 130
