Filler Panels; Figure 3-1 Filler Panel - Sun Microsystems Enterprise 3500 System Reference Manual

3.2

Filler Panels

All empty board slots in Enterprise 3500 systems must have a filler panel installed
for cooling purposes and for EMI protection. Filler panels are inserted into a board
slot with the springfingers facing to the right ( ).

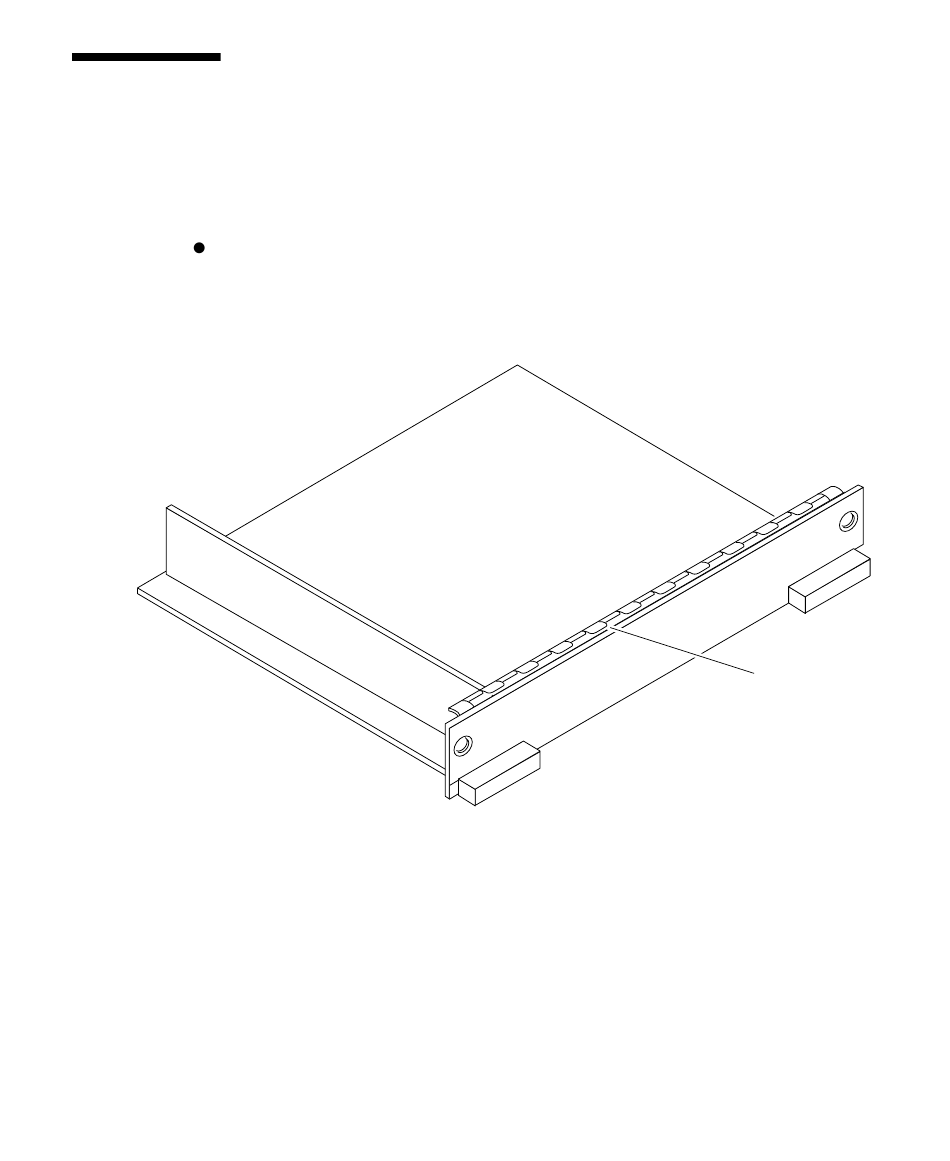

FIGURE 3-1
To remove the filler panel from the card cage, unfasten the captive screws at the
top and bottom of the panel.
Grasp the handles to pull the filler panel out.
Springfingers
Filler Panel
FIGURE 3-1
