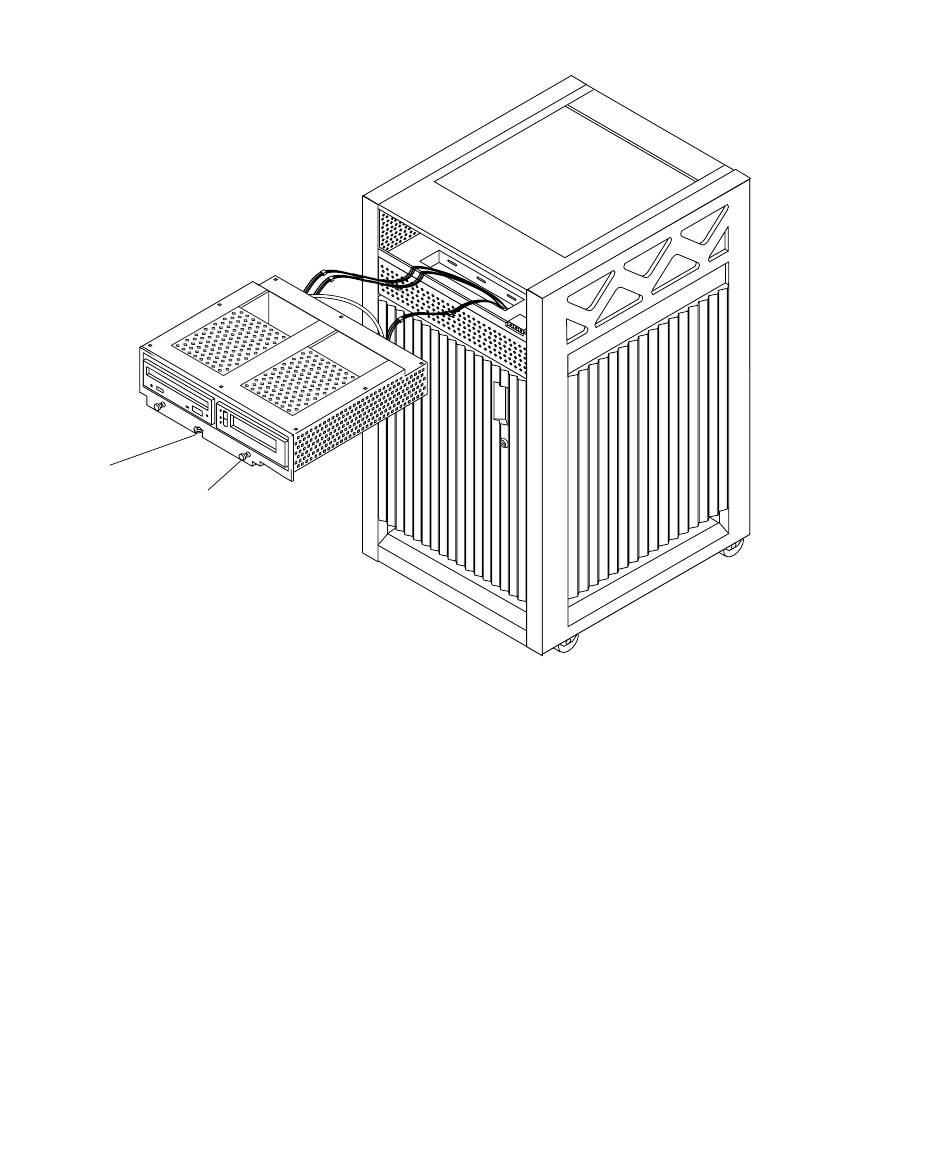

Figure 8-3 Media Tray Removal And Replacement - Sun Microsystems Enterprise 3500 System Reference Manual

Notch
Captive screws (2)
FIGURE 8-3
4. To access the devices in the media tray, turn the tray over and place it upside
down on top of the Enterprise 3500 cabinet.
To remove and replace an existing device, perform Step 5. To install a tape drive for
the first time, proceed to Step 6.
5. To replace a DVD-ROM or a tape drive:
a. Loosen the four screws securing the drive to the media tray.
b. Disconnect the drive data and power connector from the socket in the media
tray, and slide the drive out of the tray.
c. Set the replacement drive SCSI address to 6 for a DVD-ROM drive, to 5 for a
tape drive.
d. Slide the replacement drive into the media tray. Use the four screws removed in
Step 5a to secure the drive; tighten the four screws.
8-4 Sun Enterprise 3500 System Reference Manual • August 2001
Media Tray Removal and Replacement
