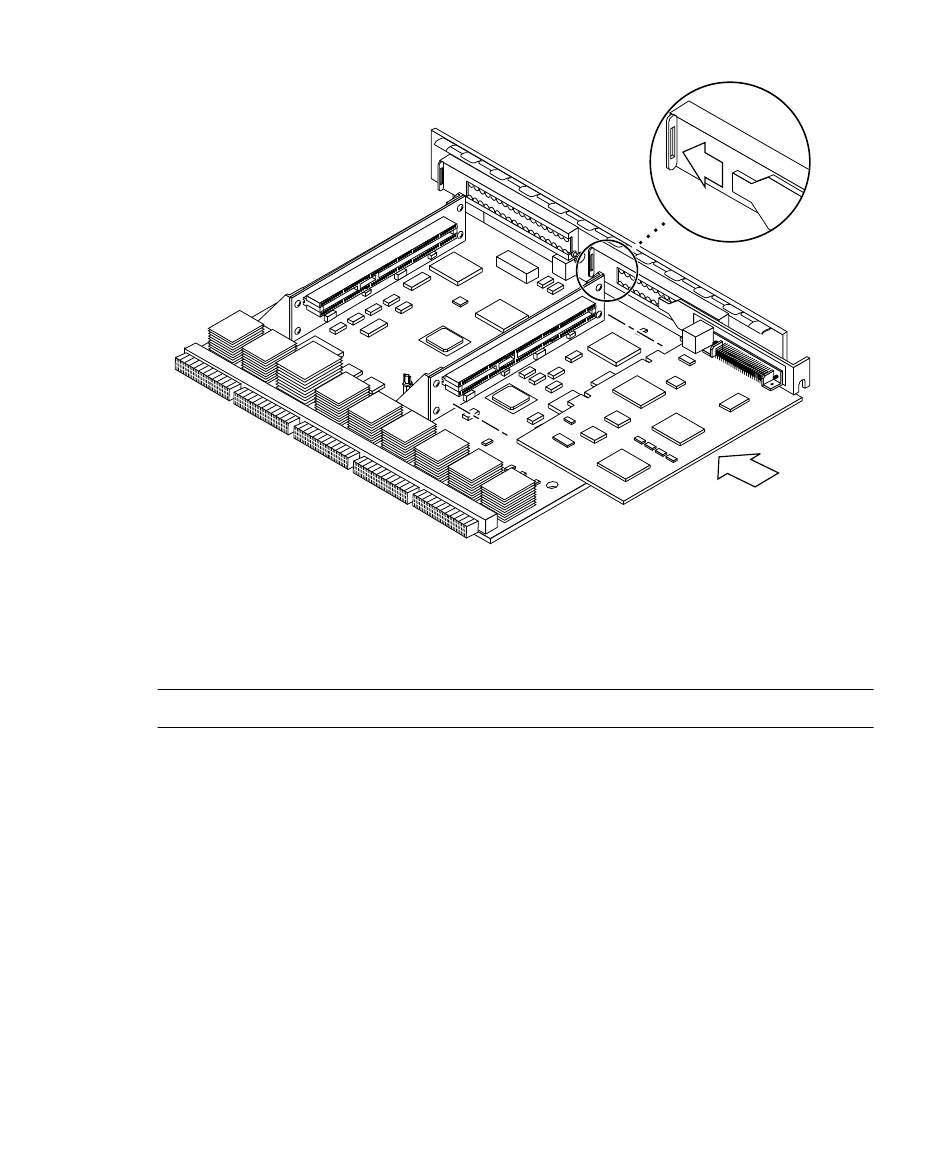

FIGURE 4-23
4. Once the card is properly positioned (as described in Step 3) and seated properly
to the PCI+ board PCI Bus connector, tighten the locking thumbscrew.
Note – Some PCI cards may not utilize the nylon standoffs provided for mounting.
5. Ensure that the standoff is positioned to capture the edge of the PCI card, and
then tighten the screw securing the standoff.
6. Use the procedures in the Section 4.6.3 "Installing a Board" on page 4-11, to
replace the PCI+ I/O board.
4-28 Sun Enterprise 3500 System Reference Manual • August 2001
PCI Card Installation/Replacement
Catch mechanism
