FIGURE E-5
E.4.2 Removing the Media Tray and Front Decorative
Panel
1. Loosen the two captive screws securing the media tray in the chassis.
2. Insert a screwdriver or similar instrument in the notch at the bottom center of the
media tray. Using the screwdriver, slightly pull out the media tray.
3. Grasp the media tray and gently pull it from the chassis (
E-8 Sun Enterprise 3500 System Reference Manual • August 2001

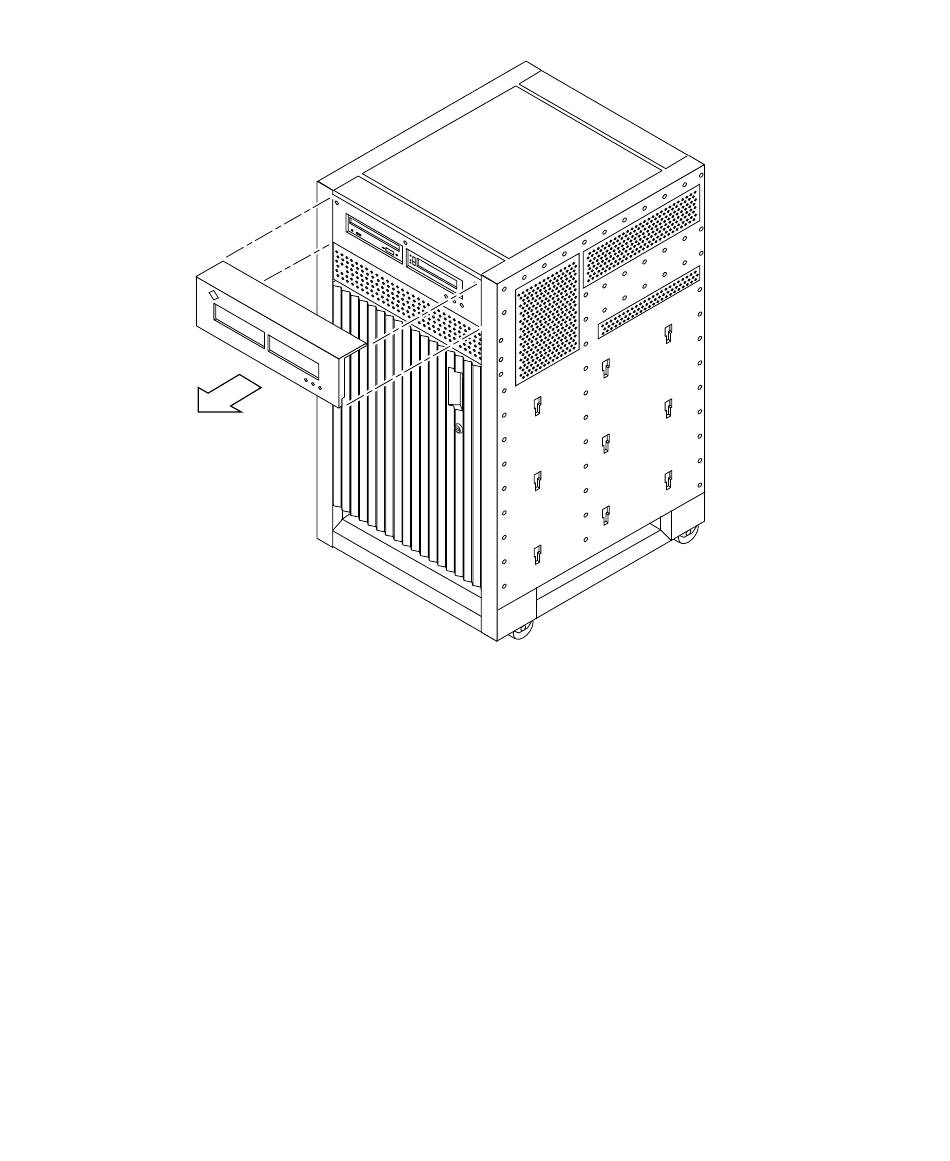

Removing the Front Bezel
).
FIGURE E-6
