4. Pull the ends of both extraction levers outward simultaneously to unseat the
board from the centerplane receptacles.
See
on page 5-3 to position the extraction levers.
FIGURE 5-1
5.2.6
Installing a Clock+ Board
The clock+ board slot is located in the system rear, to the right of the board slots
(
).

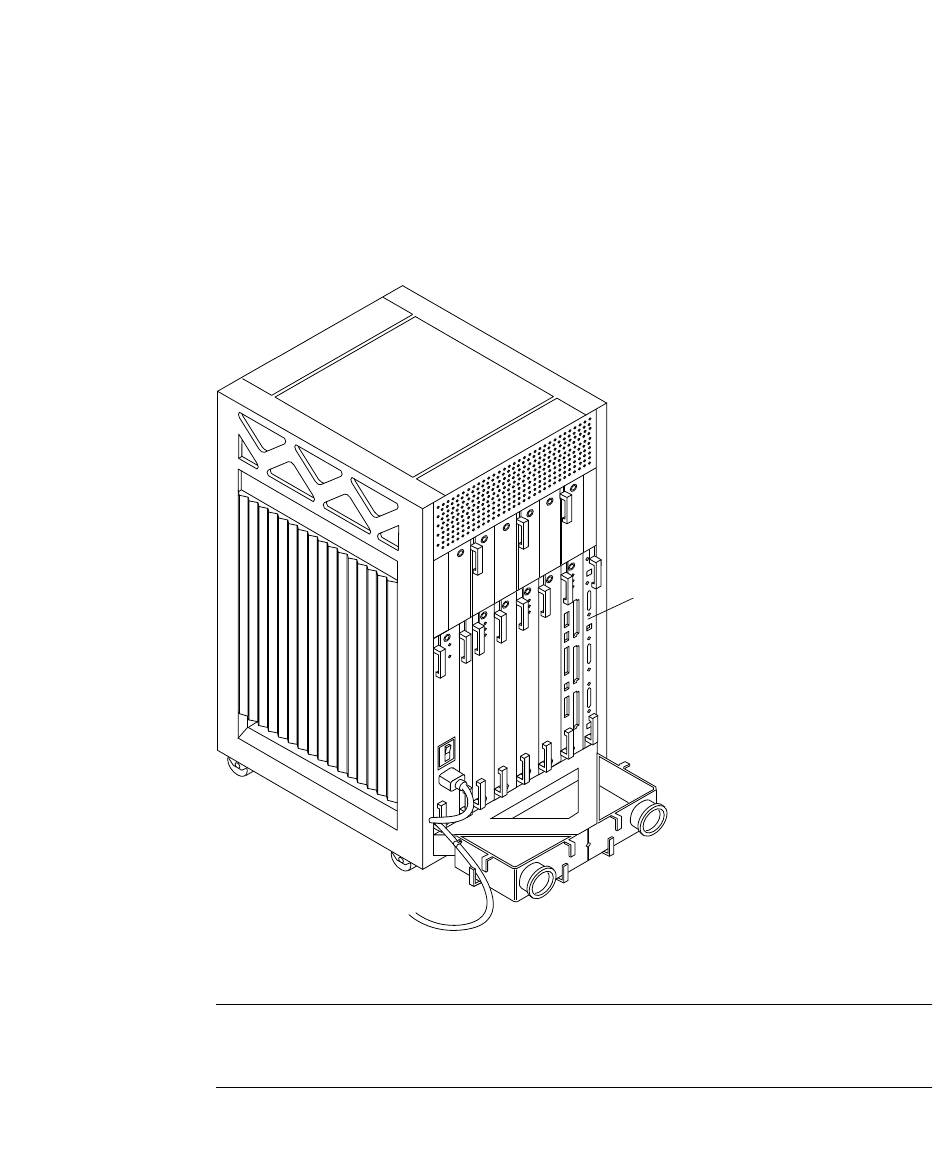

FIGURE 5-2
Clock+ board
Clock+ Board Location
FIGURE 5-2
Note – If you are replacing the clock+ board, the TOD NVRAM from the old
board must be removed and placed on the new board. Note also that if a system
is replaced, then the TOD NVRAM on the clock+ board must also be changed.
