Figure E-8 Key Switch Pwb Centerplane Cable - Sun Microsystems Enterprise 3500 System Reference Manual

2. Disconnect the key switch PWB centerplane cable from the centerplane
(

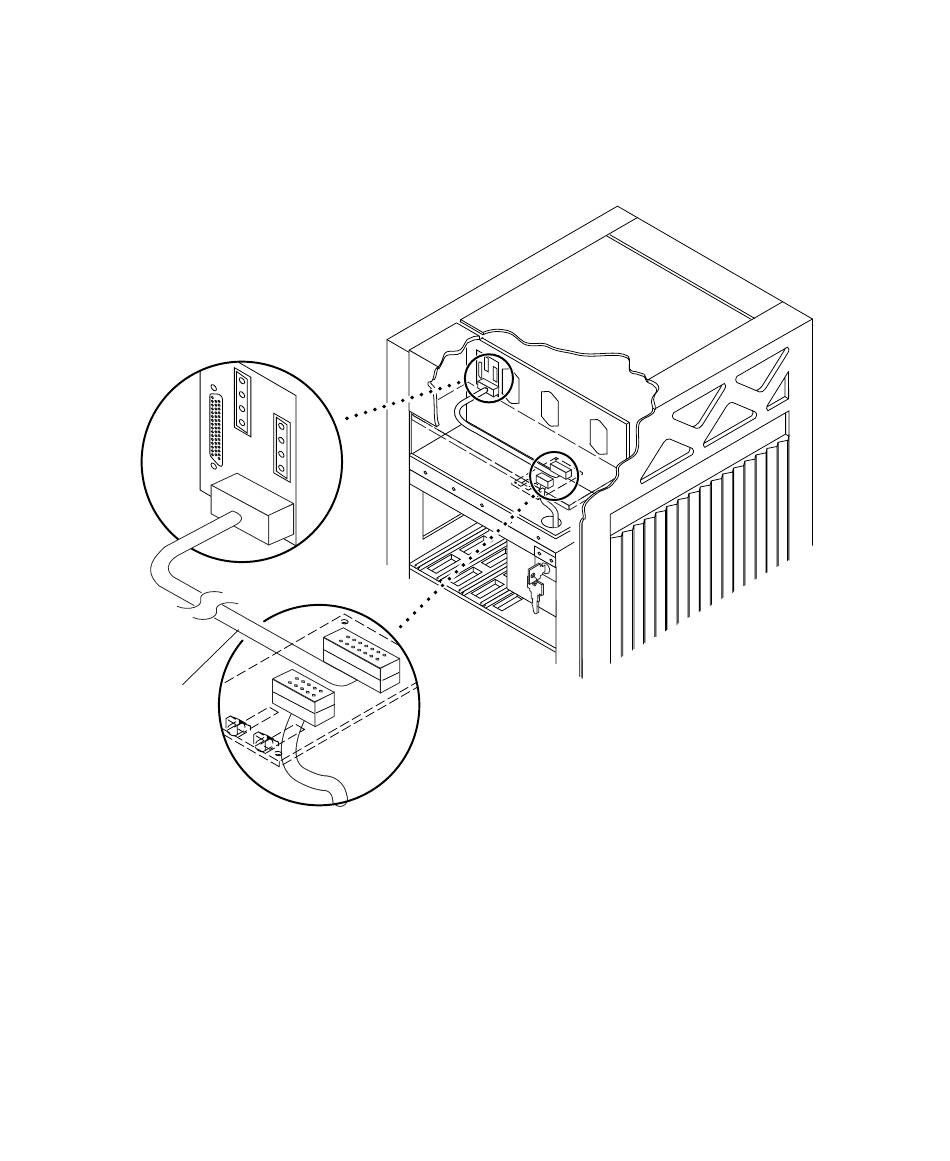

FIGURE E-8
Key switch PWB
centerplane ca-
FIGURE E-8
3. Disconnect the key switch PWB centerplane cable from the LED board.
a. Pull forward on the two locking tabs securing the cable to the LED board.
The key switch PWB centerplane cable is in back of the key switch lock cable
assembly (
E-12 Sun Enterprise 3500 System Reference Manual • August 2001
).
Key Switch PWB Centerplane Cable
).
FIGURE E-9
