See Chapter 10 "Flow Diagrams for Troubleshooting," for more information.
7.4.2 Replacing the Peripheral Power Supply/AC

(PPS 0)

1. Completely power off the Enterprise 3500 system.
See the power off instructions in Chapter 11 "Powering Off and On."
2. Disconnect the AC power cord from the power inlet.
3. Release the power supply from the system chassis by inserting a Phillips No. 1
screwdriver into each quarter-turn access slot and then turning to the unlocked
position (
FIGURE 7-3
4. Pull the ends of the extraction levers outward to release the power supply from
the centerplane.
5. Pull out the power supply (
).
FIGURE 7-3

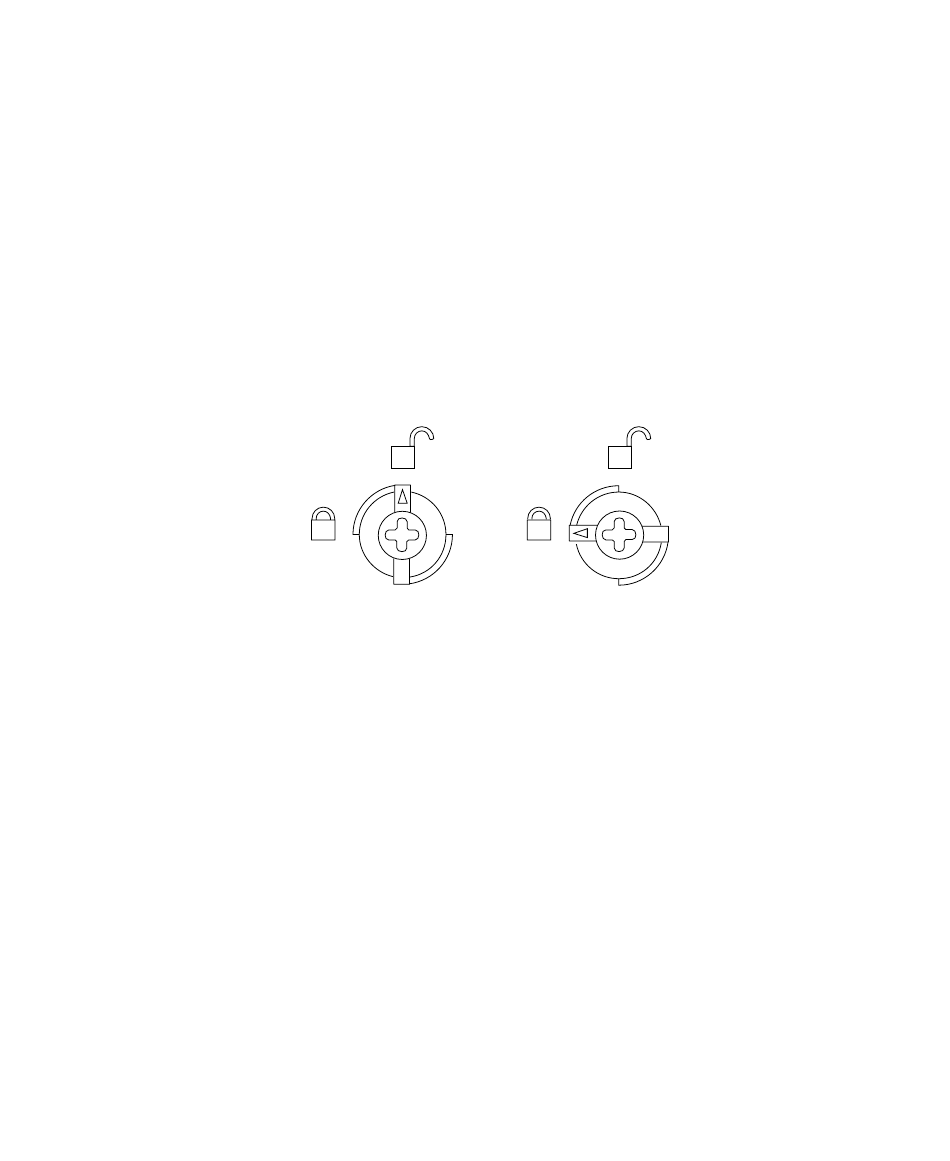

Unlocking and Locking Quarter-turn Access Slots
FIGURE 7-4
).
Chapter 7 Power Supplies 7-5
