12.3.2

Media Tray

To access the media tray:
1. Remove the front bezel. See Section 12.3.1 "Front Bezel."
2. Loosen the two captive screws securing the media tray in the chassis.
3. Insert a screwdriver or similar instrument in the notch at the bottom center of the
tray. Using the screwdriver, slightly pull out the tray (
4. Grasp the media tray and gently pull it from the chassis.
Disconnect the cables from the back of the tray.
5. To access the devices in the media tray, turn the tray over and place it upside
down on top of the Enterprise 3500 cabinet.
6. Loosen the four screws securing the drive to the media tray and remove the drive.
FIGURE 12-2
To replace the media tray, reverse these procedures.

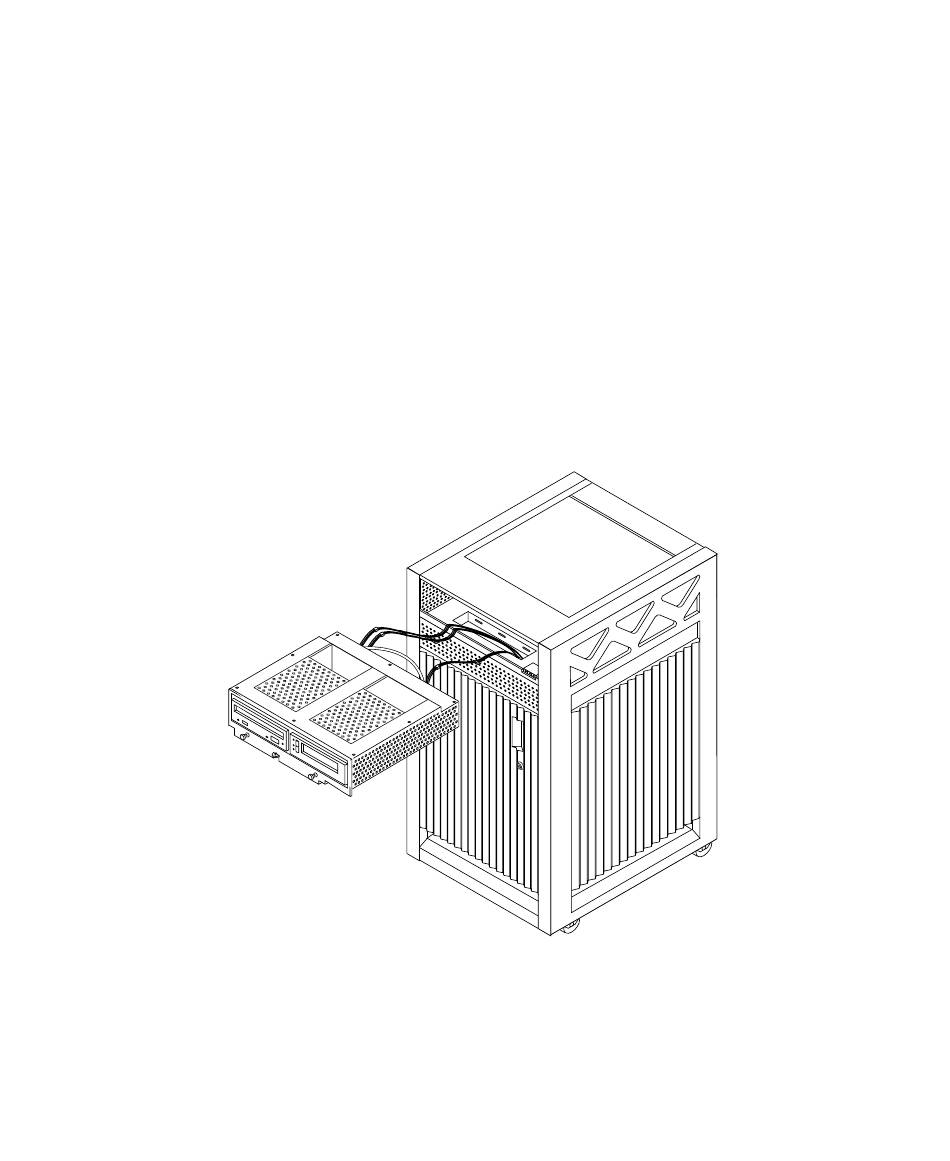

Removing the Media Tray
).
FIGURE 12-2
