D.12

Disk Drives

Disk drive bays are located at the front of the cabinet.
In the lower bank of disk drives, the bay numbers are 0, 1, 2, and 3, numbered from
left to right (
Requirement — Bay 0 is reserved for the boot disk.
In the upper bank of disk drives, the bay numbers are 4, 5, 6, and 7.
All disk drives connect through the centerplane to the interface board (IB) which
provides a fiber optical interface.
Disks 4, 5, 6, 7
Disks 0, 1, 2, 3
FIGURE D-2
D-8 Sun Enterprise 3500 System Reference Manual • August 2001
.)

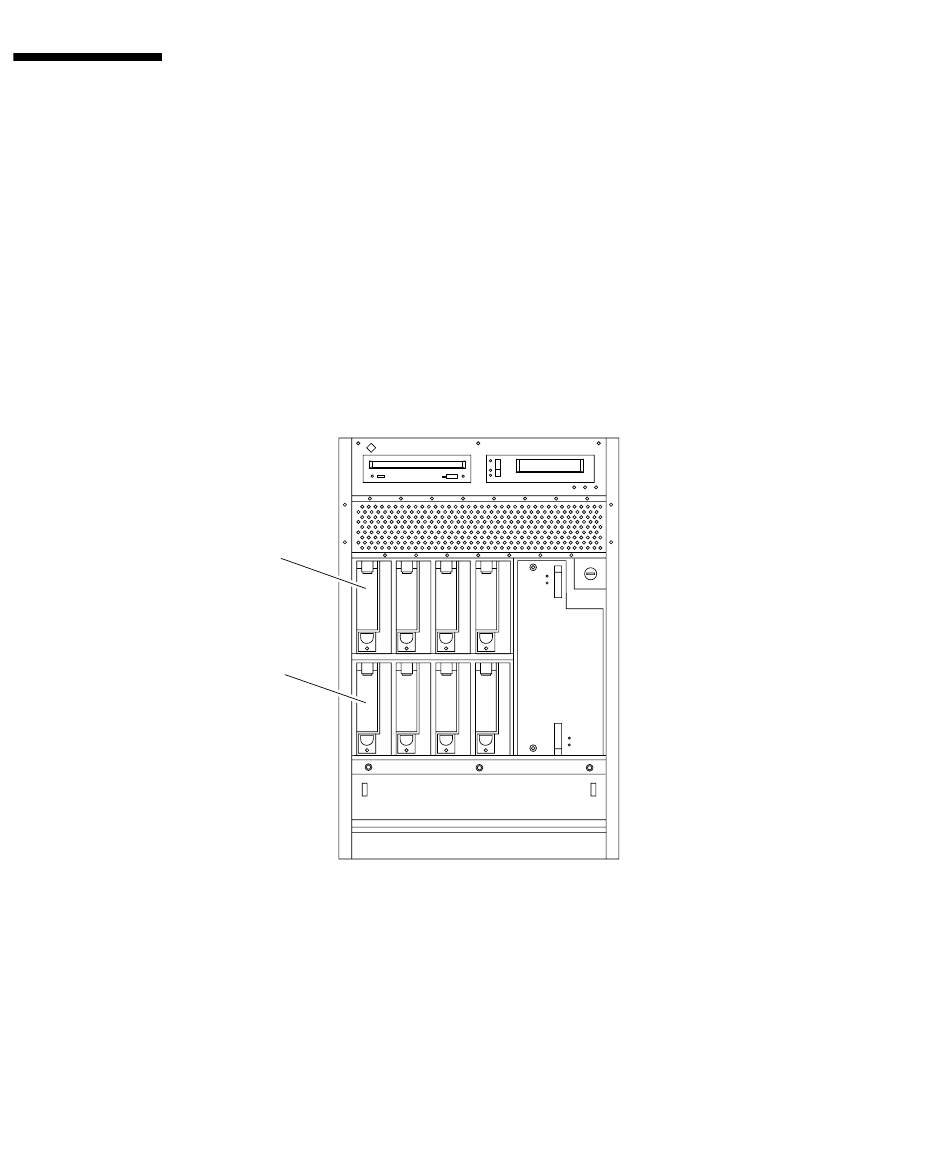

FIGURE D-2
Disk Drive Bay Numbers
Front view
