Figure E-12 Centerplane Guide Pins - Sun Microsystems Enterprise 3500 System Reference Manual

a. Use a Phillips No. 1 screwdriver to turn the arrows in the quarter-turn access
slots on the filler panels to the unlocked position (
b. Pull out and disengage the filler panels from the centerplane.
13. From the front of the system, remove the 24 screws that secure the centerplane to
the main chassis.
14. Remove the centerplane.
E.4.7.2 Replacing the Centerplane
1. Replace the 24 screws to secure the centerplane to the main chassis.
2. Replace and secure the front chassis to the centerplane.
Use the three guide pins to align the front chassis with the centerplane.
FIGURE E-12
3. Replace the two screws on the top front corners that secure the front chassis to the
main chassis (
4. Replace the 15 screws on each side that secure the front chassis to the main chassis
(
FIGURE E-11
5. Connect all the cables to the centerplane.
E-20 Sun Enterprise 3500 System Reference Manual • August 2001

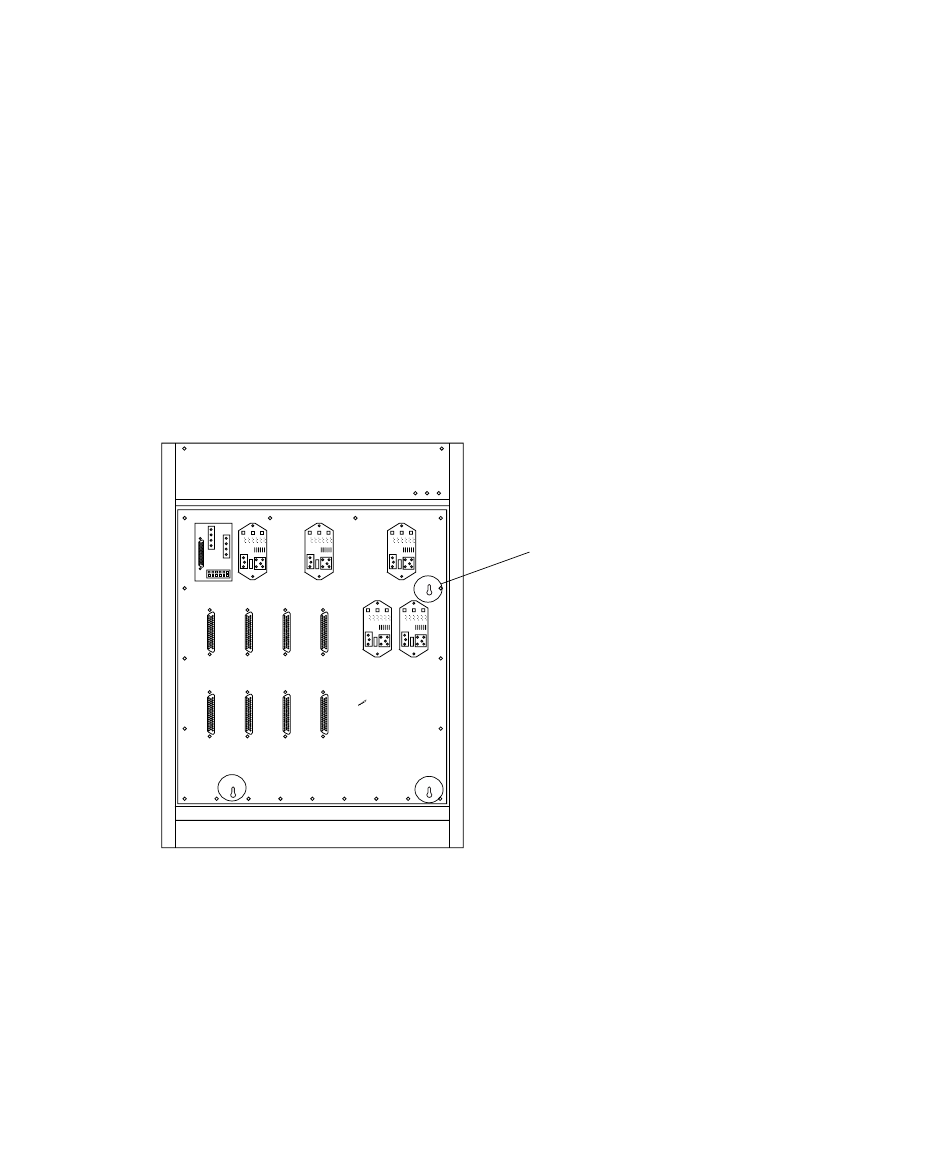

Centerplane Guide Pins
).
FIGURE E-11
).
).
FIGURE E-2
Guide pins (3)
