Front view
4 5 6
0 1 2

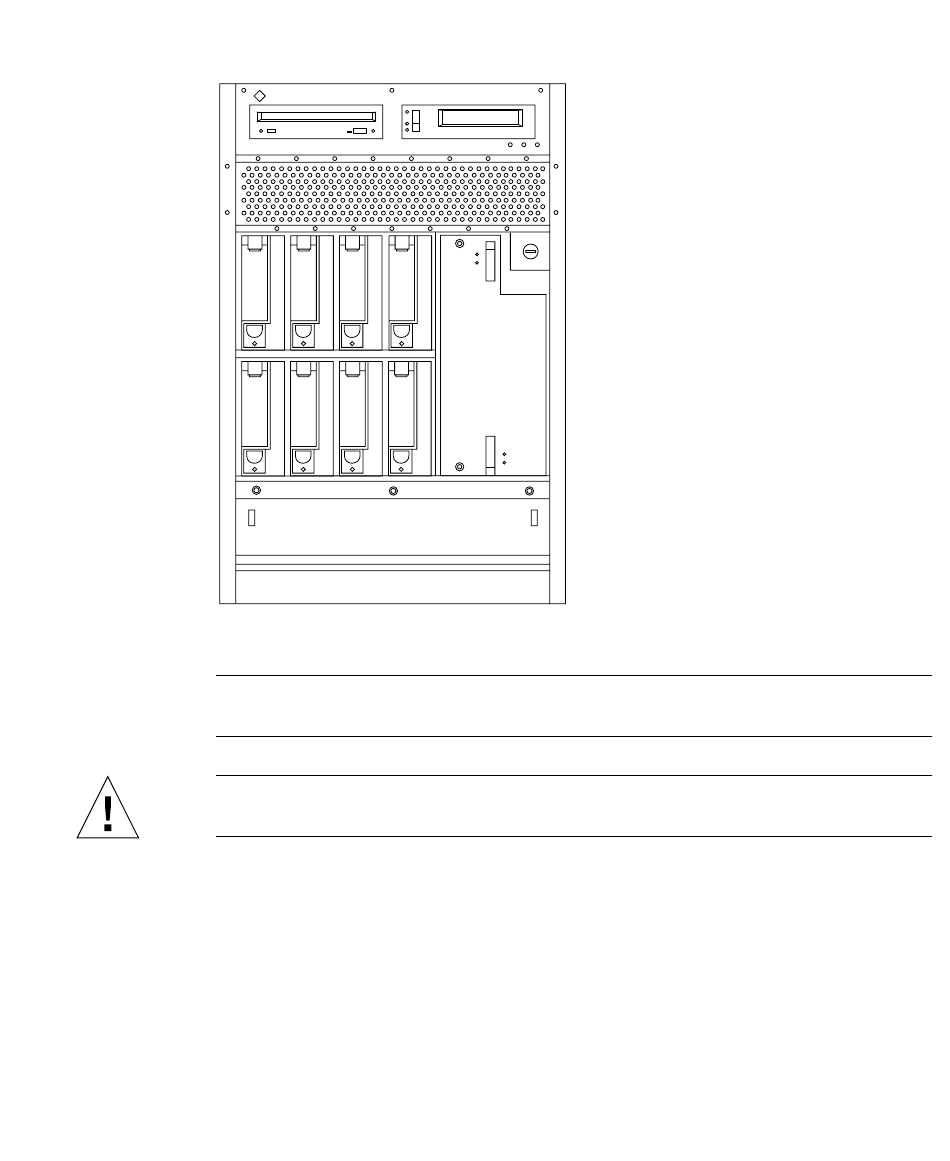

Disk Drive Bays
FIGURE 8-5
Note – The disk drive retainer must be unlatched and then extended 45 degrees, to
an unlocked position, for a drive to be removed or replaced in the system chassis.
Caution – Do not tug with abrupt force on the retainer; doing so can cause it to
break off.
3. To remove the drive:
a. Unlatch the drive retainer and extend it 45 degrees. Use the extended, unlocked
retainer as a handle (
7
3
).
FIGURE 8-6
Chapter 8 Internal SCSI and FC-AL Devices 8-7
