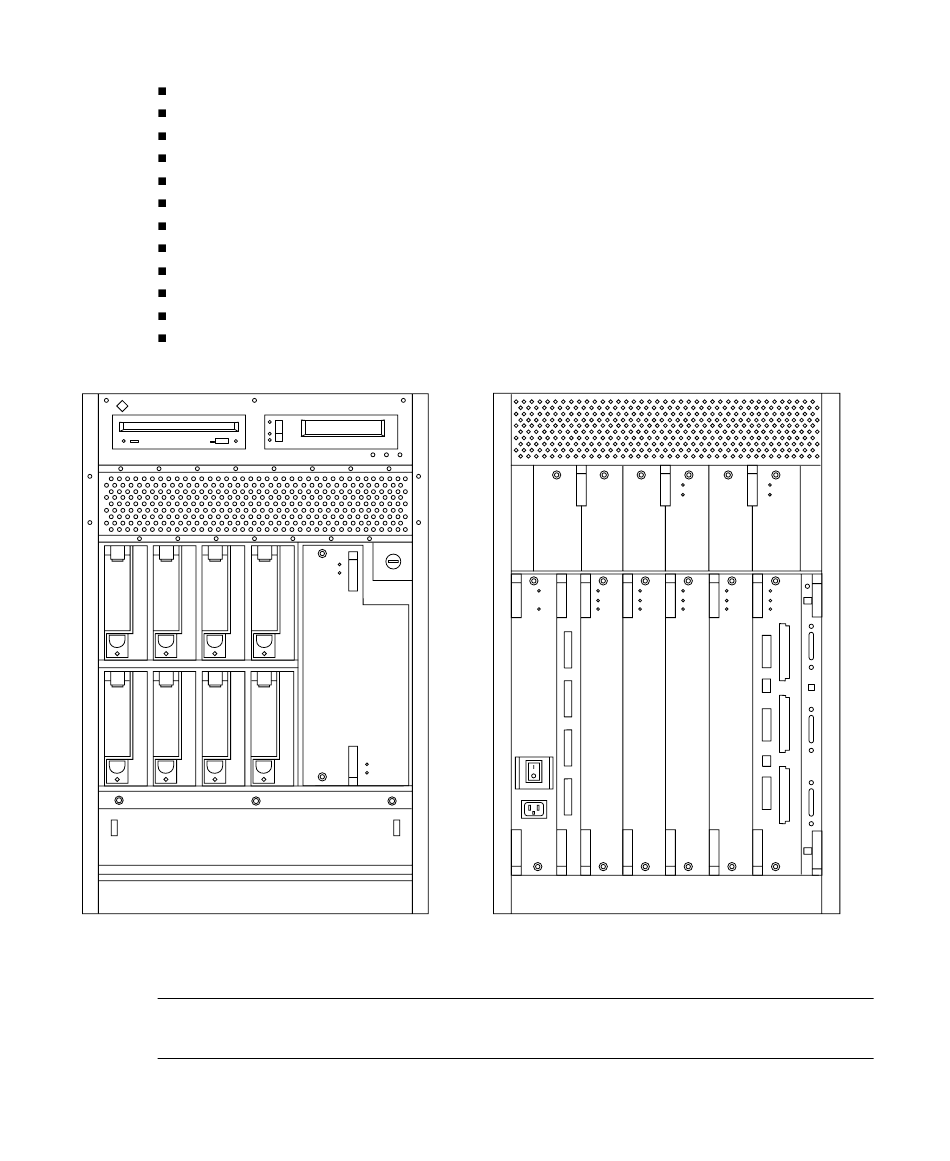

Figure 1-2 Enterprise 3500 Components - Sun Microsystems Enterprise 3500 System Reference Manual

The minimum configuration for the server is:
Power/cooling module (PCM) or PCM filler panels
Fan tray
Clock+ board
CPU/Memory+ board
UltraSPARC™ II module
Main memory
I/O+ board
Board filler panels for any unpopulated board slots
Interface board (IB) or IB filler panel
Peripheral power supply with EnAC power sequencer
Auxiliary peripheral power supply or thermal protection module
Media tray for removable media, including DVD-ROM drive
FIGURE 1-2
Note – System components are identified in Appendix F "Illustrated Parts
Breakdown." See
1-2 Sun Enterprise 3500 System Reference Manual • August 2001
Front view
Enterprise 3500 Components
FIGURE F-1
on page F-4 and
FIGURE F-2
Rear view
on page F-5.
