Cpu/Memory+ Board; Centerplane Connector; Figure G-1 Cpu/Memory+ Board Connector Locations - Sun Microsystems Enterprise 3500 System Reference Manual

G.1

CPU/Memory+ Board

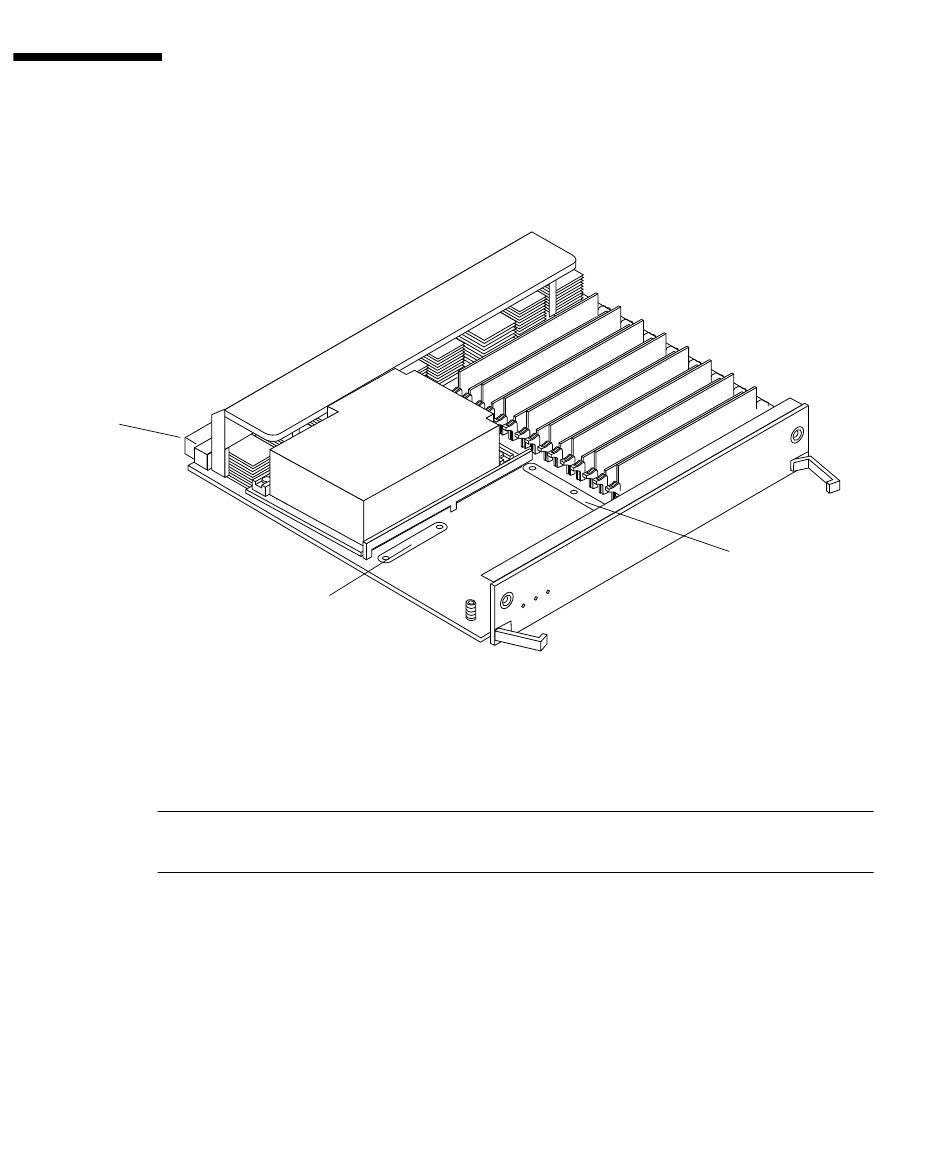

FIGURE G-1 shows the locations of the centerplane and CPU module connectors.
Centerplane
connector
FIGURE G-1
G.1.1

Centerplane Connector

Note – Information for the CPU/Memory+ board centerplane connector also
applies to the I/O+ board centerplane connector.
The CPU/Memory+ board centerplane connector is mounted on the rear of the
board. The connector is divided into modular sections (
has one three-bladed power section. The rest of the connector contains six 120-pin
rows, labeled A through F. Each section (1 through 5) has 24 pins of each 120-pin
row.
G-2 Sun Enterprise 3500 System Reference Manual • August 2001
144-pin
connector
CPU/Memory+ Board Connector Locations
288-pin
connector
). The connector
FIGURE G-2
