Note – If you are installing the disk in a previously unused disk drive bank and the
system does not recognize the disk, the GBIC interface for that bank may be missing
or located in the wrong port on the IB. See
TABLE 8-1
Disk Drives
0, 1, 2, 3
0, 1, 2, 3
4, 5, 6, 7
4, 5, 6, 7
FIGURE 8-7
8-10 Sun Enterprise 3500 System Reference Manual • August 2001
GBIC Controllers for Disk Drive Ports
Drive Port GBIC Name and Drive Location
A GBIC LA (Lower bank)
GBIC LB (Lower bank)
B
A GBIC UA (Upper bank)
B GBIC UB (Upper bank)

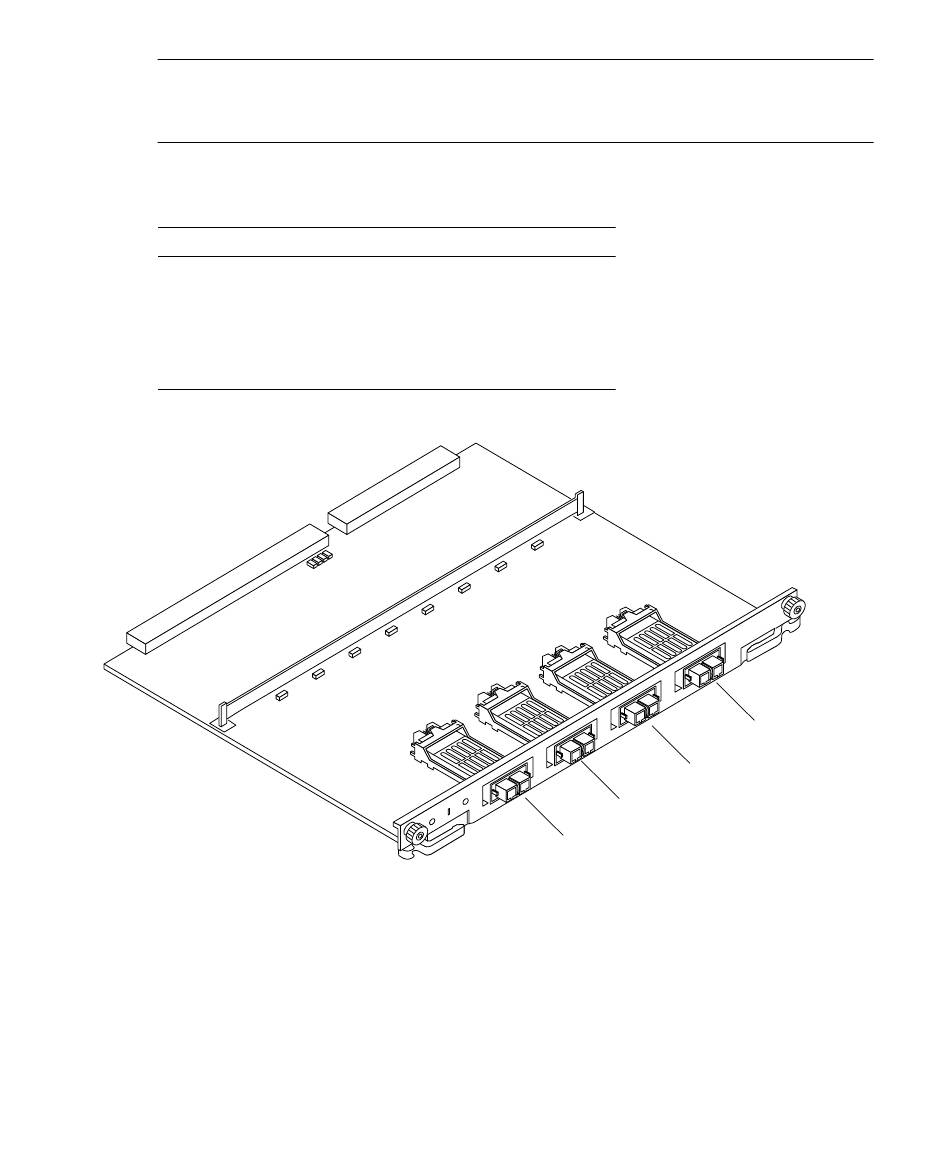

Interface Board GBIC Ports
and
TABLE 8-1 FIGURE 8-7
GBIC LB
GBIC UA
GBIC UB
.
GBIC LA
