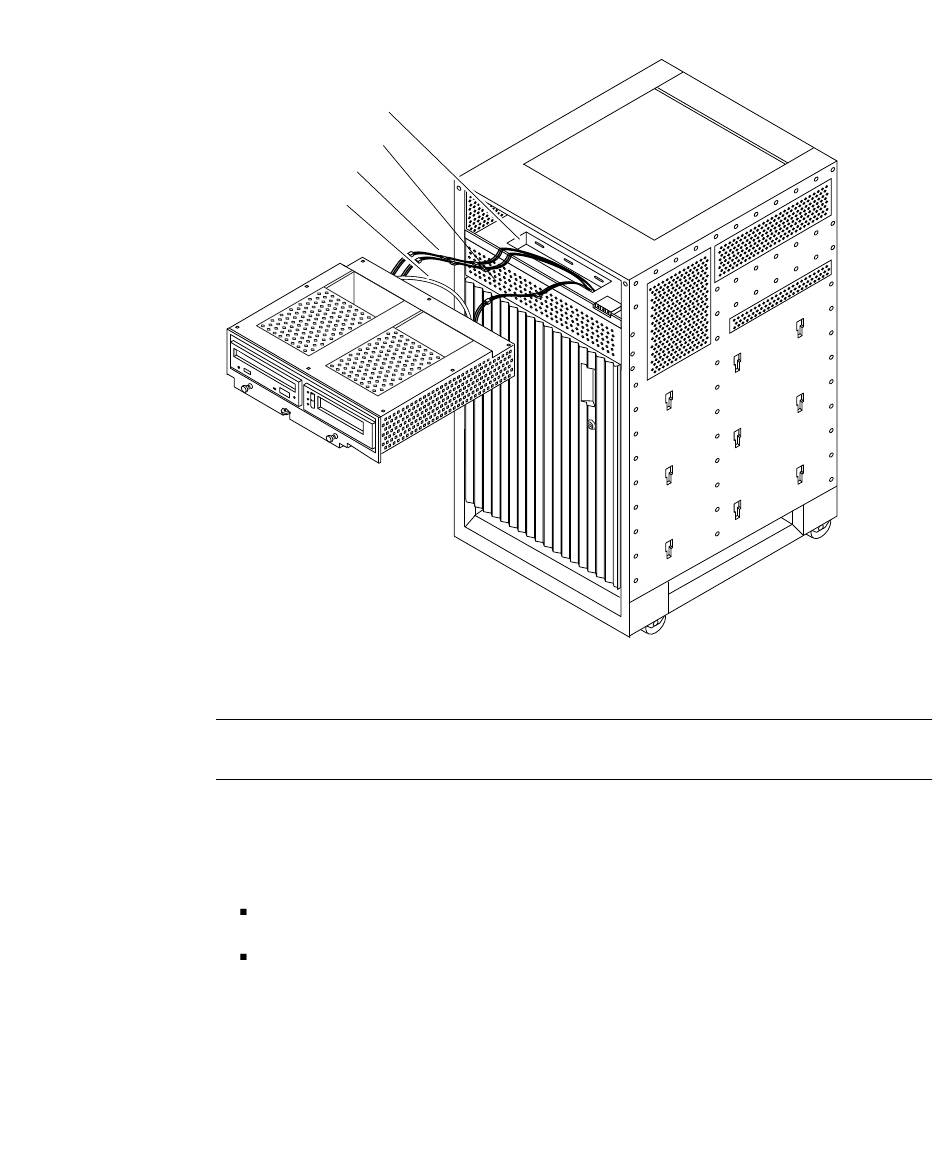

Figure E-6 Removing The Media Tray - Sun Microsystems Enterprise 3500 System Reference Manual

Bottom opening
Decorative panel
Power cables
SCSI cable
Removing the Media Tray
FIGURE E-6
Note – If you are not replacing the SCSI cables or the centerplane, you may simply
flip over the media tray and rest it on the top of the Enterprise 3500 system.
4. If you are replacing SCSI cables or the centerplane, disconnect the cables from the
back of the media tray.
5. Open the front door of the Enterprise 3500 system.
If you are replacing the centerplane, go to Section E.4.7 "Centerplane" on
page E-18.
Otherwise, continue with Step 6.
6. Remove the screws securing the front decorative (perforated) panel in the chassis.
There are eight screws on the top, seven screws on the bottom, and three screws on
each side of the front decorative panel.
7. Grasp the front decorative panel and set it aside.
