Figure 4-16 Removing Or Installing A Graphics (Upa) Card - Sun Microsystems Enterprise 3500 System Reference Manual

4.6.5.1 Removing a Graphics (UPA) Card
1. Use the procedures in Section 4.6.2 "Removing a Board," to remove the applicable
Graphics+ I/O board.
2. Locate the card (
3. Remove the two screws that secure the card to the I/O board front panel.
Save the screws for installation of a replacement card or a filler panel.
4. Unlock the card by pulling up the tips of the two standoffs.
See
FIGURE 4-11
5. Hold the card by the edges near the connector and gently rock the card back and
forth to loosen it from the socket.
You may need to remove the SBus cards next to this card in order to have enough
room to hold onto the graphics (UPA) card being removed.
Caution – The connector housing may break if the card is tilted too far.
6. Lift the card from the socket at an angle while guiding the face plate out from the
front panel opening (
FIGURE 4-16
).
FIGURE 4-15
on page 4-14.

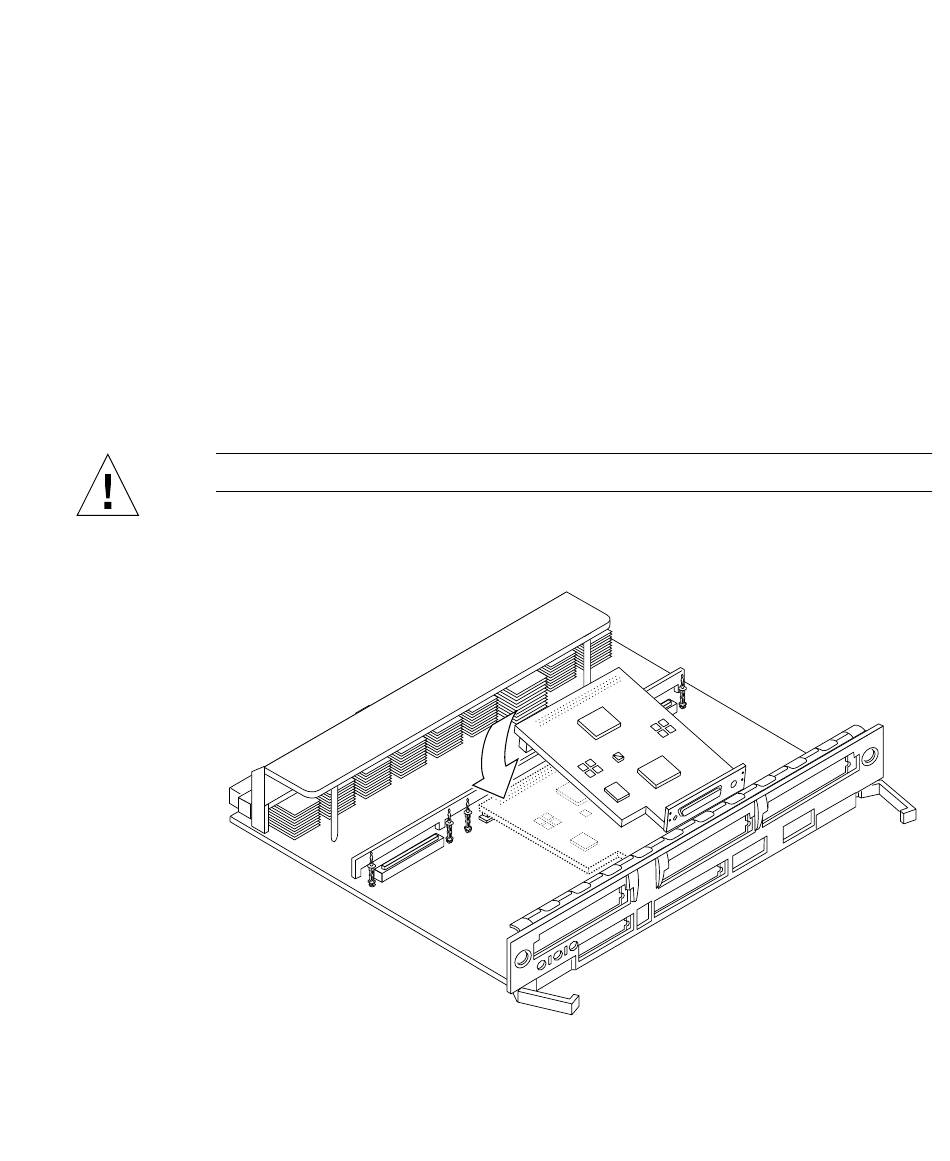

FIGURE 4-16
Removing or Installing a Graphics (UPA) Card
).
Chapter 4 I/O+ Boards and Components 4-19
