7. Place the SBus card in an antistatic bag.
8. If the SBus card is not immediately replaced, install a filler panel (part number
340-2305) on the I/O+ board back panel opening. To secure the filler panel, use the
screws that were removed in Step 3.
Caution – Be sure to install the filler panel right-side up. Installing it upside down
creates a gap at the top edge of the SBus slot opening that can impair system cooling
and regulatory compliance.
9. Replace the I/O+ board. Use the procedures in Section 4.6.3 "Installing a Board."
4.6.4.3 Installing an SBus Card
Removing Adapter and Card Retainer
Note – If the new SBus card does not have an adapter plate or the Link Integrity
Test feature, proceed to the installation procedures starting with Step 5..
1. Attach a wrist strap and take the SBus card out of the protective packaging. Place
the SBus card on an antistatic mat.
2. Remove the adapter bracket from the SBus card rear panel (
Remove the two screws securing the adapter to the card rear panel (the adapter
bracket and the screws are not needed for this installation).

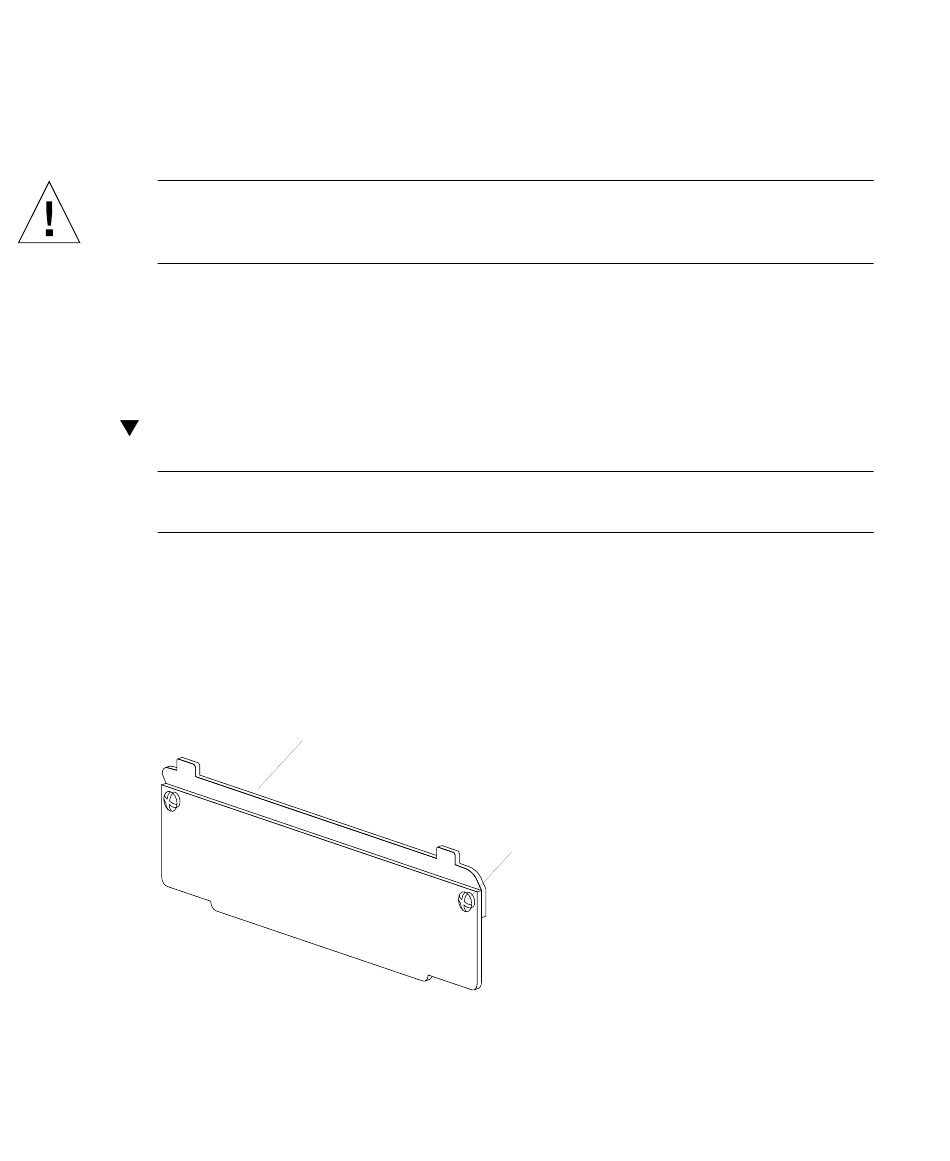

FIGURE 4-13
4-16 Sun Enterprise 3500 System Reference Manual • August 2001
Remove adapter
SBus Card Rear Panel With Adapter
FIGURE 4-13
Remove screws
).
