Corner screws

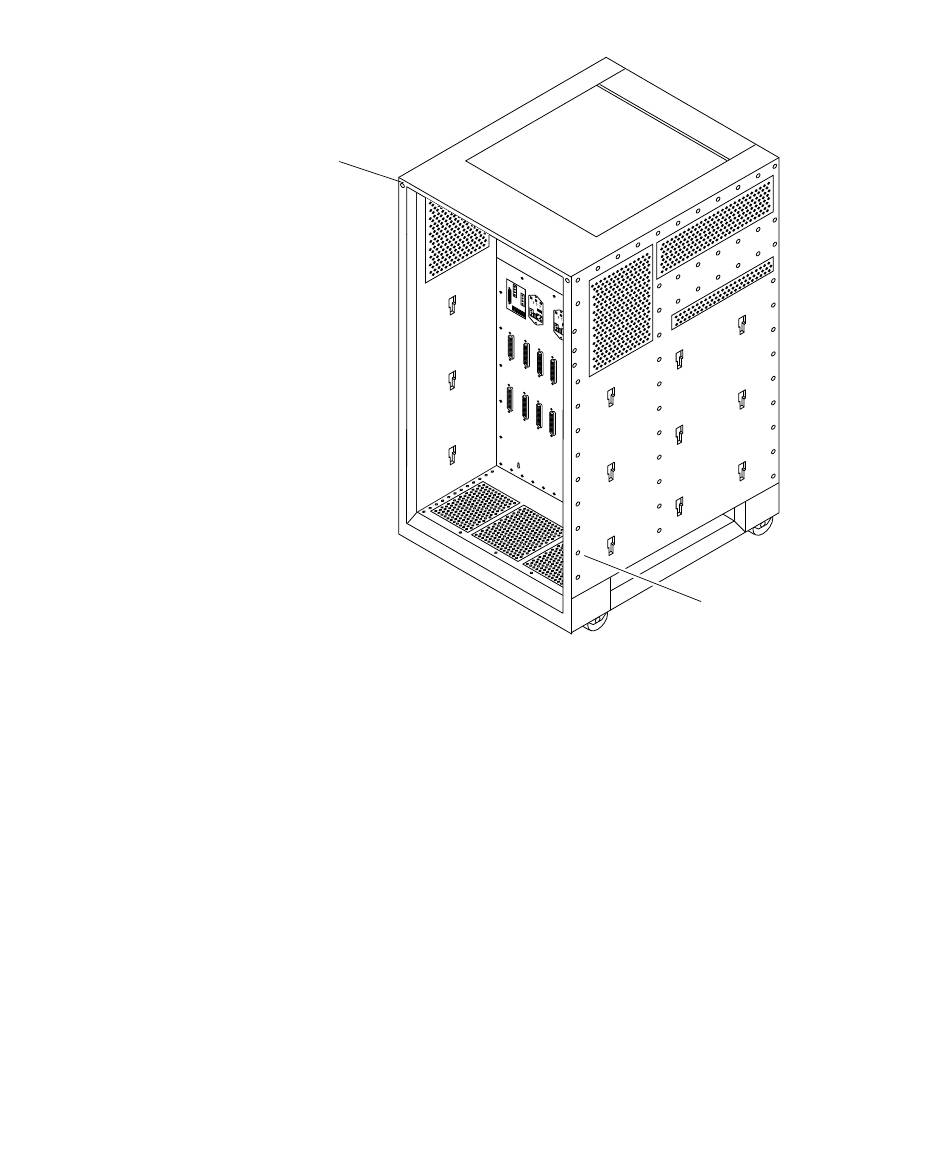

Enterprise 3500 System Without the Front Chassis
FIGURE E-11
8. Disconnect all the boards from the centerplane.
See Chapter 3 "CPU/Memory+ Boards and Components," Chapter 4 "I/O+ Boards
and Components," Chapter 5 "Clock+ Board," and Chapter 6 "Interface Board," for
information on removing the boards.
9. Disconnect the peripheral power supplies from the centerplane.
See Chapter 7 "Power Supplies," for information on removing the peripheral power
supplies.
10. Disconnect the PCMs from the centerplane.
See Chapter 7 "Power Supplies," for information on removing the PCMs.
11. If present, disconnect the auxiliary fan tray from the centerplane.
See Section E.3.1 "Removing the Auxiliary Fan Tray Assembly," for information on
removing the auxiliary fan tray.
12. If present, disconnect all the filler panels from the centerplane.
Appendix E Non-Chassis Field Replaceable Units (FRUs)
Side screws
