Figure 11-4 Front Panel Status Leds; Table 11-1 Led Status Indicators - Sun Microsystems Enterprise 3500 System Reference Manual

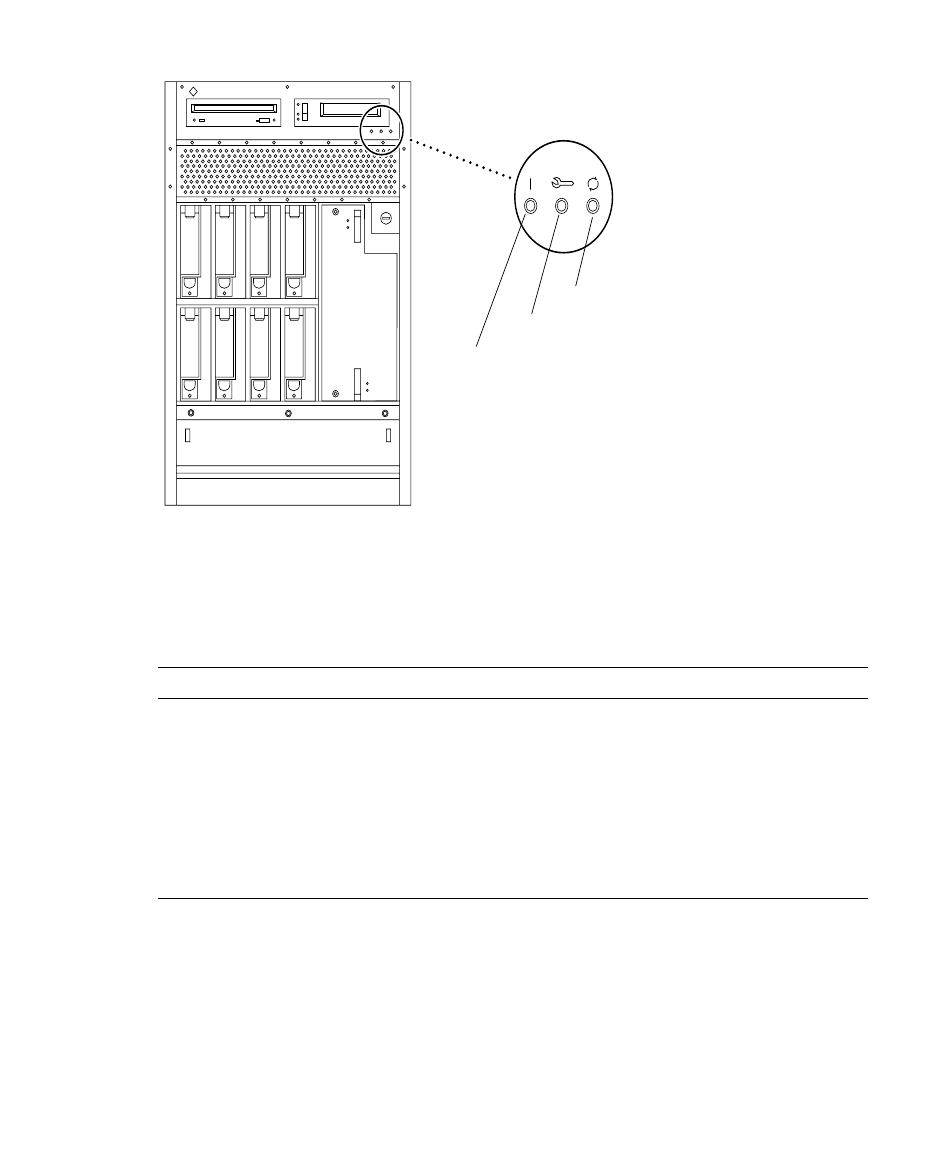

FIGURE 11-4
TABLE 11-1
TABLE 11-1
LED
Left LED (green)
Middle LED
(yellow)
Right LED (green)
11-6 Sun Enterprise 3500 System Reference Manual • August 2001
Front view
DC power (green)
Front Panel Status LEDs
summarizes the front panel LED status conditions during and after POST.
LED Status Indicators
Condition
On — DC power supply is receiving AC current.
Off — There is no DC power.
On flashing — (first 60 seconds) Self tests are running.
Off — (after self tests end) No hardware failures.
On — (after self tests end) Hardware failure was detected.
Off — (first 60 seconds) Self tests are running.
On flashing— (after self tests end) System is running.
Off — (after self tests end) System cannot run; repair is needed.
System running (green)
Fault (yellow)
