B.4.3

PCI+ I/O Board

The PCI+ I/O board (
Each connector can accommodate a PCI riser card.
Each riser card accommodates one PCI short card.
In addition, onboard devices on the PCI+ I/O board provide Fast Ethernet (10/100
Mbit) and Fast Wide SCSI interfacing.
PCI card

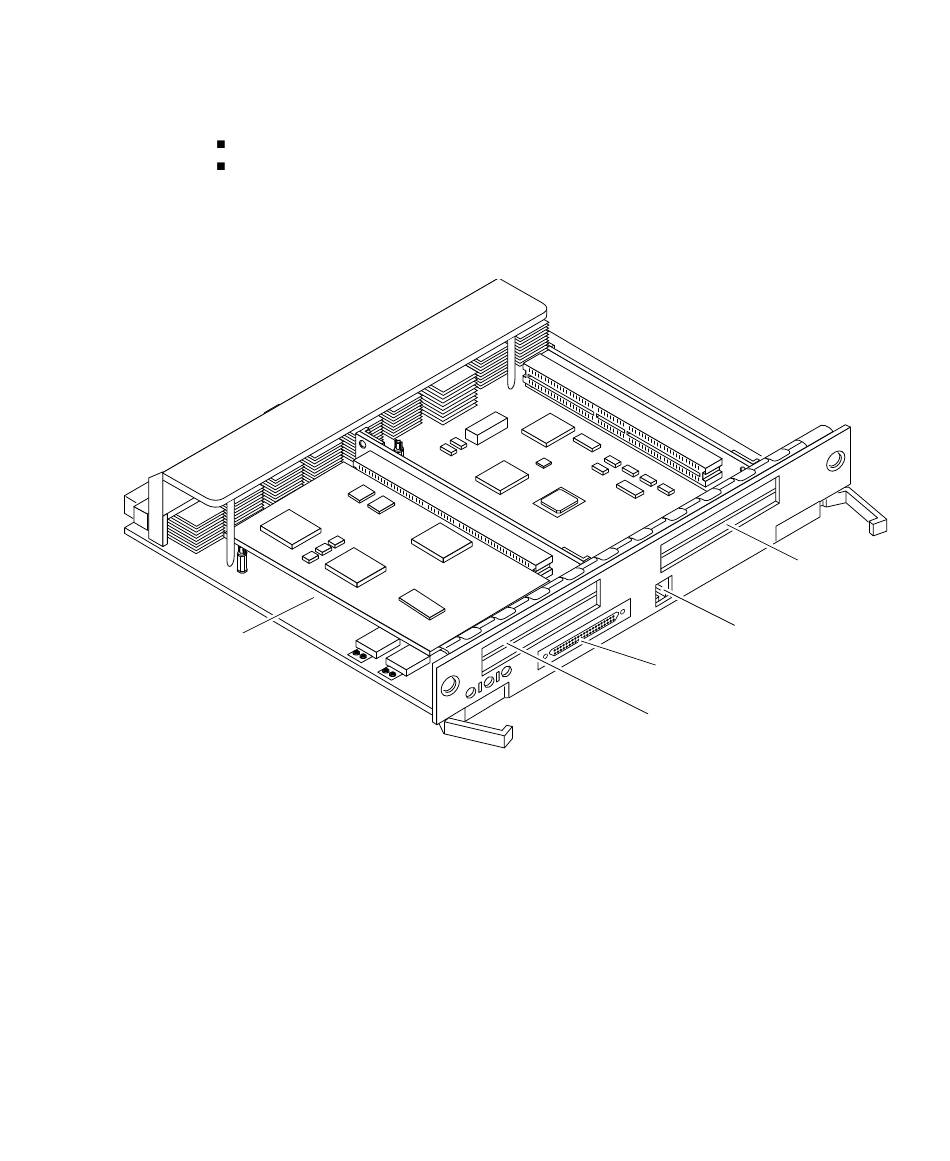

FIGURE B-8
The board contains five subsystems: IO(PCI Bus), Memory, Bus Interface, FireHose
Interface, and Clock Generation. Four of these subsystems: the IO(PCI Bus),
Memory, Bus Interface and internal board interface subsystems include ASICs. The
Clock subsystem distributes and generate clocks for the ASICs and PCI Bus
Interfaces on the board.
) has two PCI bus connectors:
FIGURE B-8
PCI+ I/O Board
Ethernet
SCSI
PCI slot 1
Appendix B Functional Description
PCI slot 0
B-11
