B.3.3

DIMMs

The CPU/Memory+ board has 16 slots for DIMMs, organized as two banks of eight
DIMMs.
B.3.3.1 Slot Locations
DIMMs must be installed in full banks of eight.
for bank 0 and bank 1.
FIGURE B-5
B.3.3.2 DIMM Selection
The JEDEC standard 3.3 volt DIMMs are available in 8, 32, or 128 Mbyte capacities.
All are 168-pin DIMMs.
Do not mix different capacities in a bank.
CPU slot
CPU slot

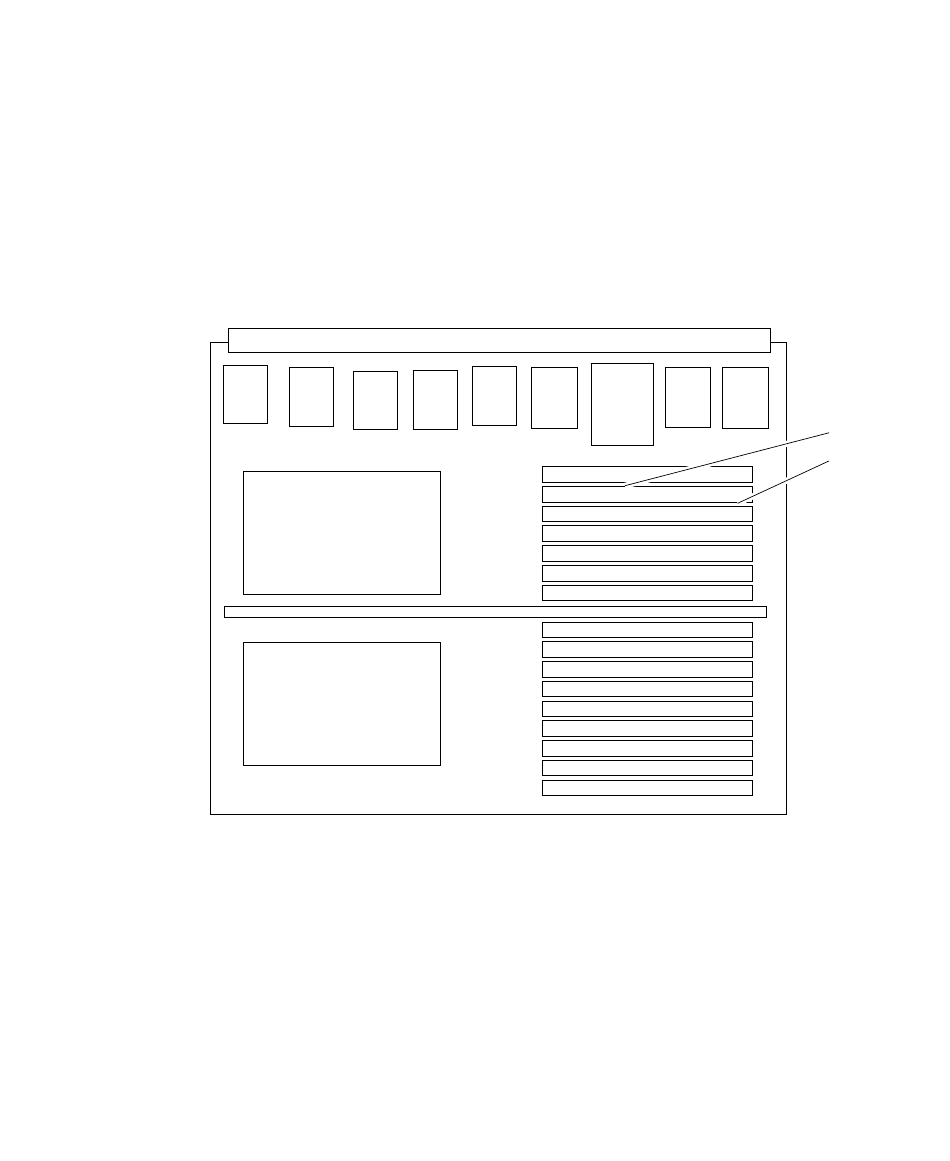

DIMM Slot Locations
shows the slot numbers
FIGURE B-5
B1 - J3801
B0 - J3800
B1 - J3701
B0 - J3700
B1 - J3601
B0 - J3600
B1 - J3501
B0 - J3500
B1 - J3401
B0 - J3400
B1 - J3301
B0 - J3300
B1 - J3201
B0 - J3200
B1 - J3101
B0 - J3100
Appendix B Functional Description
Key:
B1 = bank 1
B0 = bank 0
B-7
