Peripheral Power Supply Leds; Figure 7-1 Peripheral Power Supply/Ac Input; Figure 7-2 Auxiliary Peripheral Power Supply (Pps1) And Thermal Protection Module - Sun Microsystems Enterprise 3500 System Reference Manual

Both the PPS/AC (PPS 0) and auxiliary PPS (PPS 1) incorporate current sharing to
operate in redundant and parallel operations. The peripheral power supply/AC
input provides three precharge outputs (3.3V, 5V, and 12V) to enable hot-plug
installation of system boards or PCMs into an active centerplane.

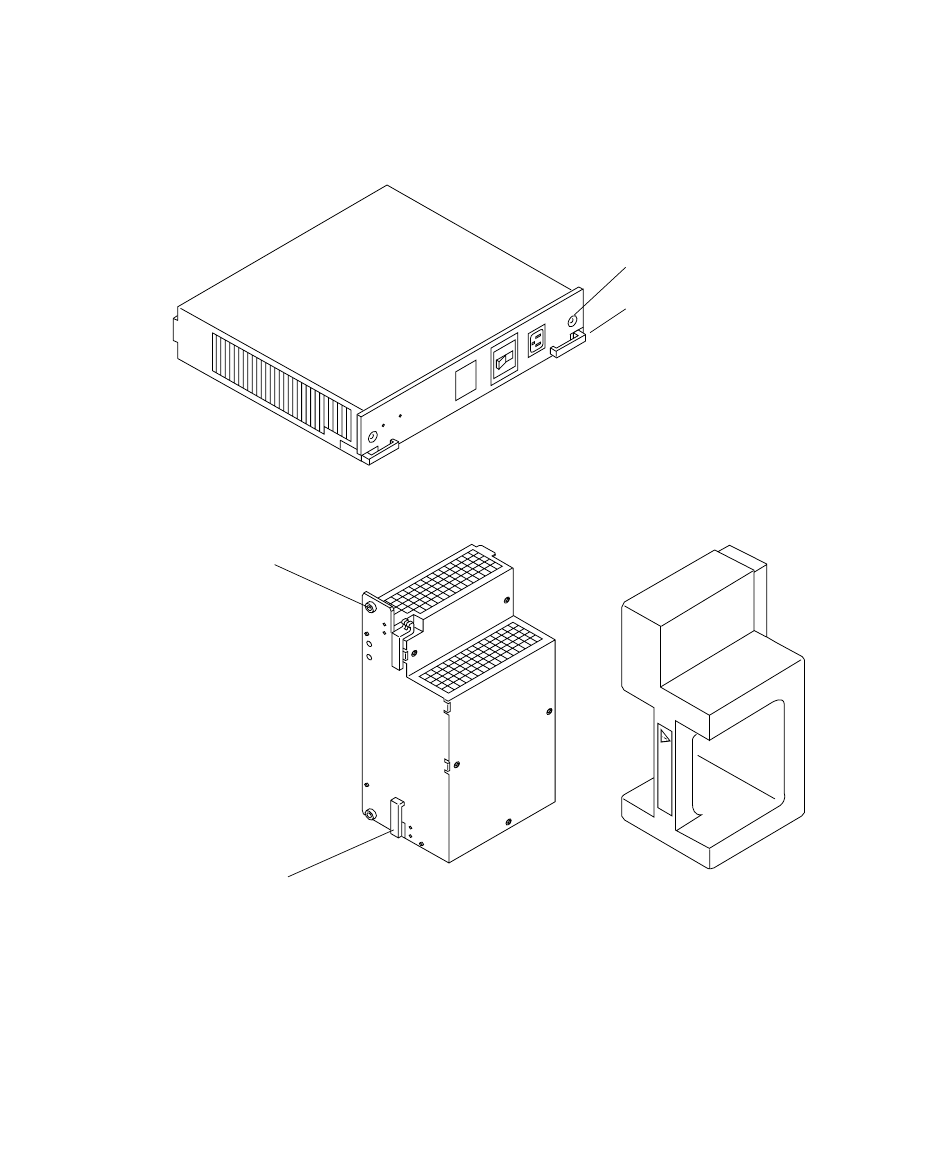

FIGURE 7-1
Captive screw
Extraction lever
FIGURE 7-2
7.4.1

Peripheral Power Supply LEDs

A green LED is lit on the power supply when it is operational. When a peripheral
power supply fails, a yellow LED is lit on the power supply.
7-4 Sun Enterprise 3500 System Reference Manual • August 2001
Peripheral Power Supply/AC Input
Auxiliary Peripheral Power Supply (PPS1) and Thermal Protection Module
Quarter-turn
access slot
Extraction lever
