Interroll Module belt conveyor SH 1100
Product identification
1

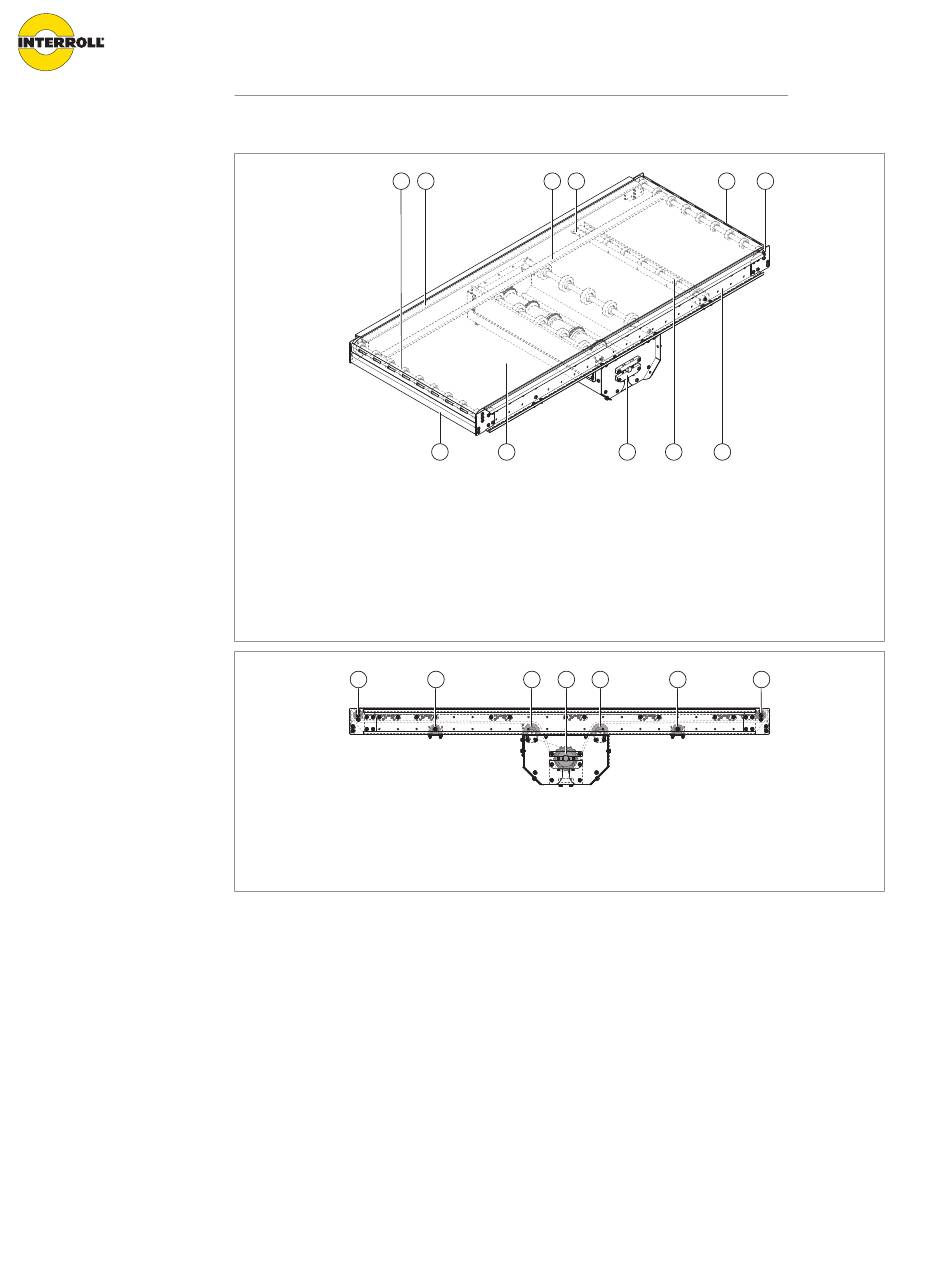

Straight module belt conveyor center drive SH 1100 CD with drum motor (top view)
1 Front idler axle
2 Outside sliding guide
3 Inside sliding guide
4 Return axle cover plate
5 End plate
1
Straight module belt conveyor center drive SH 1100 CD with drum motor (side view)
1 Front idler axle
2 Return axle
The module belt conveyor is used for the transport of goods that are not suitable for roller
tracks, and for all types of goods on inclines and declines.
The module belt conveyor is available with drum motor as center drive (CD) or as head
drive (HD).
A frequency inverter can be used as an option. Observe the installation guidelines of the
frequency inverter manufacturer (e.g. the frequency inverter from Getriebebau Nord).
2 3 4
5 9
6 Side frame
7 Return axle
8 Drive station
9 Module conveyor
2 3 4 3
3 Idler pulley
4 Drum motor
5 1
8 7 6
2 1
