Replacing the front idler
axle
68
Interroll Module belt conveyor SH 1100
Maintenance and repair
1 2

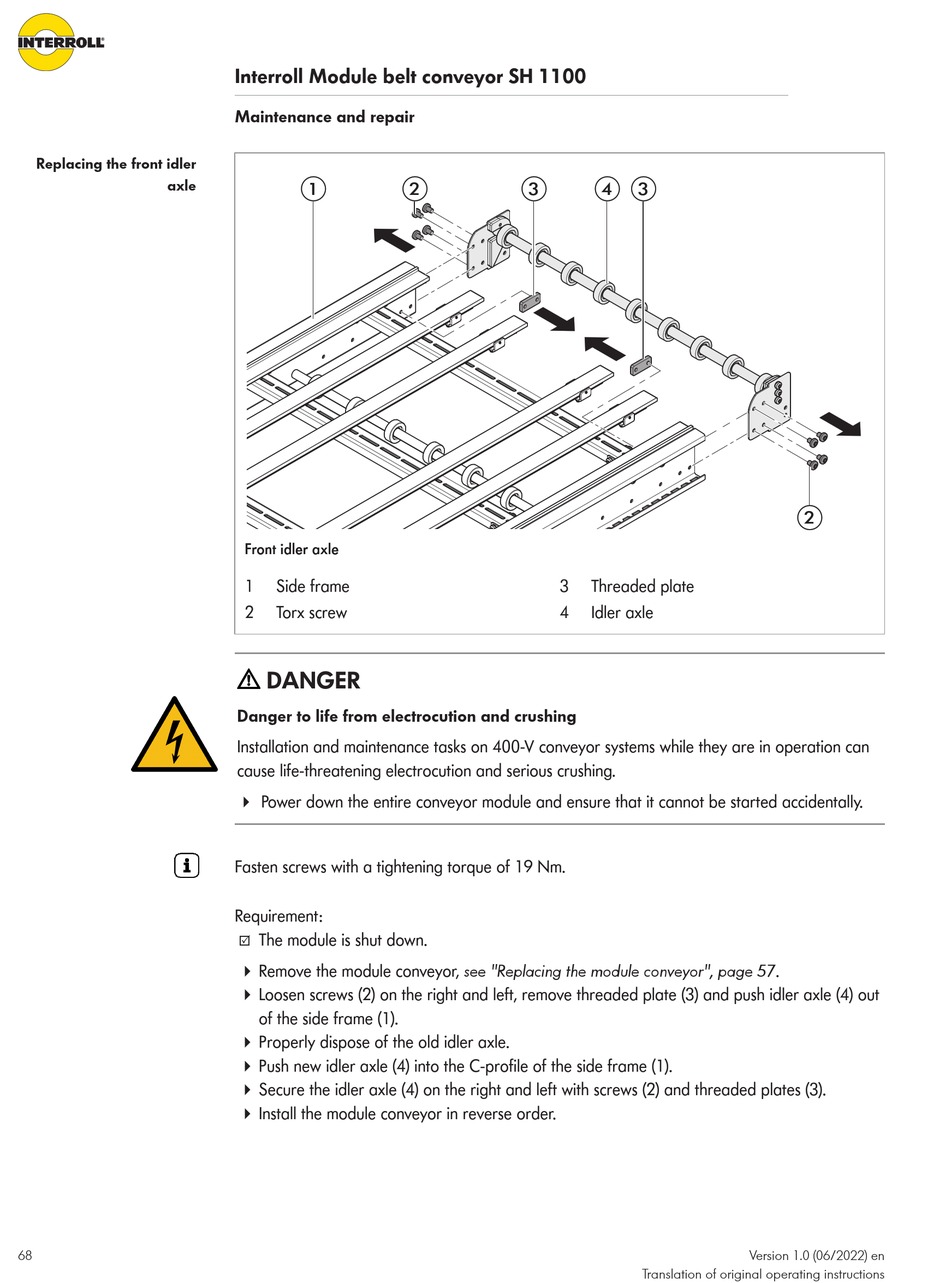

Front idler axle
1 Side frame
2 Torx screw
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
Fasten screws with a tightening torque of 19 Nm.
Requirement:
The module is shut down.
R
4 Remove the module conveyor, see "Replacing the module conveyor", page 57.
4 Loosen screws (2) on the right and left, remove threaded plate (3) and push idler axle (4) out
of the side frame (1).
4 Properly dispose of the old idler axle.
4 Push new idler axle (4) into the C-profile of the side frame (1).
4 Secure the idler axle (4) on the right and left with screws (2) and threaded plates (3).
4 Install the module conveyor in reverse order.
3 4 3
3 Threaded plate
4 Idler axle
