Spare parts list of
SH 1100 with head drive
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Spare and wear parts
S = spare part, W = wear part, T = tool

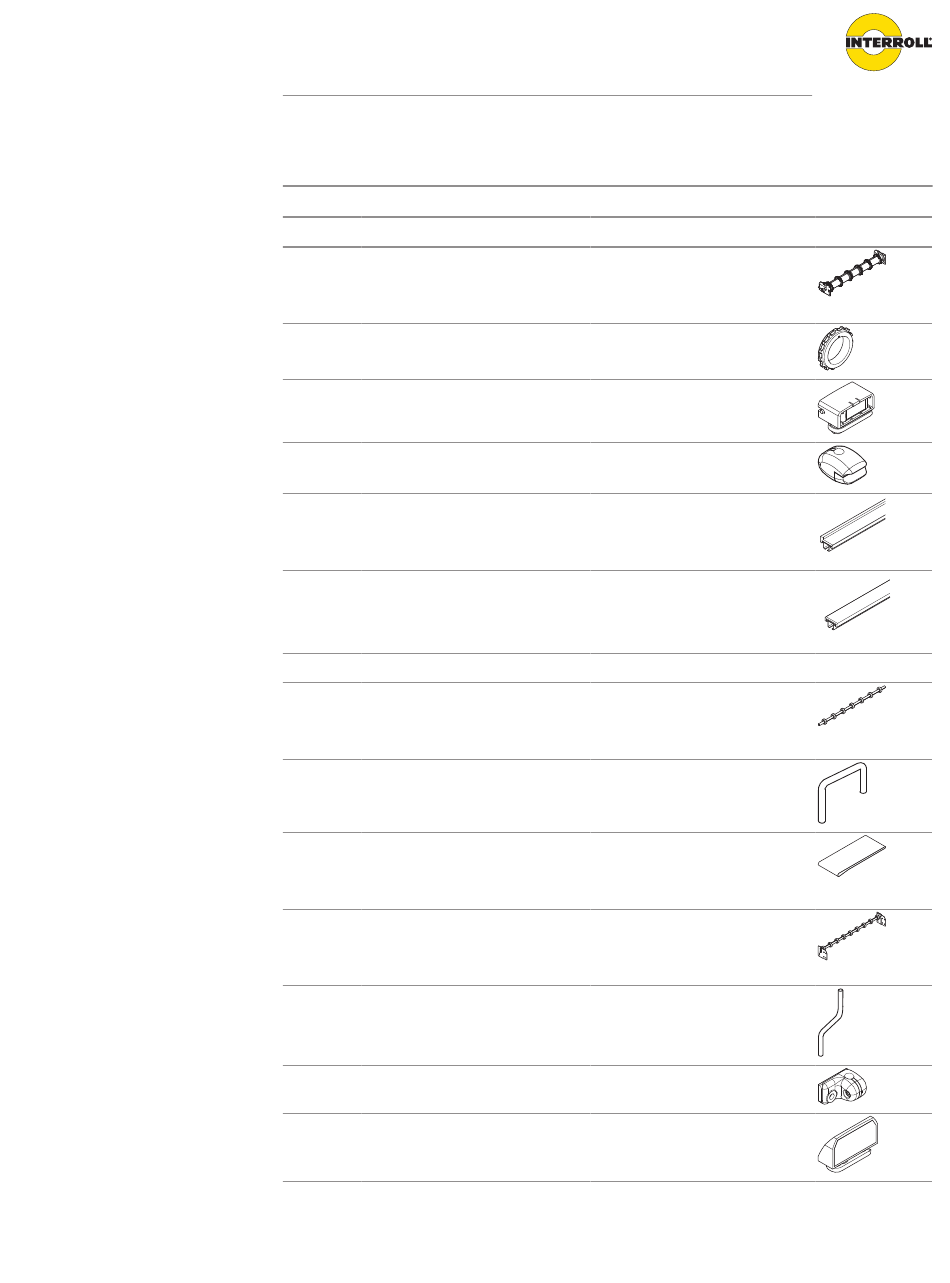

Type: 1100 head drive ( S, M, L)
Item No.: Designation
1 Drive motor DM0080 (HD)
2 Sprocket
3 Photo cell incl. housing, fastening
clip and cable
4 Side guide bracket
5 Outside sliding guide (incl.
fastening profiles and securing
blocks)
6 Inside sliding guide (incl.
fastening profiles and securing
blocks)
7 Side guide
8 Return axle
9 Mounting bracket U
10 Module conveyor
11 Front idler axle
12 Mounting bracket Z
13 Universal support
14 Reflector incl. reflective tape and
fastening clip
Material number S/W/T
S: 63180128 S
M: 63180131
L: 63180134
63170835 S
63104071 S
63172677 S
63170821 S
63170820 S
1129435 S
S: 63170990 S
M: 63170937
L: 63170818
63172696 S
S: 1129573 S
M: 1129574
L: 1129575
S: 63180130 S
M: 63180133
L: 63170922
63172672 S
63172654 S
64000905 S
77
