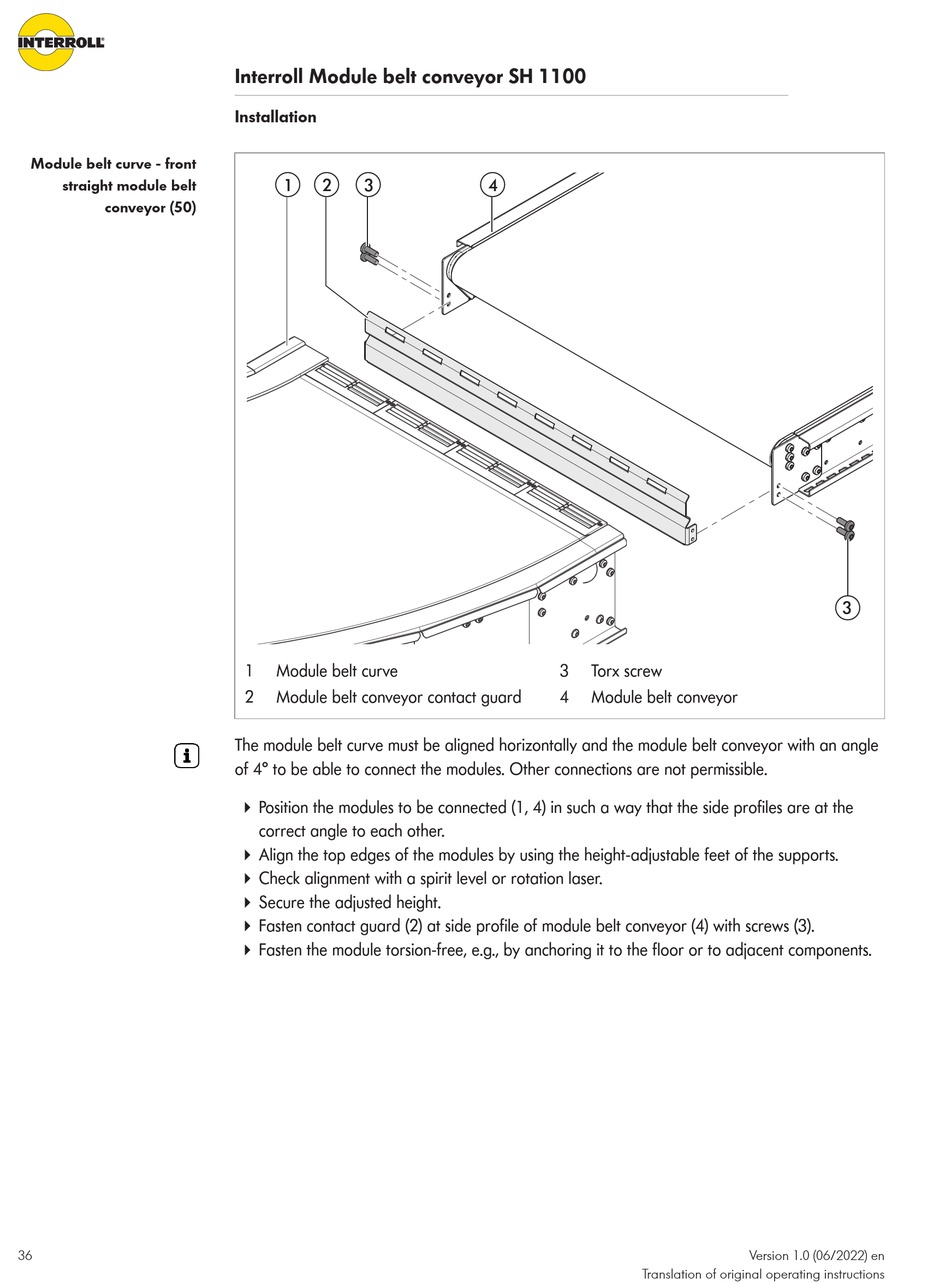

Module belt curve - front
straight module belt
conveyor (50)
36
Interroll Module belt conveyor SH 1100
Installation
1 2 3
1 Module belt curve
2 Module belt conveyor contact guard
The module belt curve must be aligned horizontally and the module belt conveyor with an angle
of 4° to be able to connect the modules. Other connections are not permissible.
4 Position the modules to be connected (1, 4) in such a way that the side profiles are at the
correct angle to each other.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Fasten contact guard (2) at side profile of module belt conveyor (4) with screws (3).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
4
3 Torx screw
4 Module belt conveyor
