Removing/installing
contact guard and covers
at center drive station
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Maintenance and repair

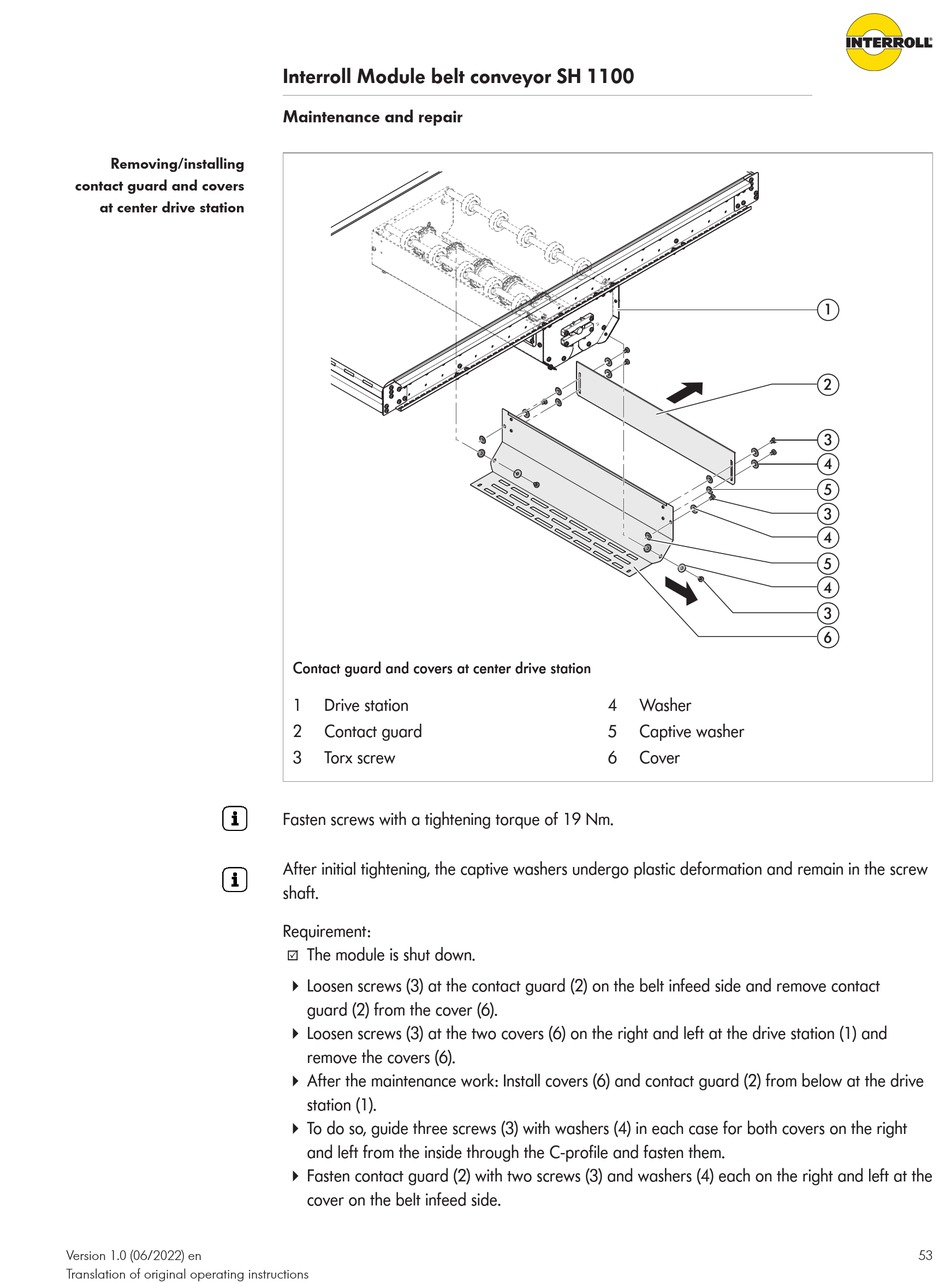

Contact guard and covers at center drive station
1 Drive station
2 Contact guard
3 Torx screw
Fasten screws with a tightening torque of 19 Nm.
After initial tightening, the captive washers undergo plastic deformation and remain in the screw
shaft.
Requirement:
The module is shut down.
R
4 Loosen screws (3) at the contact guard (2) on the belt infeed side and remove contact
guard (2) from the cover (6).
4 Loosen screws (3) at the two covers (6) on the right and left at the drive station (1) and
remove the covers (6).
4 After the maintenance work: Install covers (6) and contact guard (2) from below at the drive
station (1).
4 To do so, guide three screws (3) with washers (4) in each case for both covers on the right
and left from the inside through the C-profile and fasten them.
4 Fasten contact guard (2) with two screws (3) and washers (4) each on the right and left at the
cover on the belt infeed side.
4 Washer
5 Captive washer
6 Cover
1
2
3
4
5
3
4
5
4
3
6
