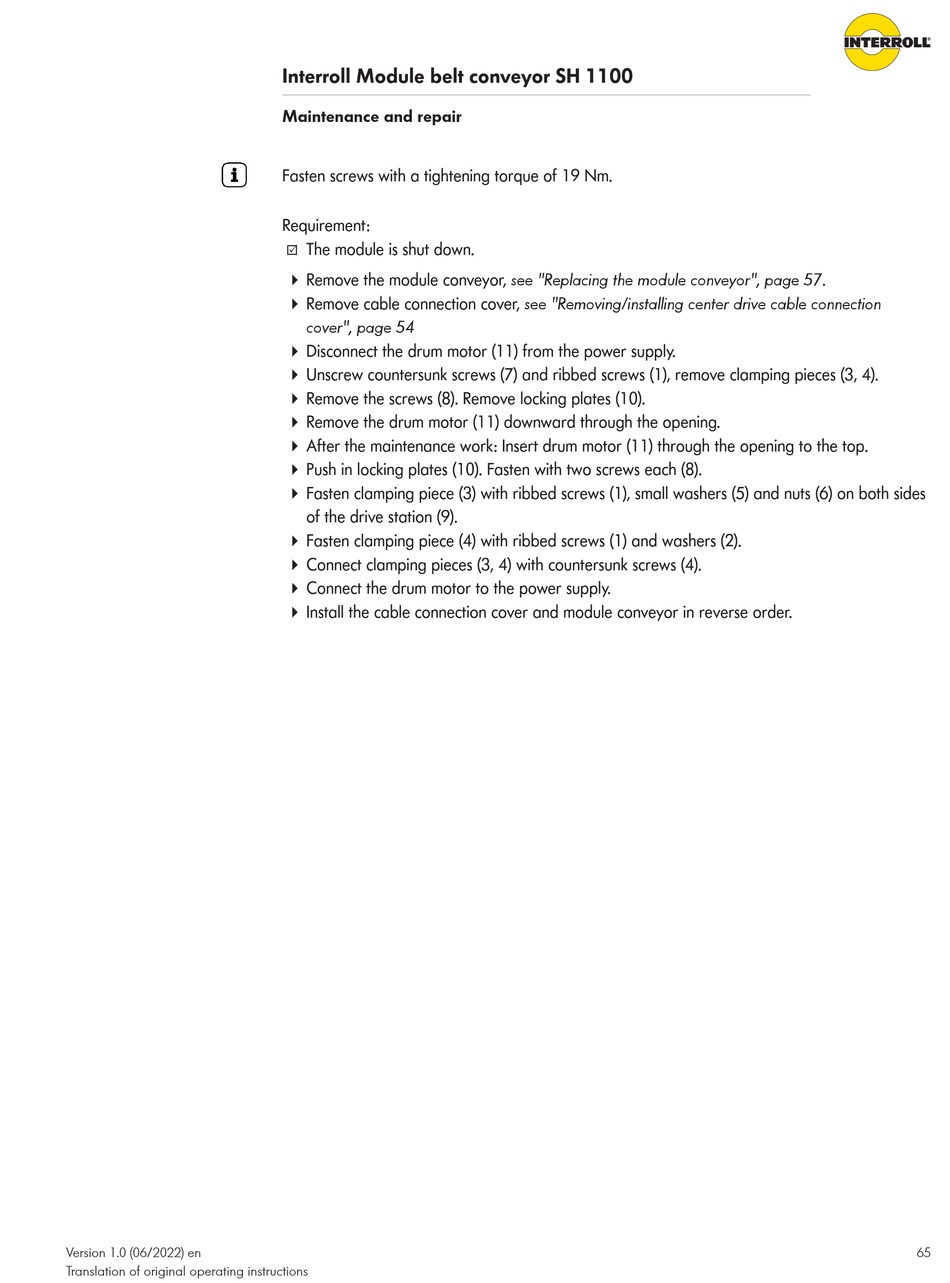

Interroll Module belt conveyor SH 1100
Maintenance and repair
Fasten screws with a tightening torque of 19 Nm.
Requirement:
The module is shut down.
R
4 Remove the module conveyor, see "Replacing the module conveyor", page 57.
4 Remove cable connection cover, see "Removing/installing center drive cable connection
cover", page 54
4 Disconnect the drum motor (11) from the power supply.
4 Unscrew countersunk screws (7) and ribbed screws (1), remove clamping pieces (3, 4).
4 Remove the screws (8). Remove locking plates (10).
4 Remove the drum motor (11) downward through the opening.
4 After the maintenance work: Insert drum motor (11) through the opening to the top.
4 Push in locking plates (10). Fasten with two screws each (8).
4 Fasten clamping piece (3) with ribbed screws (1), small washers (5) and nuts (6) on both sides
of the drive station (9).
4 Fasten clamping piece (4) with ribbed screws (1) and washers (2).
4 Connect clamping pieces (3, 4) with countersunk screws (4).
4 Connect the drum motor to the power supply.
4 Install the cable connection cover and module conveyor in reverse order.
